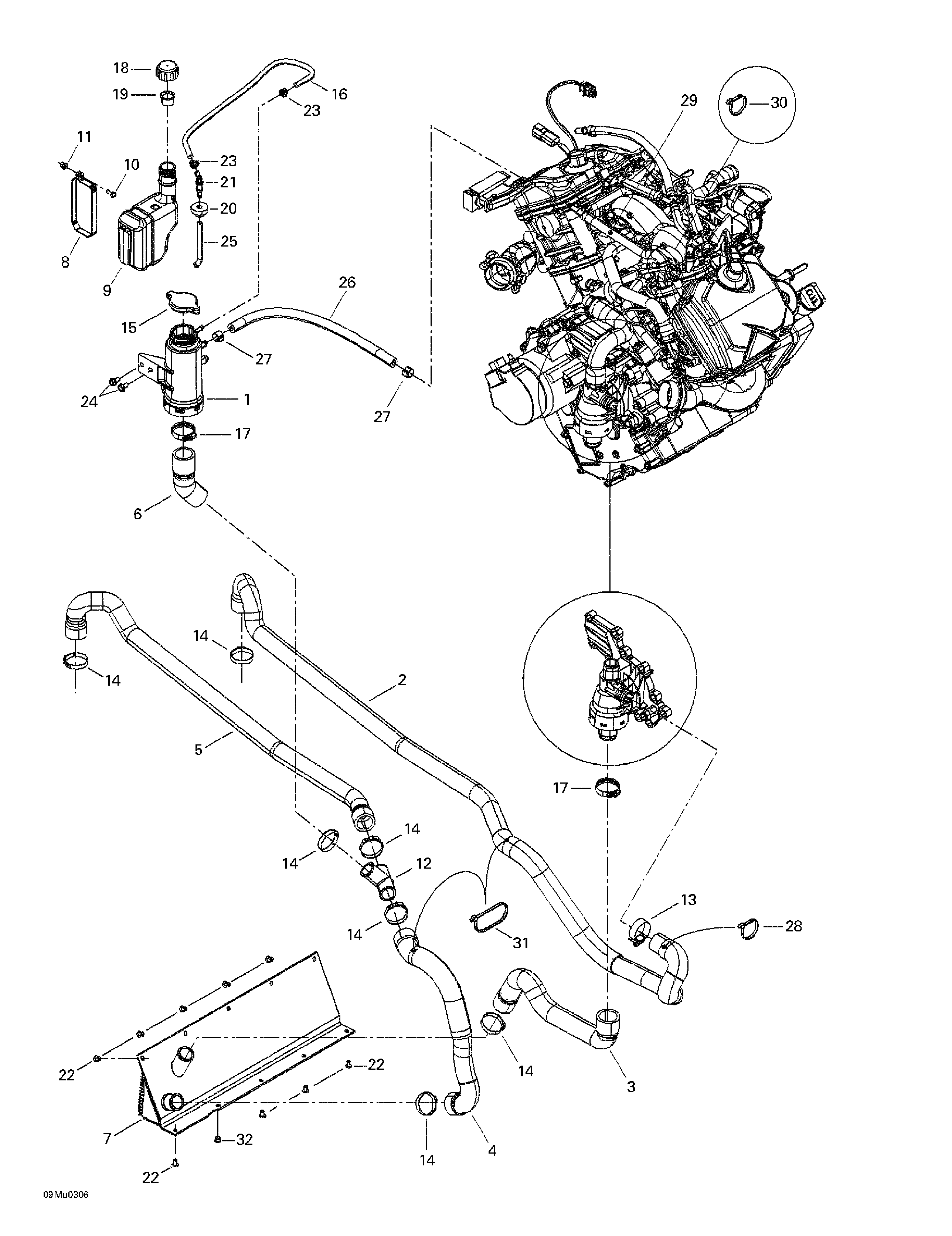

01- Cooling System для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1509000176 Filler neck ass'yFiller neck ass'y
-
2509000103 Outlet hoseOutlet hose
-
3509000104 Inlet hoseInlet hose
-
4509000193 Front hose radiatorFront hose radiator
-
5509000105 Rear hose radiatorRear hose radiator
-
6509000195 Tank hoseTank hose
-
7509000146 Front radiatorFront radiator
-
8509000191 Coolant tank supportCoolant tank support
-
9709200099 Coolant tankCoolant tank
-
10207151244 Hex. screw M5 x 12Hex. screw M5 x 12
-
11233251414 Elastic flanged nut M5Elastic flanged nut M5
-
12509000219 T-fittingT-fitting
-
13408800400 Tridon gear clampTridon gear clamp
-
14509000045 Oetiker gear clampOetiker gear clamp
-
15509000180 Pressure capPressure cap
-
16415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
17293650045 Tridon gear clampTridon gear clamp
-
18709200009 Tank capTank cap
-
19709200034 Unsplash capUnsplash cap
-
20570135100 GrommetGrommet
-
21414580600 Elbow Male ConnectorElbow Male Connector
-
22390402200 Pop rivet 3/16''Pop rivet 3/16''
-
23414554800 Spring clampSpring clamp
-
24210261280 Hex. forming screw M6 x 12Hex. forming screw M6 x 12
-
25415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
26509000093 Hose 8 mmHose 8 mm
-
27293650125 Oetiker gear clampOetiker gear clamp
-
28414115200 Tie-rapTie-rap
-
29415080000 Tubing 16 mmTubing 16 mm
-
30293750002 Tie-rap 130 mmTie-rap 130 mm
-
31293750008 Tie-rap 350 mmTie-rap 350 mm
-
32390402400 Pop rivet 3/16''Pop rivet 3/16''
