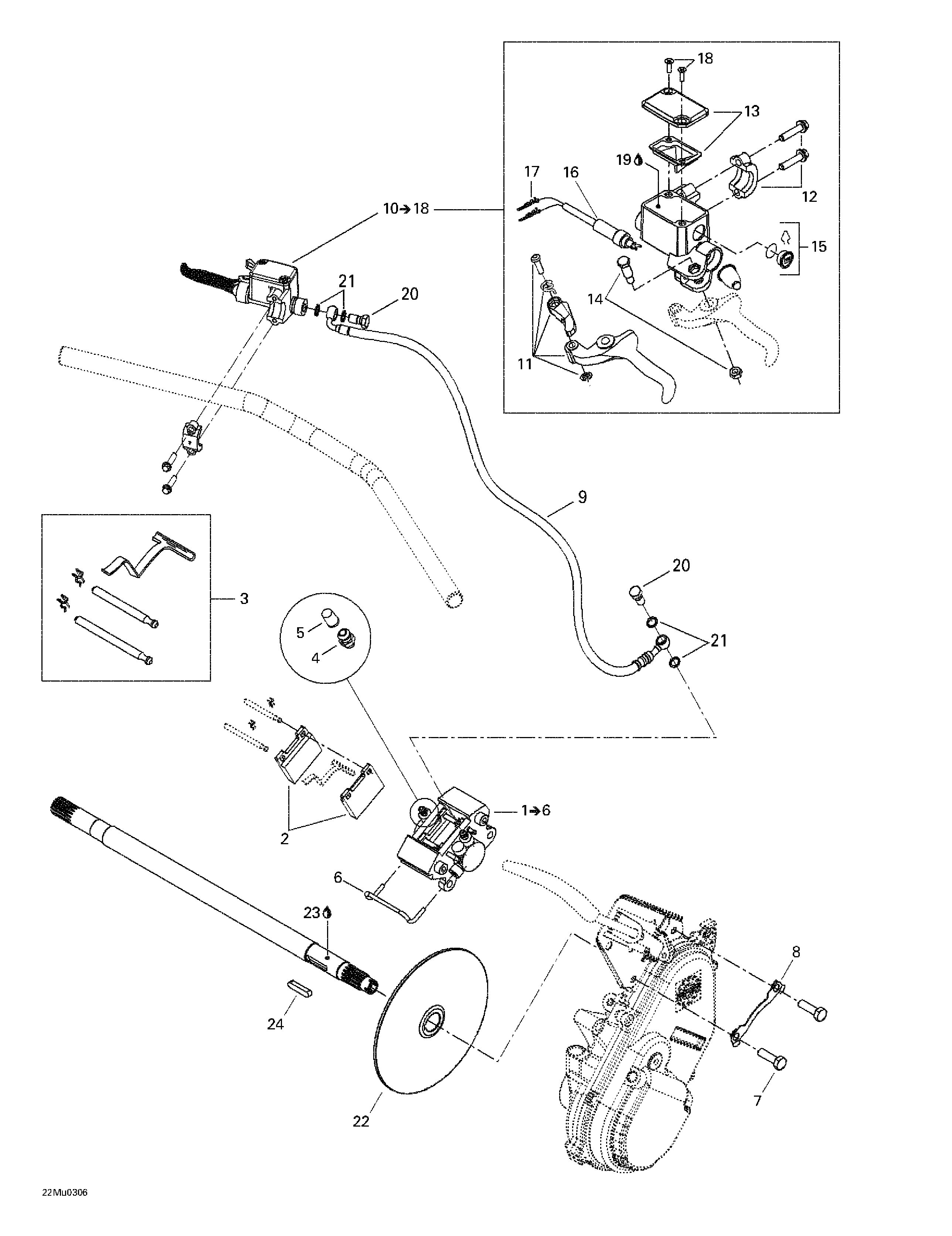

06- Hydraulic Brake для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1507032349 Caliper. Includes 1 - 6.Caliper. Includes 1 - 6.
-
2415053600 Brake lining kitBrake lining kit
-
3414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
4414989800 Bleeder screwBleeder screw
-
5414989700 BootBoot
-
6414989900 Rigid tubingRigid tubing
-
7207103544 Hex. screw M10 x 35Hex. screw M10 x 35
-
8507032316 Locking tabLocking tab
-
9507032237 HoseHose
-
10507032362 Master cylinder. Includes 10 - 18.Master cylinder. Includes 10 - 18.
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp ass'yClamp ass'y
-
13415029900 CapCap
-
14415030000 Pin ass'yPin ass'y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male terminalMale terminal
-
18216141260 Screw M4 x 12Screw M4 x 12
-
19293600063 Brake fluid, SRF (dot 4)Brake fluid, SRF (dot 4)
-
19293600062 Brake fluid, GTLMA (dot 4),. 12 x 354 mlBrake fluid, GTLMA (dot 4),. 12 x 354 ml
-
20414920500 Banjo boltBanjo bolt
-
21414920600 WasherWasher
-
22507031300 Brake diskBrake disk
-
23293800070 Loctite 767, antiseize lubricant, 8 ozLoctite 767, antiseize lubricant, 8 oz
-
24507021300 KeyKey
