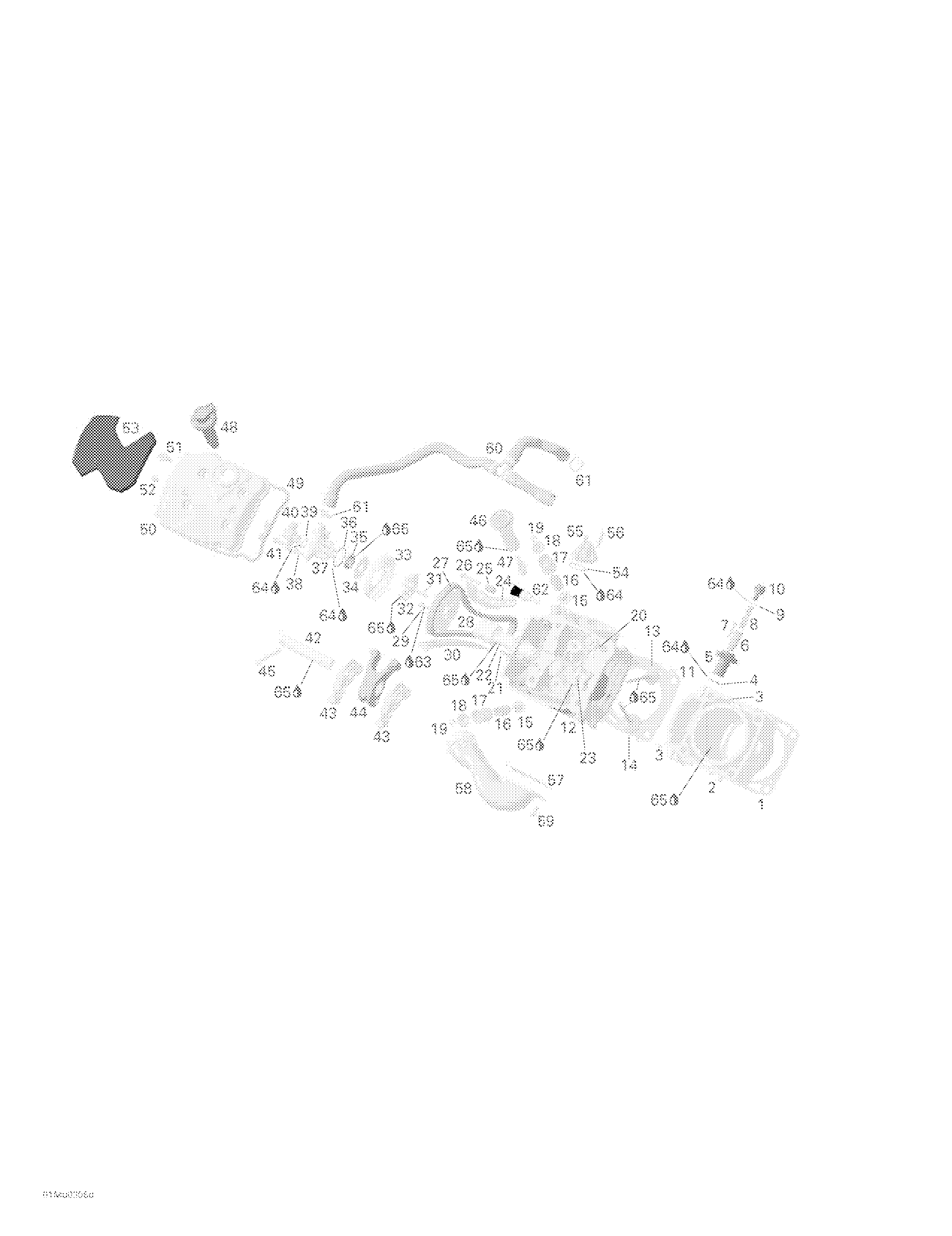

01- Cylinder, Front Side Cylinder Head для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1420630080 GasketGasket
-
2420923947 Cylinder ass'y. Includes 2 - 3.Cylinder ass'y. Includes 2 - 3.
-
3420929650 Drive pin 5 x 10Drive pin 5 x 10
-
4420430370 O-ringO-ring
-
5420236510 Chain tensioner housingChain tensioner housing
-
6420236520 Chain tensioner plungerChain tensioner plunger
-
7420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
8420238120 SpringSpring
-
9420250890 O-ringO-ring
-
10420641150 Plug screw M18 x 1Plug screw M18 x 1
-
11420950660 GasketGasket
-
12420613475 Cylinder head ass'yCylinder head ass'y
-
13420254027 Exhaust valve 31 mmExhaust valve 31 mm
-
14420254290 Intake valve 38 mmIntake valve 38 mm
-
15420630200 Valve stem sealValve stem seal
-
16420838280 Valve spring insideValve spring inside
-
17420238180 Valve springValve spring
-
18420254280 Valve spring retainerValve spring retainer
-
19420253645 Valve cotterValve cotter
-
20420641020 Torx screw M11 x 215Torx screw M11 x 215
-
21420440612 Hex. flanged screw M6 x 105Hex. flanged screw M6 x 105
-
22420837575 Camshaft frontCamshaft front
-
23420851692 Camshaft guideCamshaft guide
-
24420236540 Chain tension guideChain tension guide
-
25420247100 Distance sleeveDistance sleeve
-
26420440272 Hex. flanged screw M6 x 35Hex. flanged screw M6 x 35
-
27420297957 Camshaft chainCamshaft chain
-
28420254301 Camshaft sprocket (38 teeth)Camshaft sprocket (38 teeth)
-
29420841339 Socket head screw M6 x 12Socket head screw M6 x 12
-
30420236500 Chain guideChain guide
-
31420220790 Deko shaftDeko shaft
-
32420231064 Centrifugal weight ass'yCentrifugal weight ass'y
-
33420660032 CoverCover
-
34420627492 Thrust washerThrust washer
-
35420630125 V-ringV-ring
-
36420950870 O-ringO-ring
-
37420610272 Camshaft coverCamshaft cover
-
38420440162 Hex. flanged screw M6 x 16Hex. flanged screw M6 x 16
-
39420430220 O-ringO-ring
-
40420660275 Connecting coverConnecting cover
-
41420440162 Hex. flanged screw M6 x 16Hex. flanged screw M6 x 16
-
42420854599 Rockerarmshaft ass'yRockerarmshaft ass'y
-
43420254326 Rockerarm ass'y (exhaust)Rockerarm ass'y (exhaust)
-
44420254315 Rockerarm ass'y (inlet)Rockerarm ass'y (inlet)
-
45420641080 Torx screw M8 x 72Torx screw M8 x 72
-
46420851750 Spark plug pipeSpark plug pipe
-
47707000246 Spark plug NGK DCP-R8ESpark plug NGK DCP-R8E
-
48420664020 Stick coilStick coil
-
49420630070 Profile sealing ringProfile sealing ring
-
50420610185 Valve coverValve cover
-
51420440307 Hex. flanged screw M6 x 30Hex. flanged screw M6 x 30
-
52420641483 Torx screw M6 x 10Torx screw M6 x 10
-
53420660201 Valve coverValve cover
-
54420950890 O-ringO-ring
-
55420811700 Connecting coverConnecting cover
-
56420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
57420950680 GasketGasket
-
58420973780 Exhaust manifold ass'yExhaust manifold ass'y
-
59420440162 Hex. flanged screw M6 x 16Hex. flanged screw M6 x 16
-
60420660710 Molded hose ass'yMolded hose ass'y
-
61420853153 ClampClamp
-
62420222425 Temperature sensorTemperature sensor
-
63293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
64293550014 Grease, super lubeGrease, super lube
-
65293600054 Engine oil 4 strokes, 0W40, 12 x 1 literEngine oil 4 strokes, 0W40, 12 x 1 liter
