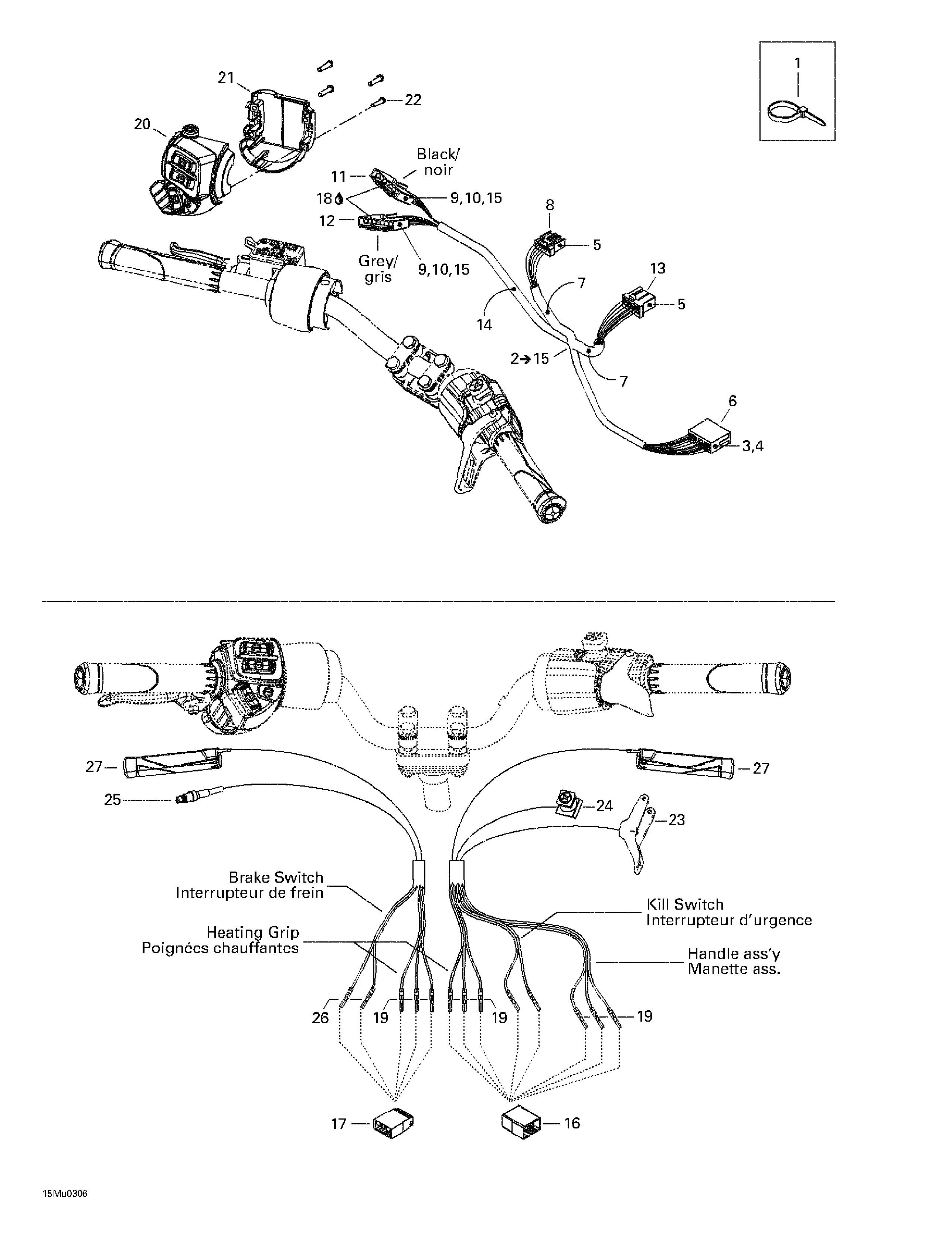

10- Steering Harness для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1293750002 Locking Tie 142 mmLocking Tie 142 mm
-
1293750009 Tie rap 160 mmTie rap 160 mm
-
1414115200 Tie rap 180 mmTie rap 180 mm
-
1293750008 Tie rap 350 mmTie rap 350 mm
-
2515175844 Wiring harness. Includes 2 - 15.Wiring harness. Includes 2 - 15.
-
3515175232 Male terminalMale terminal
-
4515175273 Male terminalMale terminal
-
5515175231 Female terminalFemale terminal
-
6515175352 Male terminal housing (13 circuits)Male terminal housing (13 circuits)
-
7415079900 Tubing 10 mmTubing 10 mm
-
8515175543 Female terminal housing (6 circuits)Female terminal housing (6 circuits)
-
9515175808 Female terminalFemale terminal
-
10515175809 Lock (8 circuits)Lock (8 circuits)
-
11515175807 Female terminal housing (8 circuits)Female terminal housing (8 circuits)
-
12515175810 Female terminal housing (8 circuits)Female terminal housing (8 circuits)
-
13515175819 Female terminal housing (8 circuits)Female terminal housing (8 circuits)
-
14515175830 Low temperature tubing 1/2''Low temperature tubing 1/2''
-
15515175941 Female terminalFemale terminal
-
16515175817 Male terminal housing (8 circuits)Male terminal housing (8 circuits)
-
17515175662 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
18293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
19515175232 Male terminalMale terminal
-
20515175772 L.H. housing switchL.H. housing switch
-
21515175926 Housing switch plateHousing switch plate
-
22250000100 ScrewScrew
-
23512059624 Handle ass'yHandle ass'y
-
24512059751 Kill switchKill switch
-
25507032366 MicroswitchMicroswitch
-
26515175232 Male terminalMale terminal
-
27506151714 Handle gripHandle grip
