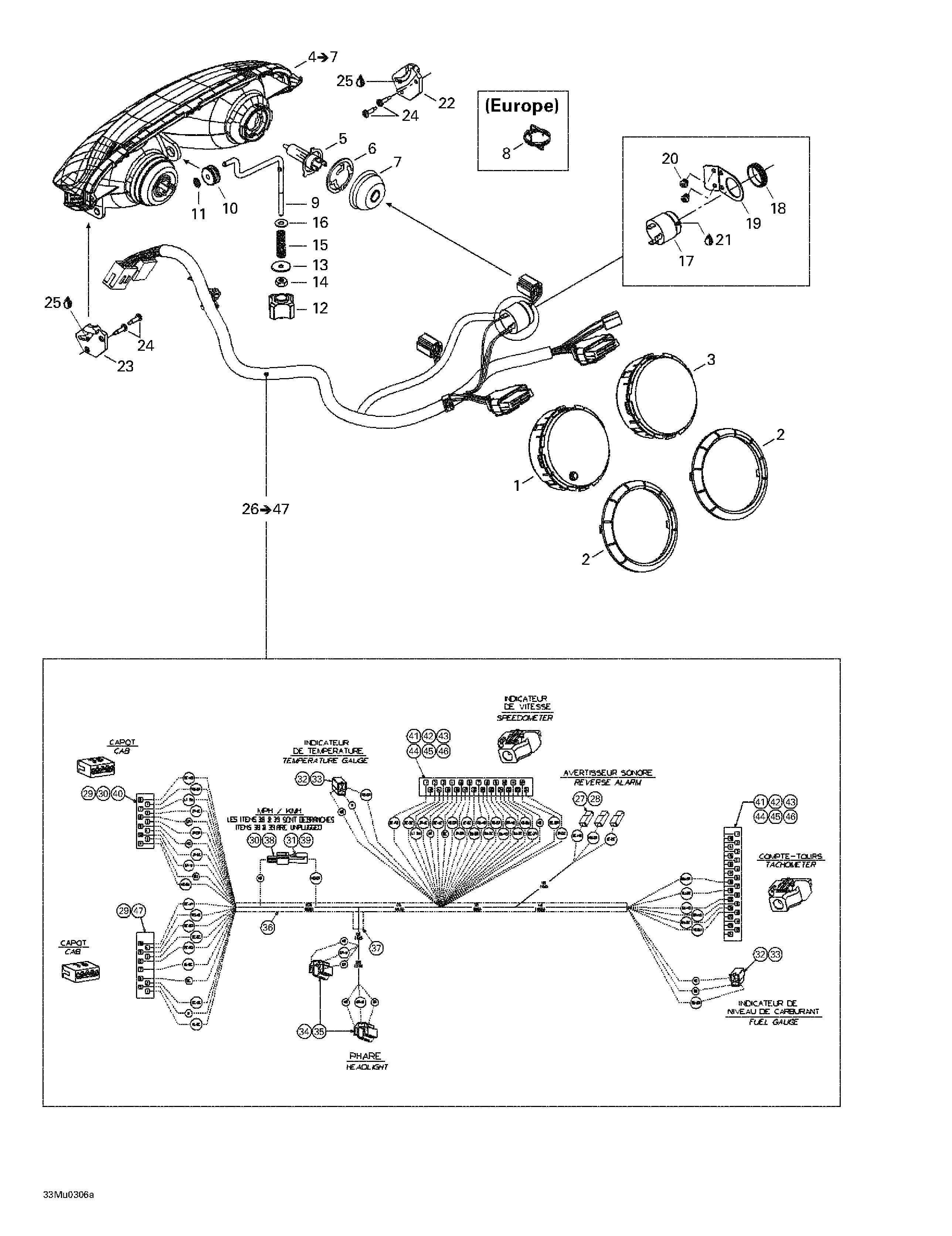

10- Hood Harness для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1515175828 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515175943 TachometerTachometer
-
4515175909 Halogen headlamp. Includes 4 - 7.Halogen headlamp. Includes 4 - 7.
-
5410504401 Halogen bulb (60/55 W, 12 V)Halogen bulb (60/55 W, 12 V)
-
6515175910 Bulb holderBulb holder
-
7515175911 CoverCover
-
8515175324 Spring (Europe)Spring (Europe)
-
9515175920 Adjuster rodAdjuster rod
-
10415100800 GrommetGrommet
-
11732610072 Push nutPush nut
-
12515175548 HandleHandle
-
13224060251 WasherWasher
-
14232561414 Elastis stop nut M6Elastis stop nut M6
-
15415100600 SpringSpring
-
16234061410 Flat washer 6 mmFlat washer 6 mm
-
17515175832 HornHorn
-
18414805101 Plastic nutPlastic nut
-
19515175688 PlatePlate
-
20390402200 Pop rivet 3/16''Pop rivet 3/16''
-
21296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
22517289300 R.H. supportR.H. support
-
23517289400 L.H. supportL.H. support
-
24732601315 Headlamp screwHeadlamp screw
-
25413707500 Grease tube LMZ, 400 gGrease tube LMZ, 400 g
-
26515175614 Hood harness. Includes 26 - 47.Hood harness. Includes 26 - 47.
-
27409010100 Female terminalFemale terminal
-
28409010400 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
29515175232 Male terminalMale terminal
-
30515175273 Male terminalMale terminal
-
31515175282 Female terminalFemale terminal
-
32561503100 Female terminalFemale terminal
-
33409204300 Female terminal housing (3 circuit)Female terminal housing (3 circuit)
-
34515175321 Female terminalFemale terminal
-
35409202700 Female terminal housing (3 circuit)Female terminal housing (3 circuit)
-
36415080000 Tubing (16 mm)Tubing (16 mm)
-
37415079900 Tubing (10 mm)Tubing (10 mm)
-
38515175509 Male terminal housing (1 Circuit)Male terminal housing (1 Circuit)
-
39515175510 Female terminal housing (1 Circuit)Female terminal housing (1 Circuit)
-
40515175720 Male terminal housing (11 Circuit)Male terminal housing (11 Circuit)
-
41515175812 PlugPlug
-
42515175801 Female terminal housing (24 circuits)Female terminal housing (24 circuits)
-
43515175802 RetainerRetainer
-
44515175803 Wire sealWire seal
-
45515175804 BlockBlock
-
46515175806 Female terminalFemale terminal
-
47415128526 Male terminal housing (10 Circuit)Male terminal housing (10 Circuit)
