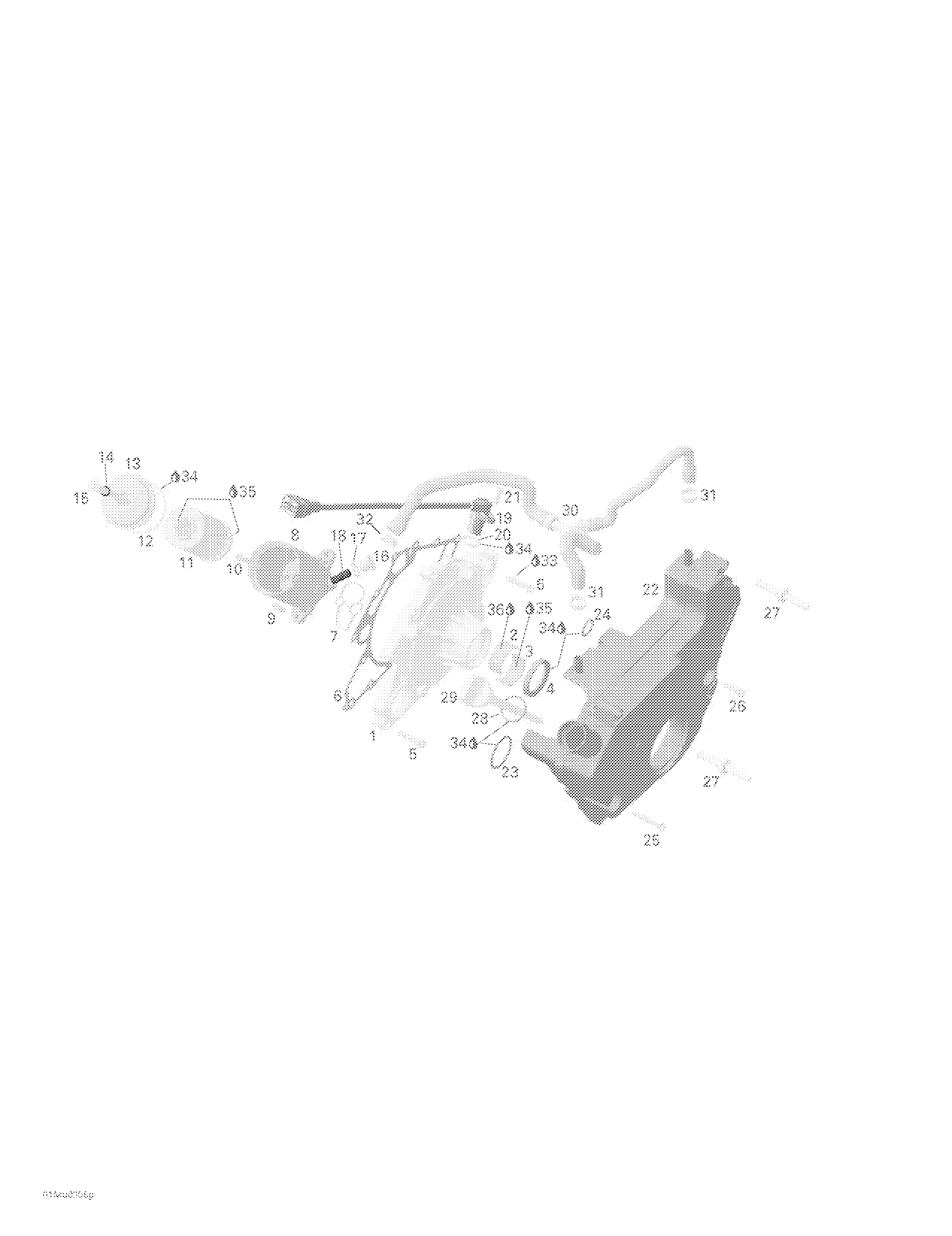

02- Clutch Cover And Oil Tank для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1420811671 Clutch cover ass'y. Includes 1 - 3.Clutch cover ass'y. Includes 1 - 3.
-
2420933540 Plain bearingPlain bearing
-
3420933545 Plain bearingPlain bearing
-
4420931150 Oil sealOil seal
-
5420440272 Hex. flanged screw M6 x 35Hex. flanged screw M6 x 35
-
6420950610 GasketGasket
-
7420950990 GasketGasket
-
8420811901 Oil filter housing ass'yOil filter housing ass'y
-
9420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420440602 Hex. flanged screw M6 x 65Hex. flanged screw M6 x 65
-
11420956740 Oil filterOil filter
-
12420230920 O-ringO-ring
-
13420610326 Oil filter coverOil filter cover
-
14420950860 O-ringO-ring
-
15420641105 Hex. screw M8 x 140.5Hex. screw M8 x 140.5
-
16420240230 Plug screwPlug screw
-
17420430622 Gasket ringGasket ring
-
18420960470 Stuffing plugStuffing plug
-
19420265920 Crank position triggerCrank position trigger
-
21420440162 Hex. flanged screw M6 x 16Hex. flanged screw M6 x 16
-
22420956700 Oil tank ass'y. Includes 22 - 24.Oil tank ass'y. Includes 22 - 24.
-
23420631400 O-ringO-ring
-
24420631410 O-ringO-ring
-
25420440322 Hex. flanged screw M6 x 45Hex. flanged screw M6 x 45
-
26420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
27420660860 Fixation boltFixation bolt
-
28420430590 O-ringO-ring
-
29420956890 Oil dipstickOil dipstick
-
30420660720 Molded hose ass'yMolded hose ass'y
-
31420853143 ClampClamp
-
32420853313 ClampClamp
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34293550014 Grease, super lubeGrease, super lube
-
35293600054 Engine oil 4 strokes, 0W40, 12 x 1 literEngine oil 4 strokes, 0W40, 12 x 1 liter
-
36420899271 Petamo grease GHY133N, 400 gPetamo grease GHY133N, 400 g
