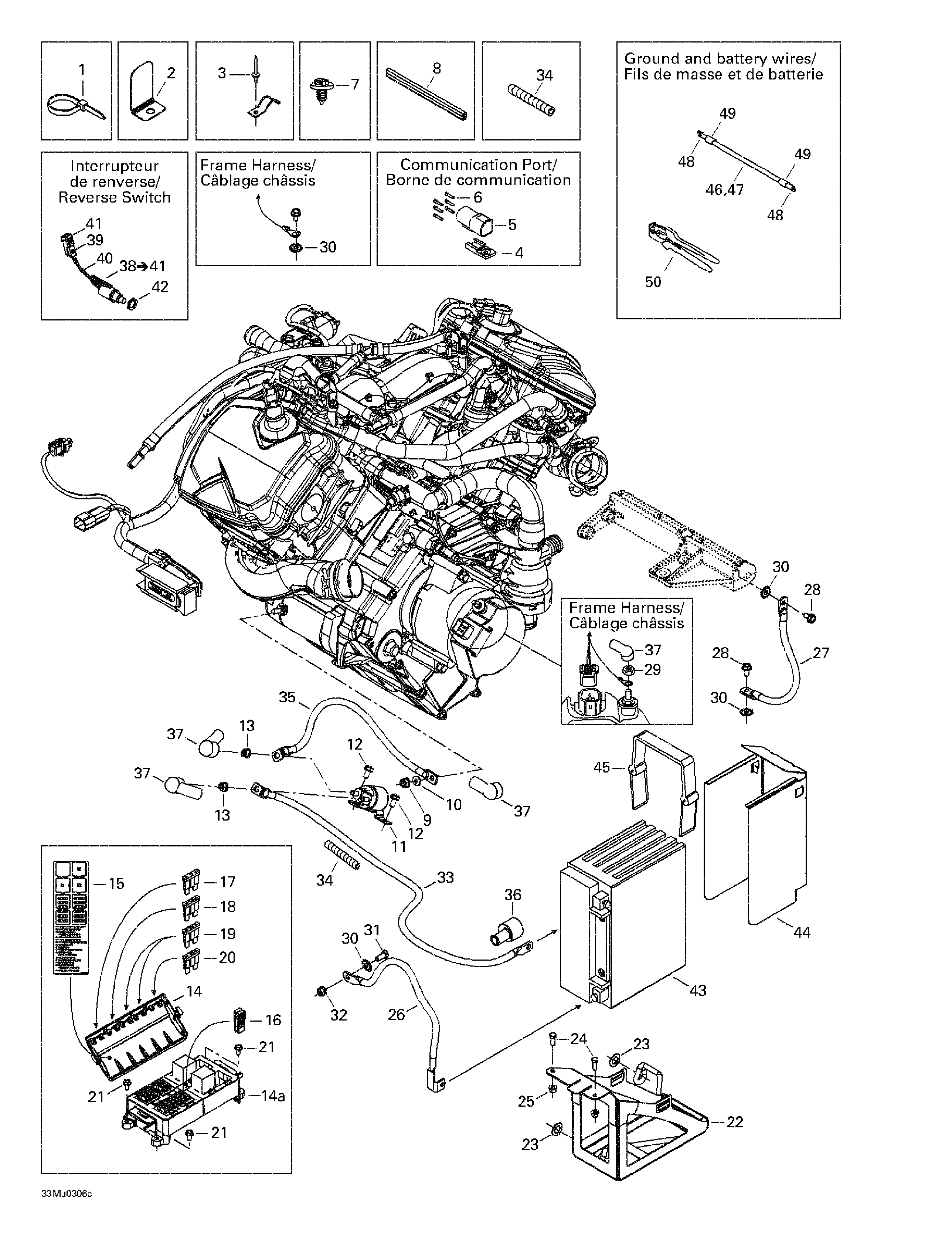

10- Battery And Starter для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1293750002 Locking Tie 142 mmLocking Tie 142 mm
-
414115200 Tie rap 180 mmTie rap 180 mm
-
293750009 Tie rap 160 mmTie rap 160 mm
-
293750008 Tie rap 350 mmTie rap 350 mm
-
2518322530 Tab lockTab lock
-
3390402400 Pop rivet 3/16''Pop rivet 3/16''
-
4515175917 ClipClip
-
5515175668 Male terminal housing (6 circuits)Male terminal housing (6 circuits)
-
6293000052 Sealing capSealing cap
-
7293730018 Mount dartMount dart
-
8271000110 Protector trimProtector trim
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10234061410 Flat washer 6 mmFlat washer 6 mm
-
11710000111 Starter relayStarter relay
-
12210261280 Hex. forming screw M6 x 12Hex. forming screw M6 x 12
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14515175740 Box fuse coverBox fuse cover
-
14a515175739 Fuse BoxFuse Box
-
15516001613 Fuse decalFuse decal
-
16515175811 Fuse toolFuse tool
-
17278000344 Fuse (5 amperes)Fuse (5 amperes)
-
18278000704 Fuse (7.5 amperes)Fuse (7.5 amperes)
-
19409003900 Fuse (20 amperes)Fuse (20 amperes)
-
20410917200 Fuse (30 amperes)Fuse (30 amperes)
-
21210251680 Hex. forming screw M5 x 16Hex. forming screw M5 x 16
-
22515175954 Battery supportBattery support
-
23503175800 WasherWasher
-
24207151444 Hex. screw M5 x 14Hex. screw M5 x 14
-
25233251414 Elastic flanged nut M5Elastic flanged nut M5
-
28210261280 Hex. forming screw M5 x 16Hex. forming screw M5 x 16
-
29232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
30250200000 Serrated lock washer M6Serrated lock washer M6
-
31207161644 Hex. screw M6 x 16Hex. screw M6 x 16
-
32233261414 Elastic flanged nut M6Elastic flanged nut M6
-
34409901700 TubingTubing
-
36515175919 Protector capProtector cap
-
37278001771 Protector capProtector cap
-
38515175967 Switch ass'y. Includes 38 - 41.Switch ass'y. Includes 38 - 41.
-
39515175232 Male terminalMale terminal
-
40293740005 Vinyl tape 3/4''Vinyl tape 3/4''
-
41515175654 Male terminal housing (2 Circuits)Male terminal housing (2 Circuits)
-
42250100012 Brass nutBrass nut
-
43515175895 Battery (21 amperes)Battery (21 amperes)
-
44515175616 DeflectorDeflector
-
45515175955 Battery strapBattery strap
-
46278001680 Ground cable battery (no 6) (meter)Ground cable battery (no 6) (meter)
-
47278001690 Red cable battery (no 6) (meter)Red cable battery (no 6) (meter)
-
48278001682 Flat terminal (small hole)Flat terminal (small hole)
-
278001683 Terminal 45 Deg. (small hole)Terminal 45 Deg. (small hole)
-
278001684 Terminal 90 Deg. (small hole)Terminal 90 Deg. (small hole)
-
278001685 Flat terminal (big hole)Flat terminal (big hole)
-
278001686 Terminal 45 Deg. (big hole)Terminal 45 Deg. (big hole)
-
278001687 Terminal 90 Deg. (big hole)Terminal 90 Deg. (big hole)
-
278001688 Flat terminalFlat terminal
-
278001776 Terminal 30 Deg. (2 holes)Terminal 30 Deg. (2 holes)
-
49278001692 Heat shrinkHeat shrink
-
50529035730 Crimp plierCrimp plier
