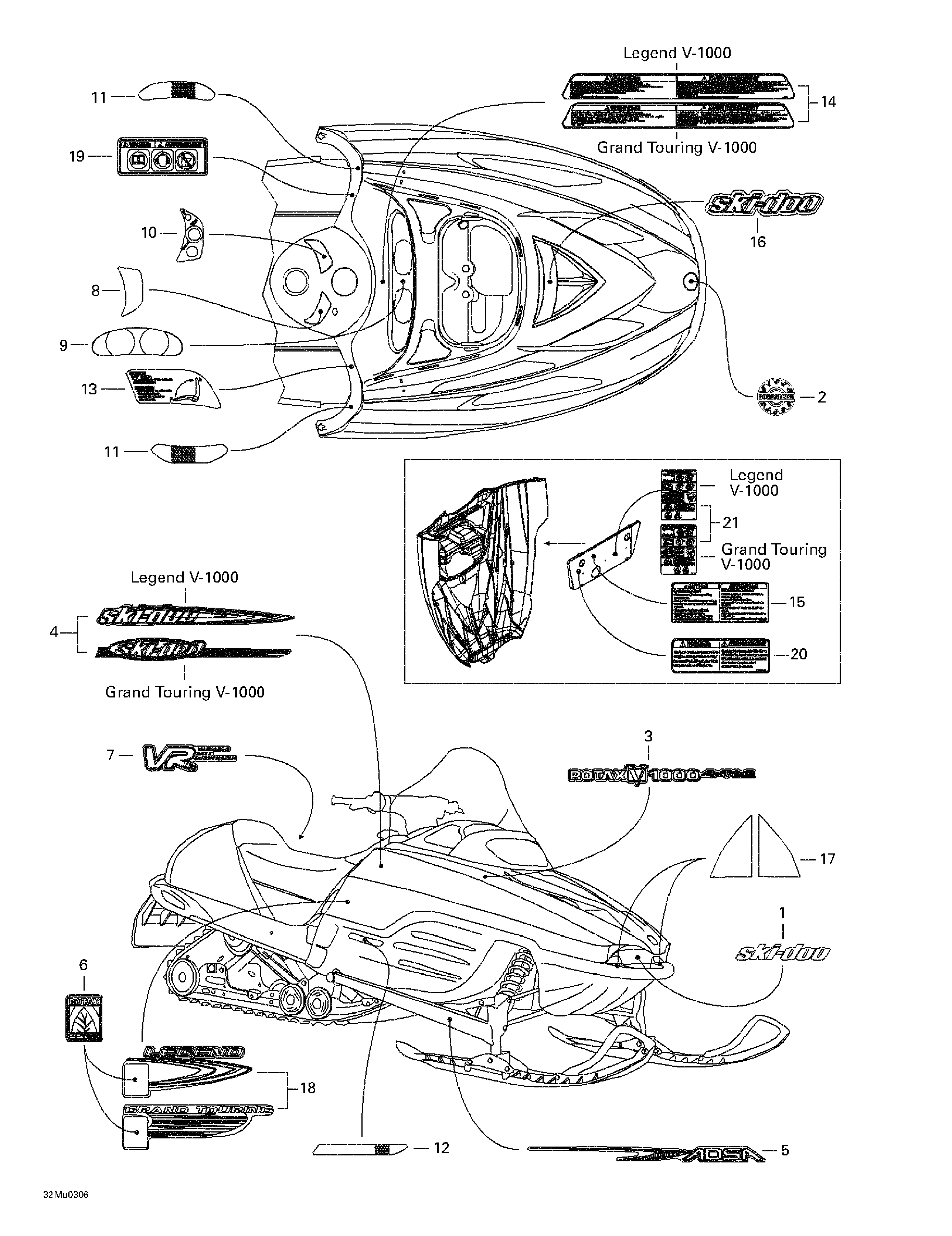

09- Decals для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1516000338 Decal - >Decal - >
-
2516000983 Logo - >Logo - >
-
3516001690 Decal - >Decal - >
-
4415128642 Kit - Side decal. Legend V-1000.Kit - Side decal. Legend V-1000.
-
415128639 Kit - Side decal. Grand Touring V-1000.Kit - Side decal. Grand Touring V-1000.
-
5415128406 Kit - Arm decalKit - Arm decal
-
6516001711 Decal - >Decal - >
-
7516001708 Decal - Suspension VRDecal - Suspension VR
-
8516001428 DecalDecal
-
9516001756 Decal - DashDecal - Dash
-
10516001789 Decal - >Decal - >
-
11516000224 Decal - Reflector decalDecal - Reflector decal
-
516000225 Decal - Reflector decal (Europe)Decal - Reflector decal (Europe)
-
12415064400 Decal - R.H. reflectorDecal - R.H. reflector
-
415064401 Decal - L.H. reflectorDecal - L.H. reflector
-
13516000458 Decal - ReverseDecal - Reverse
-
14516001221 Security Label (starting). Legend V-1000.Security Label (starting). Legend V-1000.
-
516001229 Security Label (starting). Grand Touring V-1000.Security Label (starting). Grand Touring V-1000.
-
15516001791 Decal - Checking engine oil levelDecal - Checking engine oil level
-
16516001741 Decal - Front decalDecal - Front decal
-
17415127659 Kit - Bumper decalKit - Bumper decal
-
18415128643 Kit - Lower rear decal. Legend V-1000.Kit - Lower rear decal. Legend V-1000.
-
415128640 Kit - Lower rear decal. Grand Touring V-1000.Kit - Lower rear decal. Grand Touring V-1000.
-
19516001296 Decal - Pictogram (Europe)Decal - Pictogram (Europe)
-
20516001297 Security label (hot parts)Security label (hot parts)
-
21516001639 Decal - Suspension adjustment decal. Legend V-1000.Decal - Suspension adjustment decal. Legend V-1000.
-
516001640 Decal - Suspension adjustment decal. Grand Touring V-1000.Decal - Suspension adjustment decal. Grand Touring V-1000.
-
22415128644 Kit - Hood Decal (Not Shown). (Incl. 3,4,6,9,11,13,14,15,16,18,20,21) Legend V-1000.Kit - Hood Decal (Not Shown). (Incl. 3,4,6,9,11,13,14,15,16,18,20,21) Legend V-1000.
-
415128641 Kit - Hood Decal (Not Shown). (Incl. 3,4,6,9,11,13,14,15,16,18,20,21) Grand Touring V-1000.Kit - Hood Decal (Not Shown). (Incl. 3,4,6,9,11,13,14,15,16,18,20,21) Grand Touring V-1000.
