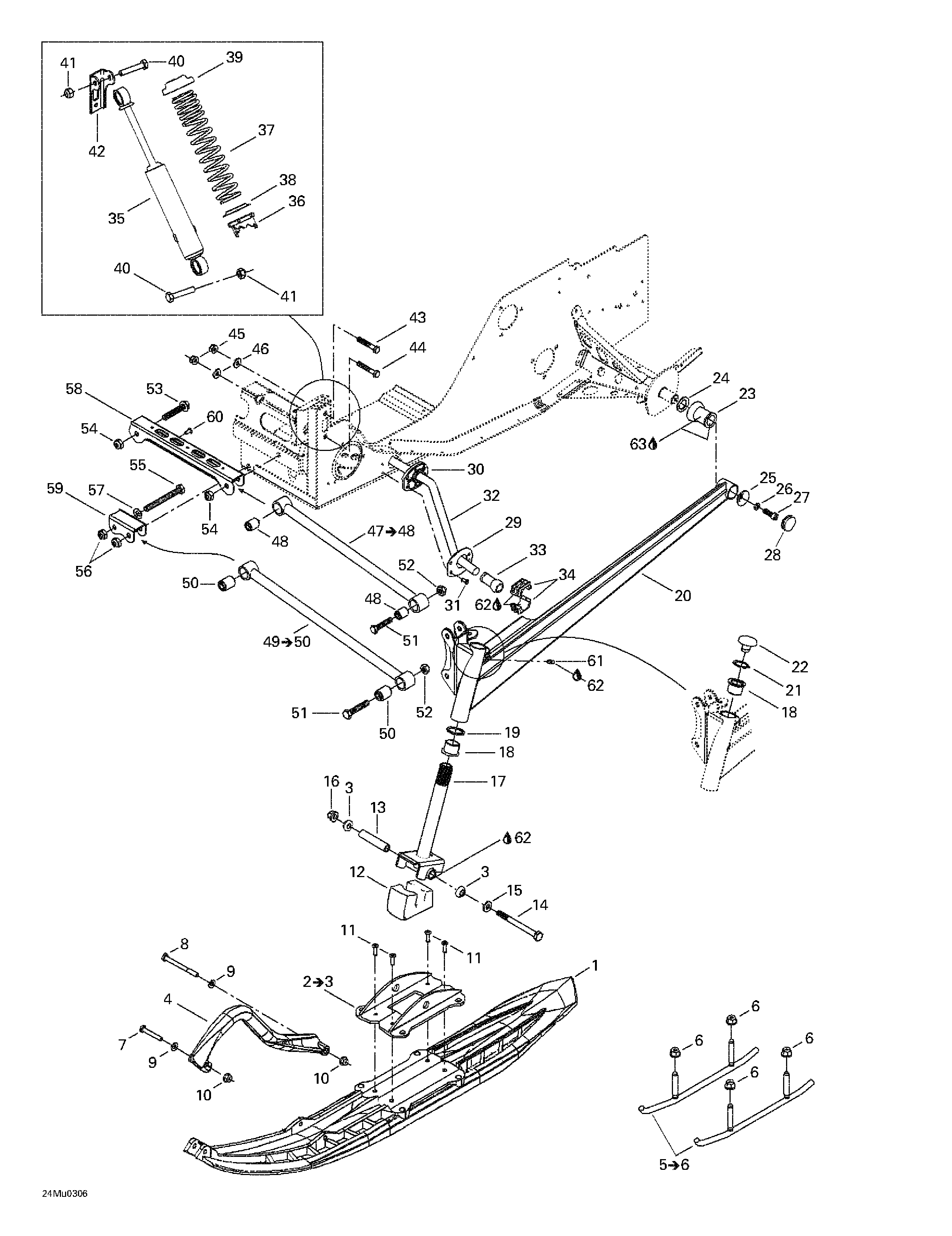

07- Front Suspension And Ski для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1505071031 Precision ski (blue B-226)Precision ski (blue B-226)
-
2505070764 Bridge ass'y. Includes 2 - 3.Bridge ass'y. Includes 2 - 3.
-
3505070001 BushingBushing
-
4860507600 Ski handle kit (blue B-226)Ski handle kit (blue B-226)
-
5860504900 Carbide runner kit. Includes 5 - 6.Carbide runner kit. Includes 5 - 6.
-
6233201414 Elastic flanged nut M10Elastic flanged nut M10
-
7207085044 Hex. screw M8 x 50Hex. screw M8 x 50
-
8207089044 Hex. screw M8 x 90Hex. screw M8 x 90
-
9234081410 Flat washer M8Flat washer M8
-
10233281414 Elastic flanged nut M8Elastic flanged nut M8
-
11293150090 Pop rivet 1/4''Pop rivet 1/4''
-
12506151233 Ski stopperSki stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex. screw M10 x 110Hex. screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Flanged nut M10Flanged nut M10
-
17506151234 Ski legSki leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070645 R.H. armR.H. arm
-
20505070646 L.H. armL.H. arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506115800 CupCup
-
26234181401 Lock washer M8Lock washer M8
-
27205582544 Socket head screw M8 x 25 (scotch grip)Socket head screw M8 x 25 (scotch grip)
-
28572045900 CapCap
-
29505070542 PlatePlate
-
30505070139 BushingBushing
-
31390407200 Pop rivet 3/16''Pop rivet 3/16''
-
32505071208 StabilisatorStabilisator
-
33505070819 Ball jointBall joint
-
34505070817 Sliding blockSliding block
-
35505070994 Front shockFront shock
-
36503183700 CamCam
-
37505071129 SpringSpring
-
38503187500 Spring GuideSpring Guide
-
39503140600 Spring StopperSpring Stopper
-
40207005544 Hex. screw M10 x 55Hex. screw M10 x 55
-
41233601416 Elastic locking nut M10Elastic locking nut M10
-
42518317518 R.H. shock bracketR.H. shock bracket
-
42518317519 L.H. shock bracketL.H. shock bracket
-
43207085044 Hex. screw M8 x 50Hex. screw M8 x 50
-
44250000082 Hex. screw with nylon M8 x 50Hex. screw with nylon M8 x 50
-
45233281414 Elastic flanged nut M8Elastic flanged nut M8
-
46506151245 WasherWasher
-
47505071210 Upper arm ass'y. Includes 47 - 48.Upper arm ass'y. Includes 47 - 48.
-
48505070025 BushingBushing
-
49505071211 Lower arm ass'y. Includes 49 - 50.Lower arm ass'y. Includes 49 - 50.
-
50505070025 BushingBushing
-
51207005544 Hex. screw M10 x 55Hex. screw M10 x 55
-
52233601416 Elastic locking nut M10Elastic locking nut M10
-
53207605544 Hex. flanged screw M10 x 55Hex. flanged screw M10 x 55
-
54233601416 Elastic locking nut M10Elastic locking nut M10
-
55207009544 Hex. screw M10 x 95Hex. screw M10 x 95
-
56233601416 Elastic locking nut M10Elastic locking nut M10
-
57234001410 Flat washer M10Flat washer M10
-
58505070010 Upper arm bracketUpper arm bracket
-
59505070011 Lower arm bracketLower arm bracket
-
60390402200 Pop rivet 3/16''Pop rivet 3/16''
-
61408200700 Grease fittingGrease fitting
-
62219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
63293550014 Grease, super lubeGrease, super lube
