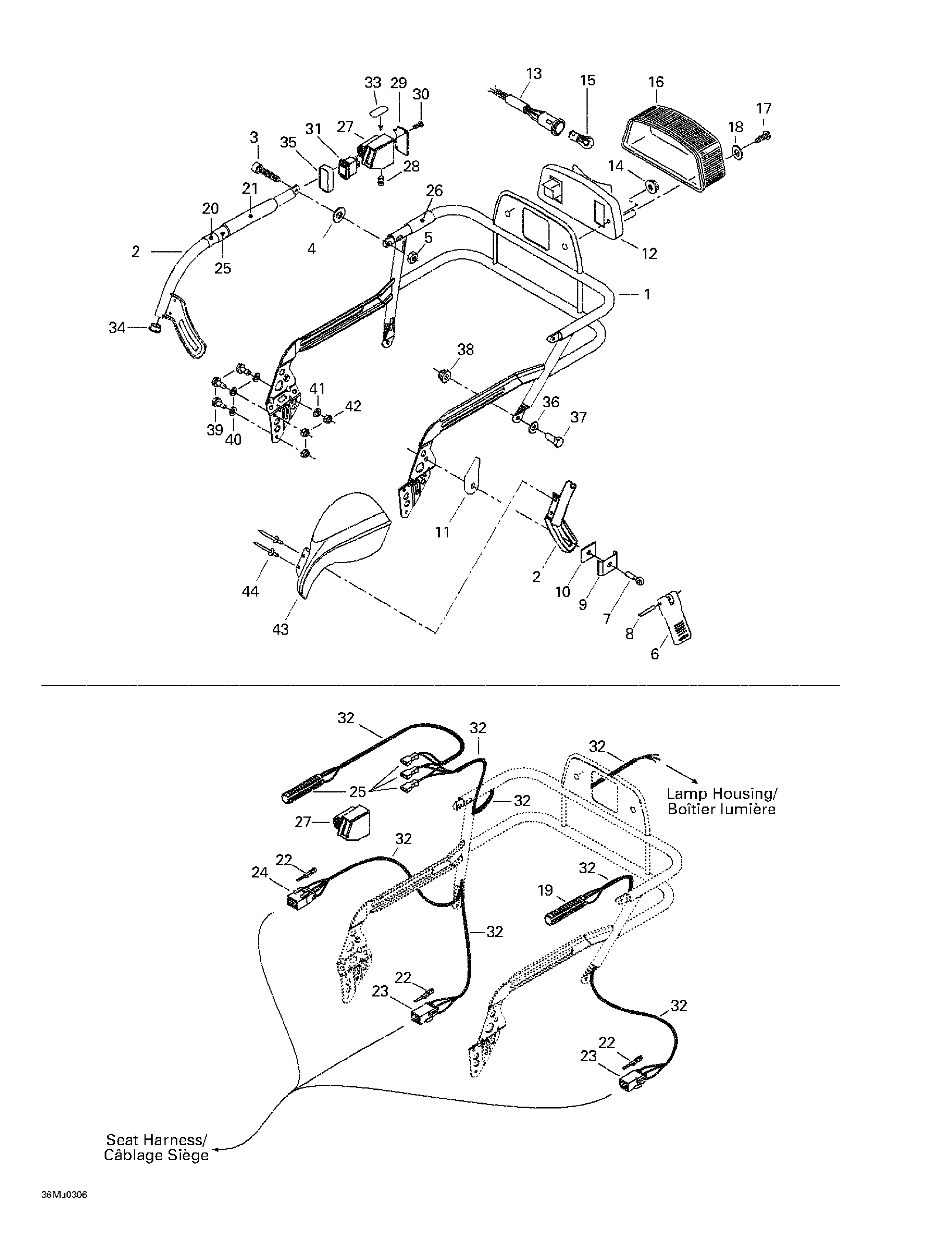

09- Luggage Rack (Grand Touring V-1000) для BRP Ski-Doo Legend V-1000 - 2003
-
№АртикулНазвание
-
1511000124 Rack ass'y. Grand Touring V-1000.Rack ass'y. Grand Touring V-1000.
-
2511000012 R.H. arm (rack). Grand Touring V-1000.R.H. arm (rack). Grand Touring V-1000.
-
517300900 L.H. am (rack). Grand Touring V-1000.L.H. am (rack). Grand Touring V-1000.
-
3205061644 Socket head screw M6 x 16. Grand Touring V-1000.Socket head screw M6 x 16. Grand Touring V-1000.
-
4234062100 Flat washer 6 mm. Grand Touring V-1000.Flat washer 6 mm. Grand Touring V-1000.
-
5232561414 Elastic Stop Nut M6. Legend V-1000. .Elastic Stop Nut M6. Legend V-1000. .
-
6572038200 Lock lever. Grand Touring V-1000.Lock lever. Grand Touring V-1000.
-
7517250100 Eye bolt. Grand Touring V-1000.Eye bolt. Grand Touring V-1000.
-
8414821400 Pin. Grand Touring V-1000.Pin. Grand Touring V-1000.
-
9511000226 Guide. Grand Touring V-1000.Guide. Grand Touring V-1000.
-
10570063800 Outer spacer. Grand Touring V-1000.Outer spacer. Grand Touring V-1000.
-
11572088900 Spacer block. Grand Touring V-1000.Spacer block. Grand Touring V-1000.
-
12515175397 Lamp housing. Grand Touring V-1000.Lamp housing. Grand Touring V-1000.
-
13511000224 Socket. Grand Touring V-1000.Socket. Grand Touring V-1000.
-
14233251414 Elastic flanged nut M5. Legend V-1000. .Elastic flanged nut M5. Legend V-1000. .
-
15410504100 Bulb. Grand Touring V-1000.Bulb. Grand Touring V-1000.
-
16414513700 Lens. Grand Touring V-1000.Lens. Grand Touring V-1000.
-
17209632540 Phillips screw 3.9 x 25. Grand Touring V-1000.Phillips screw 3.9 x 25. Grand Touring V-1000.
-
18414516400 Washer. Grand Touring V-1000.Washer. Grand Touring V-1000.
-
19515175710 Heater. Grand Touring V-1000.Heater. Grand Touring V-1000.
-
20414988700 Reflective sheet. Grand Touring V-1000.Reflective sheet. Grand Touring V-1000.
-
21415050200 L.H. grip (370 mm). Grand Touring V-1000.L.H. grip (370 mm). Grand Touring V-1000.
-
415050300 R.H. grip (250 mm). Grand Touring V-1000.R.H. grip (250 mm). Grand Touring V-1000.
-
22515175232 Male terminal. Grand Touring V-1000.Male terminal. Grand Touring V-1000.
-
23515175494 Male terminal housing (3 circuits). Grand Touring V-1000.Male terminal housing (3 circuits). Grand Touring V-1000.
-
24515175846 Male terminal housing (4 circuits). Grand Touring V-1000.Male terminal housing (4 circuits). Grand Touring V-1000.
-
25515175882 Heater with terminals. Grand Touring V-1000.Heater with terminals. Grand Touring V-1000.
-
26415050400 Grip (short) (60 mm). Grand Touring V-1000.Grip (short) (60 mm). Grand Touring V-1000.
-
27572089200 Switch housing. Grand Touring V-1000.Switch housing. Grand Touring V-1000.
-
28206580890 Socket set screw M8 x 8. Grand Touring V-1000.Socket set screw M8 x 8. Grand Touring V-1000.
-
29572089300 Plate. Grand Touring V-1000.Plate. Grand Touring V-1000.
-
30732601255 Screw. Grand Touring V-1000.Screw. Grand Touring V-1000.
-
31511000001 Rocker switch. Grand Touring V-1000.Rocker switch. Grand Touring V-1000.
-
32515175332 Low temp tubing (vinyl). Grand Touring V-1000.Low temp tubing (vinyl). Grand Touring V-1000.
-
33418001800 Heat grip decal. Grand Touring V-1000.Heat grip decal. Grand Touring V-1000.
-
34572110800 Cap. Grand Touring V-1000.Cap. Grand Touring V-1000.
-
35511000002 Switch protector. Grand Touring V-1000.Switch protector. Grand Touring V-1000.
-
36234081410 Flat washer 8 mm. Grand Touring V-1000.Flat washer 8 mm. Grand Touring V-1000.
-
37207182044 Hex. screw M8 x 20. Grand Touring V-1000.Hex. screw M8 x 20. Grand Touring V-1000.
-
38233281414 Elastic flanged nut M8. Legend V-1000. .Elastic flanged nut M8. Legend V-1000. .
-
39210261680 Hex. forming screw M6 x 16. Grand Touring V-1000.Hex. forming screw M6 x 16. Grand Touring V-1000.
-
40234161601 Lock washer 6 mm. Grand Touring V-1000.Lock washer 6 mm. Grand Touring V-1000.
-
41391302100 Flat washer. Grand Touring V-1000.Flat washer. Grand Touring V-1000.
-
42232561414 Elastic Stop Nut M6. Grand Touring V-1000.Elastic Stop Nut M6. Grand Touring V-1000.
-
43572089400 R.H. protector. Grand Touring V-1000.R.H. protector. Grand Touring V-1000.
-
572089500 L.H. protector. Grand Touring V-1000.L.H. protector. Grand Touring V-1000.
-
44293150108 Pop rivet 3/16''. Grand Touring V-1000.Pop rivet 3/16''. Grand Touring V-1000.
