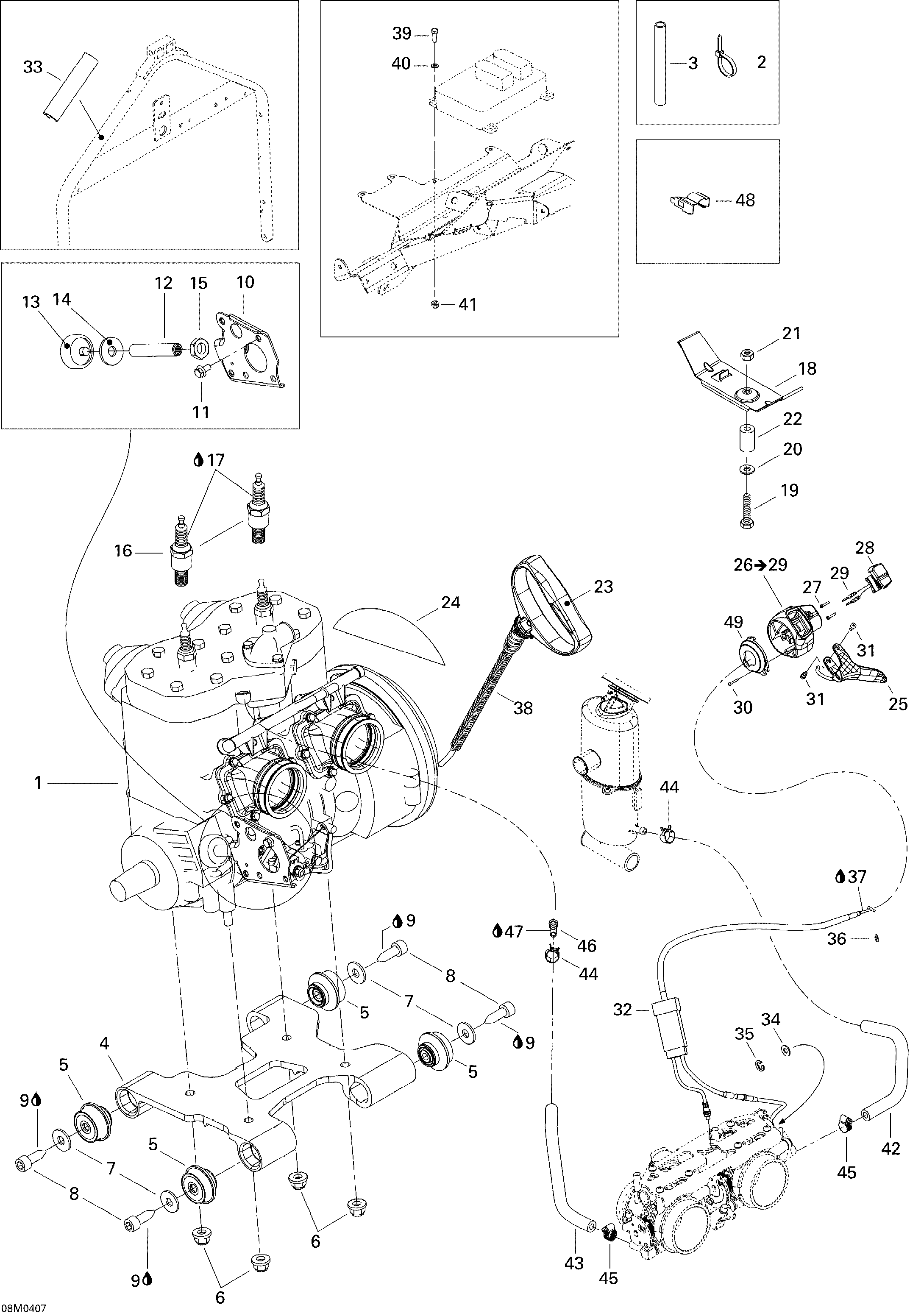

01- Engine Assembly And Support для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1400509751 Engine 593 Ho Sdi RerEngine 593 Ho Sdi Rer
-
2293750002 Tie Rap 130 mmTie Rap 130 mm
-
3415080000 Tubing (16 mm)Tubing (16 mm)
-
4512059754 Engine SupportEngine Support
-
5512059691 Rubber MountRubber Mount
-
6233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
7506151251 WasherWasher
-
8250000094 Screw M10 X 30Screw M10 X 30
-
9413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
10512059840 PlatePlate
-
11207561244 Hex Flanged Screw M6 X 12 (Scotch Grip)Hex Flanged Screw M6 X 12 (Scotch Grip)
-
12250500007 Stopper ScrewStopper Screw
-
13512059610 StopperStopper
-
14512059057 WasherWasher
-
15232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
16415128524 Spark Plug NGK BR9ECS 0.8mmSpark Plug NGK BR9ECS 0.8mm
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18512059865 Coil SupportCoil Support
-
19207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
20234061410 Flat WasherFlat Washer
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
22512059812 SpacerSpacer
-
23572084400 Starter GripStarter Grip
-
24512059893 Reflective SheetReflective Sheet
-
25512059766 Handle Ass'Y (28 mm)Handle Ass'Y (28 mm)
-
26512059810 Housing Throttle Ass'Y. Includes 26 to 29Housing Throttle Ass'Y. Includes 26 to 29
-
27250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
28415128683 Kill SwitchKill Switch
-
29515175232 Male TerminalMale Terminal
-
30250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
31732601143 Flanged ScrewFlanged Screw
-
32512059765 Throttle CableThrottle Cable
-
33512059750 ProtectorProtector
-
34234081100 Flat Washer 8 mmFlat Washer 8 mm
-
35414753500 CirclipCirclip
-
36414274500 CirclipCirclip
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38512059535 Rope GuideRope Guide
-
39207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
40234051410 Flat WasherFlat Washer
-
41233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
42512059563 Formed HoseFormed Hose
-
43512059892 Formed HoseFormed Hose
-
44414655700 Spring ClampSpring Clamp
-
45293650128 Tridon ClampTridon Clamp
-
46293710082 Straight FittingStraight Fitting
-
47293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
48512059809 Heating Element BracketHeating Element Bracket
-
49512059698 CoverCover
