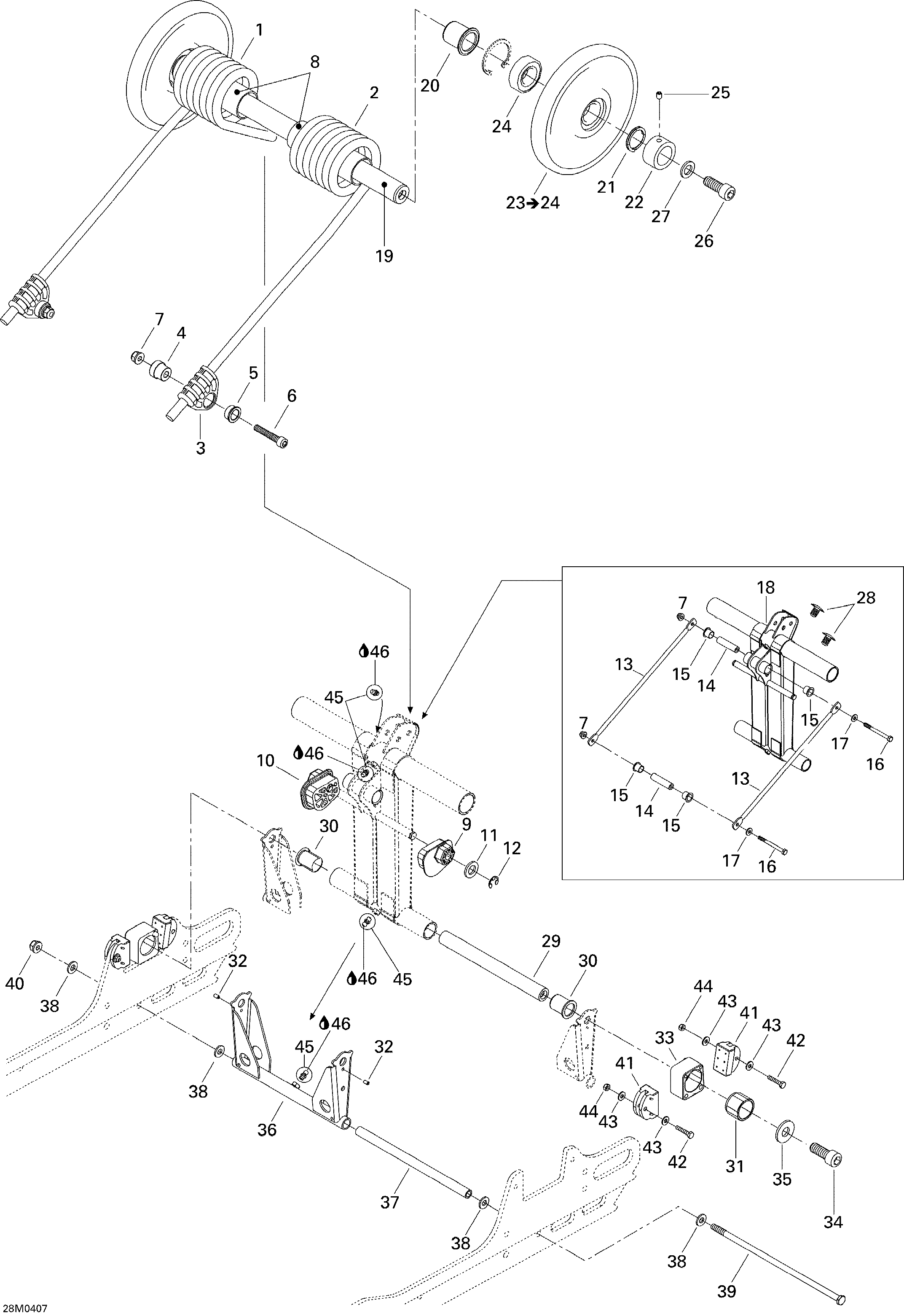

08- Rear Arm для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1503190329 RH Spring (Square). GSX Sport 1+1RH Spring (Square). GSX Sport 1+1
-
503190334 RH Spring (Square). GSX Sport / GSX LTDRH Spring (Square). GSX Sport / GSX LTD
-
503190492 RH Spring (Square). GSX LTD 1+1RH Spring (Square). GSX LTD 1+1
-
2503190331 LH Spring (Square). GSX Sport 1+1LH Spring (Square). GSX Sport 1+1
-
503190335 LH Spring (Square). GSX Sport / GSX LTDLH Spring (Square). GSX Sport / GSX LTD
-
503190494 LH Spring (Square). GSX LTD 1+1LH Spring (Square). GSX LTD 1+1
-
3503189657 Spring SupportSpring Support
-
4503188934 Spring Axle GuideSpring Axle Guide
-
5503188929 Cushion RetainerCushion Retainer
-
6205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8503189105 Plastic BushingPlastic Bushing
-
9503190023 LH Spring CamLH Spring Cam
-
10503190022 RH Spring CamRH Spring Cam
-
11234021410 Flat Washer 12 mmFlat Washer 12 mm
-
12293370013 CirclipCirclip
-
13503189726 Throttle RodThrottle Rod
-
14503189815 Axle BarAxle Bar
-
15506150200 Swivel BushingSwivel Bushing
-
16207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
17224081201 Flat WasherFlat Washer
-
18503190110 Rear ArmRear Arm
-
19503189412 Upper AxleUpper Axle
-
20503189288 CushionCushion
-
21503189146 Axle SpringAxle Spring
-
22503189147 Retainer RingRetainer Ring
-
23503190269 Wheel 165 Ass'Y. Includes 23 to 24Wheel 165 Ass'Y. Includes 23 to 24
-
24503189567 Ball Bearing 6205Ball Bearing 6205
-
25206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
26205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
27503189276 WasherWasher
-
28414644300 DartDart
-
29503189413 Rear Lower AxleRear Lower Axle
-
30503189286 CushionCushion
-
31503189488 Block GuideBlock Guide
-
32250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
33503189152 LH BlockLH Block
-
503189170 RH BlockRH Block
-
34205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
35503189276 WasherWasher
-
36503189819 Pivot ArmPivot Arm
-
37503189156 Pivot Arm AxlePivot Arm Axle
-
38503189157 WasherWasher
-
39732601198 Bolt M8 (Long)Bolt M8 (Long)
-
40233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41503189608 Rubber StopperRubber Stopper
-
42207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
43250200016 Flat Washer 5 mmFlat Washer 5 mm
-
44232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
45408200700 Grease FittingGrease Fitting
-
46219700417 Synthetic Grease, 400gSynthetic Grease, 400g
