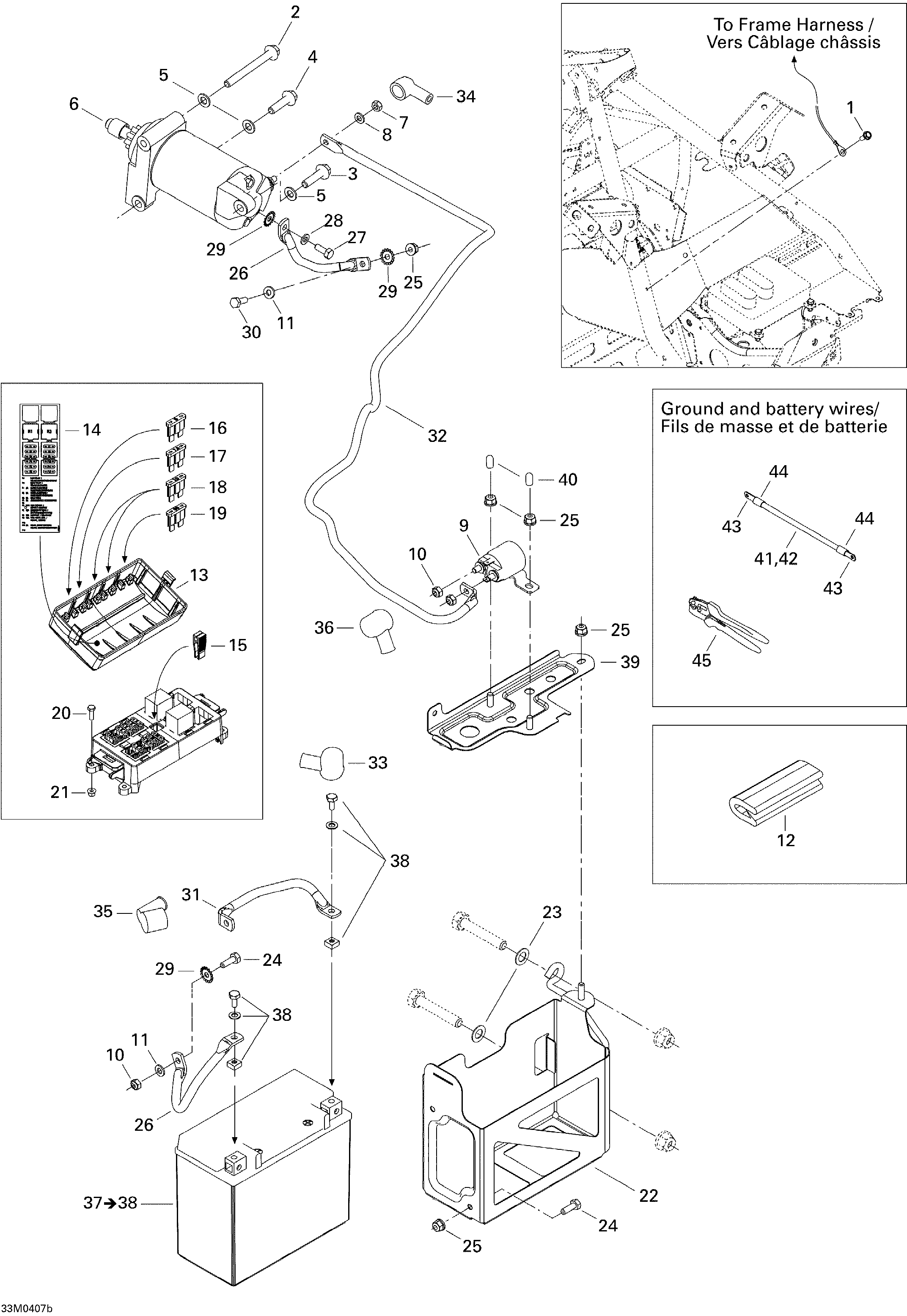

10- Battery, Starter, Fuse Box для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
2207587544 Hex Flanged Screw (Scotch Grip) M8 X 75Hex Flanged Screw (Scotch Grip) M8 X 75
-
3207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)Hex Flanged Screw M8 X 30 (Scotch Grip)
-
4207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)Hex Flanged Screw M8 X 30 (Scotch Grip)
-
5250200008 Flat Washer 8 mmFlat Washer 8 mm
-
6515176003 Starter Ass'YStarter Ass'Y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat WasherFlat Washer
-
9515176011 Starter RelayStarter Relay
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11234061410 Flat WasherFlat Washer
-
12271000110 TrimTrim
-
13515176066 CoverCover
-
14516002141 Fuse DecalFuse Decal
-
15515175811 Fuse ToolFuse Tool
-
16278000344 FuseFuse
-
17278000704 Fuse (7.5 Amperes)Fuse (7.5 Amperes)
-
18409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
19410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
20207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
21233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
22515176017 Battery Support (Black)Battery Support (Black)
-
23503175800 WasherWasher
-
24207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
25233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
27207361644 Hex Screw (Scotch Grip) M6 X 16Hex Screw (Scotch Grip) M6 X 16
-
28234061410 Flat WasherFlat Washer
-
29250200041 Tuflock Phillips ScrewTuflock Phillips Screw
-
30207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
33570151000 Protection CapProtection Cap
-
34278001771 CapCap
-
35570064200 Protection CapProtection Cap
-
36515175919 Protector CapProtector Cap
-
37515175642 Battery (18 Amperes). Includes 37 to 38Battery (18 Amperes). Includes 37 to 38
-
38295500849 Battery Fastener KitBattery Fastener Kit
-
39515175735 Battery StripBattery Strip
-
40515176141 CapCap
-
41278001680 Ground Cable Battery (No. 6) (Meter)Ground Cable Battery (No. 6) (Meter)
-
42278001690 Red Cable Battery (No. 6) (Meter)Red Cable Battery (No. 6) (Meter)
-
43278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45° (Small Hole)Terminal 45° (Small Hole)
-
278001684 Terminal 90° (Small Hole)Terminal 90° (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45° (Big Hole)Terminal 45° (Big Hole)
-
278001687 Terminal 90° (Big Hole)Terminal 90° (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
278001776 Terminal 30° (2 Holes)Terminal 30° (2 Holes)
-
44278001692 Heat ShrinkHeat Shrink
-
45529035730 Crimp PlierCrimp Plier
