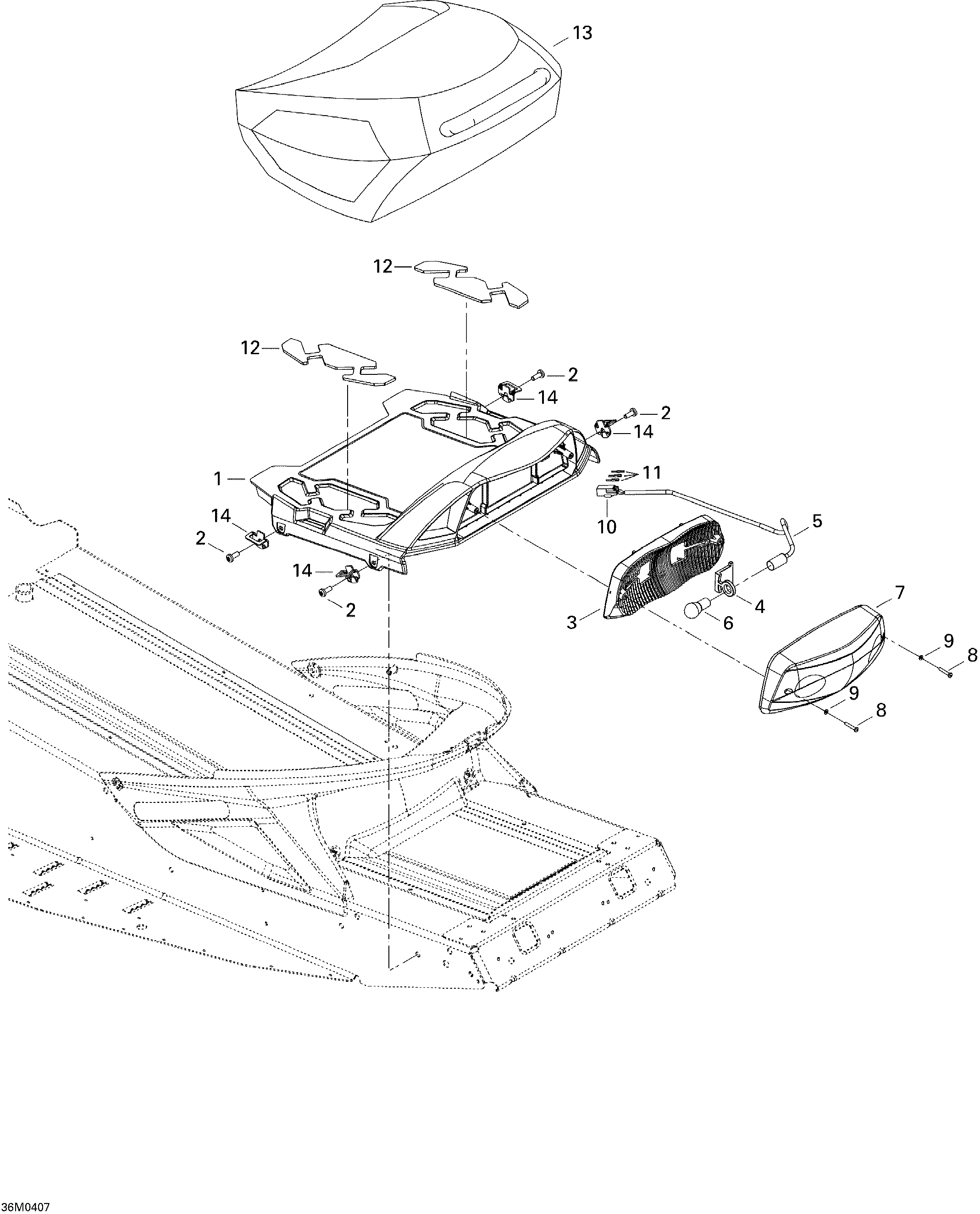

09- Luggage Rack для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1511000242 Luggage RackLuggage Rack
-
2250000129 Torx M6 X 16Torx M6 X 16
-
3510004018 ReflectorReflector
-
4414979411 Rubber DamperRubber Damper
-
5515176045 FittingFitting
-
6410504100 Tail Lamp BulbTail Lamp Bulb
-
7511000315 LensLens
-
8209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
9414516400 WasherWasher
-
10515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
11515175232 Male TerminalMale Terminal
-
12520000390 Rear CarpetRear Carpet
-
13520000389 Rear Bag. GSX LTD / GSX LTD 1+1Rear Bag. GSX LTD / GSX LTD 1+1
-
520000411 Rear Bag. GSX SPORT / GSX SPORT 1+1Rear Bag. GSX SPORT / GSX SPORT 1+1
-
14705000560 Hook (Black)Hook (Black)
