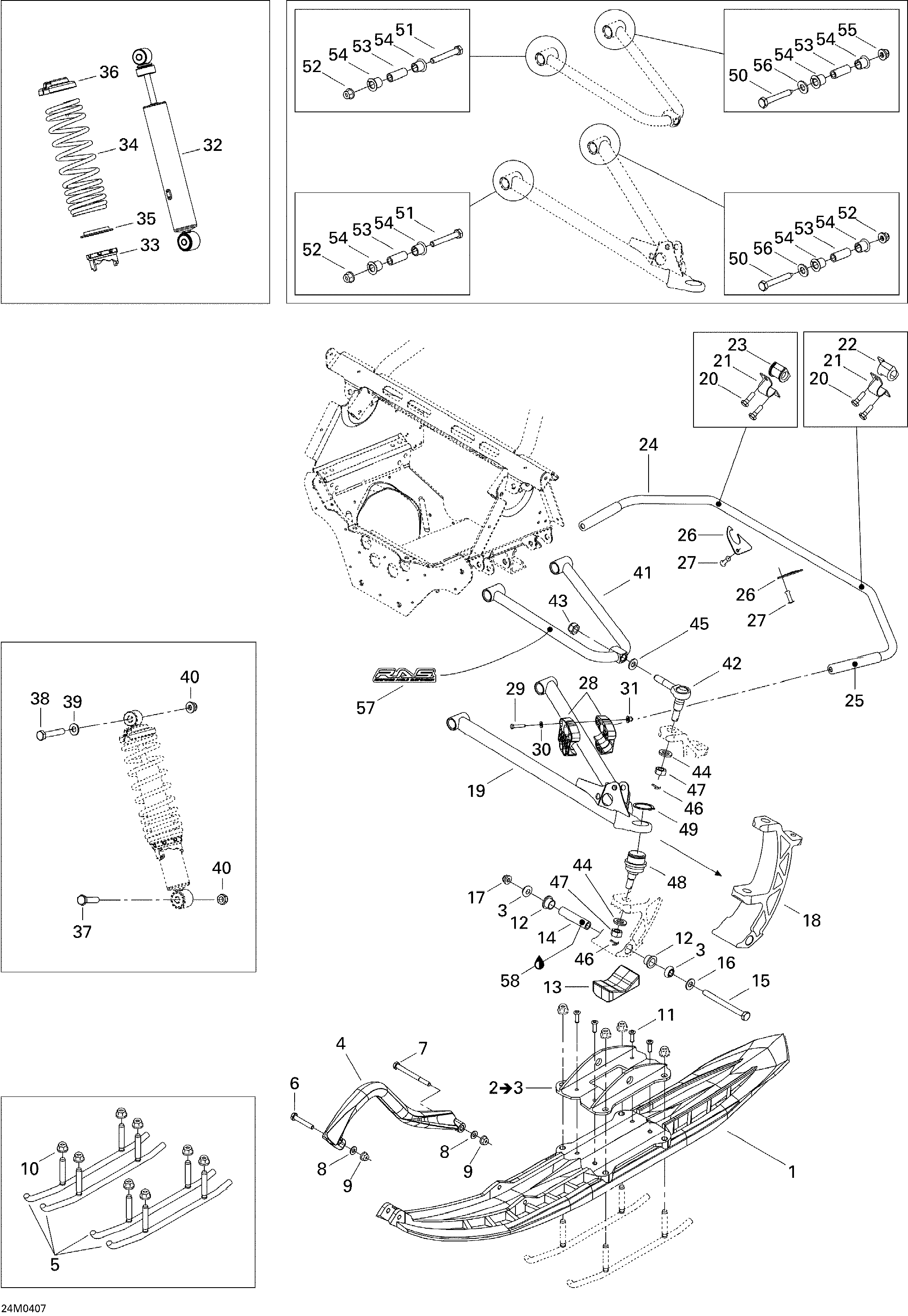

07- Front Suspension для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1505070727 Precision Ski (Black)Precision Ski (Black)
-
505071031 Precision Ski (Blue)Precision Ski (Blue)
-
2505070764 Bridge Ass'Y. Includes 2 to 3Bridge Ass'Y. Includes 2 to 3
-
3505070001 BushingBushing
-
4505070963 Handle (Black)Handle (Black)
-
860507600 Handle (Blue)Handle (Blue)
-
5860504900 Runner 6 Carbides Kit (Precision Ski)Runner 6 Carbides Kit (Precision Ski)
-
6207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
7207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
11293150090 Pop Rivet 1/4''Pop Rivet 1/4''
-
12505070954 CushionCushion
-
13505070671 Ski StopperSki Stopper
-
14506133300 SpacerSpacer
-
15250000001 Hex Screw M10 X 110Hex Screw M10 X 110
-
16732900049 WasherWasher
-
17732610084 Flanged Nut M10Flanged Nut M10
-
18505071232 Ski LegSki Leg
-
19505071290 RH Lower ArmRH Lower Arm
-
505071293 LH Lower ArmLH Lower Arm
-
20250000118 Hex Screw With NylonHex Screw With Nylon
-
21506095800 ClampClamp
-
22505070664 LH Torsion Bar BushingLH Torsion Bar Bushing
-
23505070912 RH Torsion Bar BushingRH Torsion Bar Bushing
-
24505070948 StabilisatorStabilisator
-
25505071039 Bar End SwayBar End Sway
-
26505071253 PlugPlug
-
27293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
28505071268 RH Slider HalfRH Slider Half
-
505071269 LH Slider HalfLH Slider Half
-
29207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
30391301700 WasherWasher
-
31233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
32505071202 Front ShockFront Shock
-
33503183700 Cam 45°Cam 45°
-
34505071264 SpringSpring
-
35503187500 Spring GuideSpring Guide
-
36503140600 Spring StopperSpring Stopper
-
37207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
38207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
39732900049 WasherWasher
-
40233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
41505071276 Upper ArmUpper Arm
-
42505071483 Ball Upper JointBall Upper Joint
-
43250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
44234021410 Flat Washer 12 mmFlat Washer 12 mm
-
45503189276 WasherWasher
-
46211400017 Cotter PinCotter Pin
-
47232221414 Hex Castellated Nut M12Hex Castellated Nut M12
-
48505071422 Ball JointBall Joint
-
49293370035 CirclipCirclip
-
50250000114 Cone Screw M10 X 75Cone Screw M10 X 75
-
51207007044 Hex Screw M10 X 70Hex Screw M10 X 70
-
52233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
53505070567 BushingBushing
-
54505070566 Arm BushingArm Bushing
-
55233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
56503189564 WasherWasher
-
57516001704 R.A.S. Suspension DecalR.A.S. Suspension Decal
-
58219700417 Synthetic Grease, 400gSynthetic Grease, 400g
