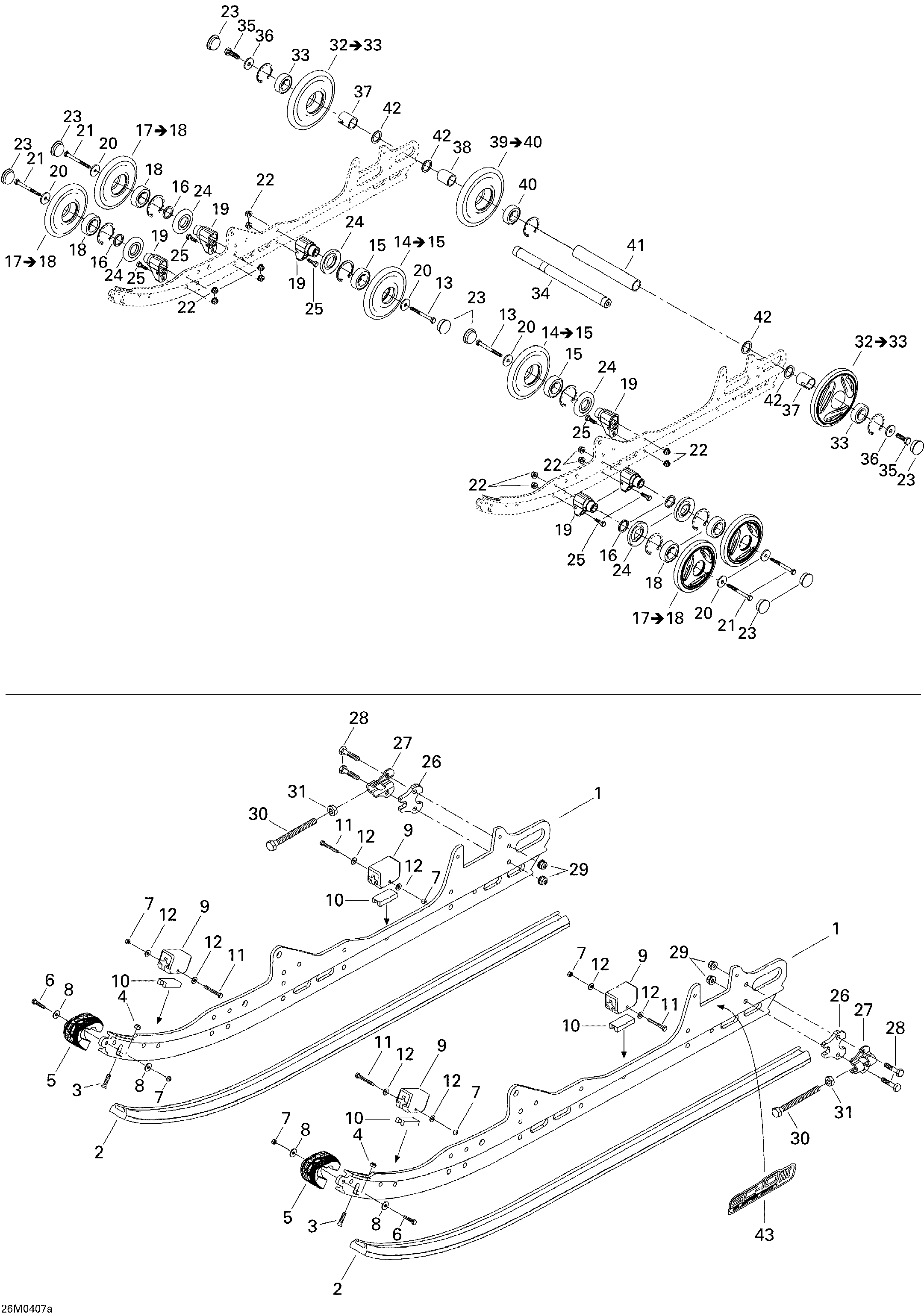

08- Rear Suspension для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1503190521 Runner 121Runner 121
-
2503190522 Runner ShoeRunner Shoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9570063000 Rubber StopperRubber Stopper
-
10572084800 Stopper ReinforcementStopper Reinforcement
-
11207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
12391301700 WasherWasher
-
13207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
14503190213 Wheel 139. Includes 14 to 15 / GSX LTD 1+1 / GSX SPORT 1+1Wheel 139. Includes 14 to 15 / GSX LTD 1+1 / GSX SPORT 1+1
-
503190229 Wheel 135. Includes 14 to 15 / GSX LTD / GSX SPORTWheel 135. Includes 14 to 15 / GSX LTD / GSX SPORT
-
15503189567 Ball Bearing 6205Ball Bearing 6205
-
16503173700 WasherWasher
-
17503190211 Wheel 139 mm (Full Moon). Includes 17 to 18 / GSX LTD 1+1 / GSX SPORT 1+1Wheel 139 mm (Full Moon). Includes 17 to 18 / GSX LTD 1+1 / GSX SPORT 1+1
-
503190214 Wheel 135. Includes 17 to 18 / GSX LTD / GSX SPORTWheel 135. Includes 17 to 18 / GSX LTD / GSX SPORT
-
18503189567 Ball Bearing 6205Ball Bearing 6205
-
19503190389 SupportSupport
-
20503183100 WasherWasher
-
21207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
22233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
23570063600 Wheel CapWheel Cap
-
24572089000 Labyrinth SealLabyrinth Seal
-
25207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
26503190379 Tensioner SpacerTensioner Spacer
-
27503190380 TensionerTensioner
-
28207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
29233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
30230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
31233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
32503190254 Wheel 180 mm (Full Moon). Includes 32 to 33Wheel 180 mm (Full Moon). Includes 32 to 33
-
33503189567 Ball Bearing 6205Ball Bearing 6205
-
34503160700 Rear AxleRear Axle
-
35250000019 Hex Screw With NylonHex Screw With Nylon
-
36503183300 WasherWasher
-
37503189809 Outer SpacerOuter Spacer
-
38503182900 Inner Spacer (Short)Inner Spacer (Short)
-
39503190232 Wheel 180 Ass'Y (Black). Includes 39 to 40Wheel 180 Ass'Y (Black). Includes 39 to 40
-
40503189567 Ball Bearing 6205Ball Bearing 6205
-
41503183000 Spacer (Long)Spacer (Long)
-
42503180400 WasherWasher
-
43516001248 Suspension DecalSuspension Decal
