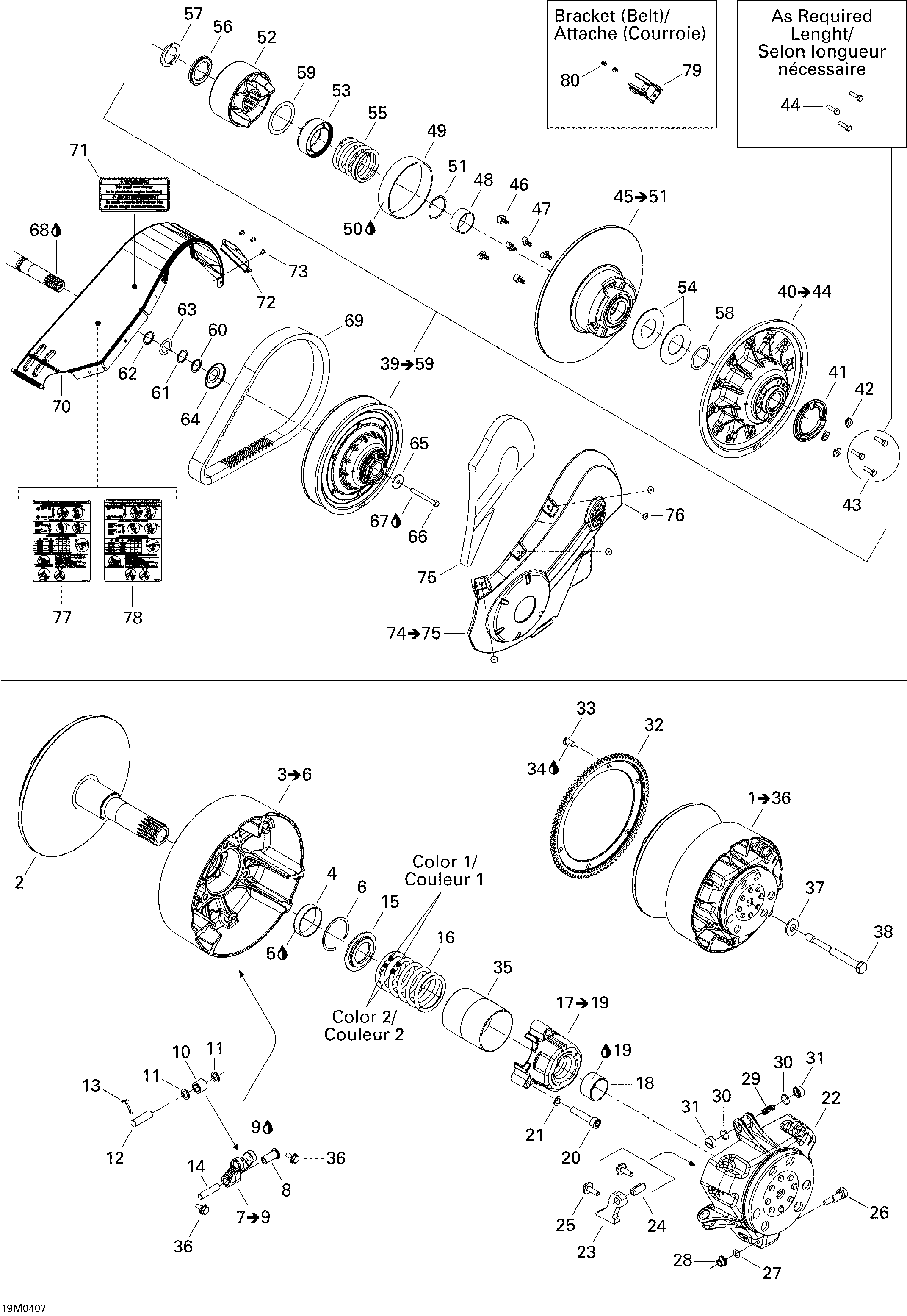

05- Pulley System для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
2417222294 Fixed Flange Ass'YFixed Flange Ass'Y
-
3417222181 Sliding Flange Ass'Y. Includes 3 to 6Sliding Flange Ass'Y. Includes 3 to 6
-
4417006900 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'Y. Includes 7 to 9Lever Ass'Y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'YRoller Ass'Y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16415034900 Spring (Violet/Blue)Spring (Violet/Blue)
-
17417007500 Spring Cover Ass'Y. Includes 17 to 19Spring Cover Ass'Y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor CupGovernor Cup
-
23417222596 Ramp 410Ramp 410
-
24250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
25250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
26417005500 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
29417005700 SpringSpring
-
30732401030 O-RingO-Ring
-
31417005800 Slider ShoeSlider Shoe
-
32417222669 Ring GearRing Gear
-
33236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
34293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
35417009205 GuardGuard
-
36210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126603 Fixed Flange Ass'Y. Includes 40 to 44Fixed Flange Ass'Y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417126851 Sliding Flange Ass'Y. Includes 45 to 51Sliding Flange Ass'Y. Includes 45 to 51
-
46417126373 Rear Cam Shoe SliderRear Cam Shoe Slider
-
47417126374 Front Cam Shoe SliderFront Cam Shoe Slider
-
49414978100 BushingBushing
-
50413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
51371911200 CirclipCirclip
-
52417126385 Cam Ass'YCam Ass'Y
-
53417126381 GuardGuard
-
54504099600 Thrust WasherThrust Washer
-
55417126687 Release Spring (Black)Release Spring (Black)
-
56417126733 SpacerSpacer
-
57417126734 Half KeyHalf Key
-
58504112300 ShimShim
-
59417126322 Swivel AbutmentSwivel Abutment
-
60417300231 SpacerSpacer
-
61417300054 SpacerSpacer
-
62417300231 SpacerSpacer
-
63504112000 ShimShim
-
64417300238 ProtectorProtector
-
65517302322 WasherWasher
-
66207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
67293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
68293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
69417300197 Drive BeltDrive Belt
-
70417300213 Belt GuardBelt Guard
-
71516001190 Warning LabelWarning Label
-
72417300216 Belt Guard BracketBelt Guard Bracket
-
73390402200 Rivet 3/16''Rivet 3/16''
-
74417300248 Side Protector Ass'Y. Includes 74 to 75Side Protector Ass'Y. Includes 74 to 75
-
75417300246 FoamFoam
-
76293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
77516001639 Suspension Adjustment Decal. GSX Sport / GSX LTDSuspension Adjustment Decal. GSX Sport / GSX LTD
-
78516001640 Suspension Adjustment Decal. GSX Sport 1+1 / GSX LTD 1+1Suspension Adjustment Decal. GSX Sport 1+1 / GSX LTD 1+1
-
79517281905 BracketBracket
-
80390402200 Rivet 3/16''Rivet 3/16''
