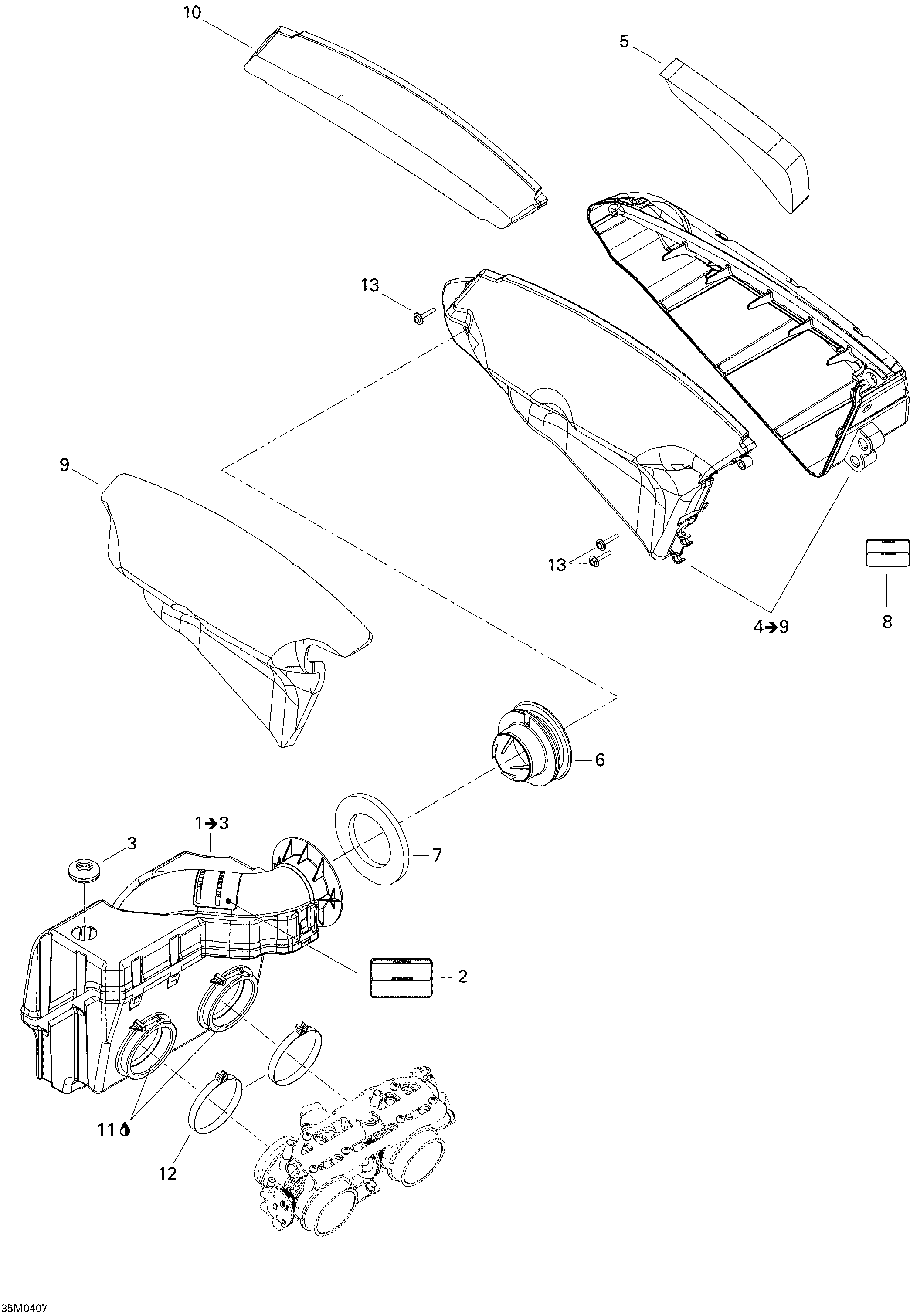

02- Air Intake System для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1508000370 Primary Chamber Assy. Includes 1 to 3Primary Chamber Assy. Includes 1 to 3
-
2516001191 Instruction LabelInstruction Label
-
3570065500 GrommetGrommet
-
4508000392 Secondary Chamber Assy. Includes 4 to 9Secondary Chamber Assy. Includes 4 to 9
-
5508000145 Inner FoamInner Foam
-
6508000240 GuideGuide
-
7508000199 Outer FoamOuter Foam
-
8516001191 Instruction LabelInstruction Label
-
9508000310 Outer FoamOuter Foam
-
10508000394 Air FilterAir Filter
-
11413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
12508000346 Gemi ClampGemi Clamp
-
13250000101 Screw M4 X 25Screw M4 X 25
