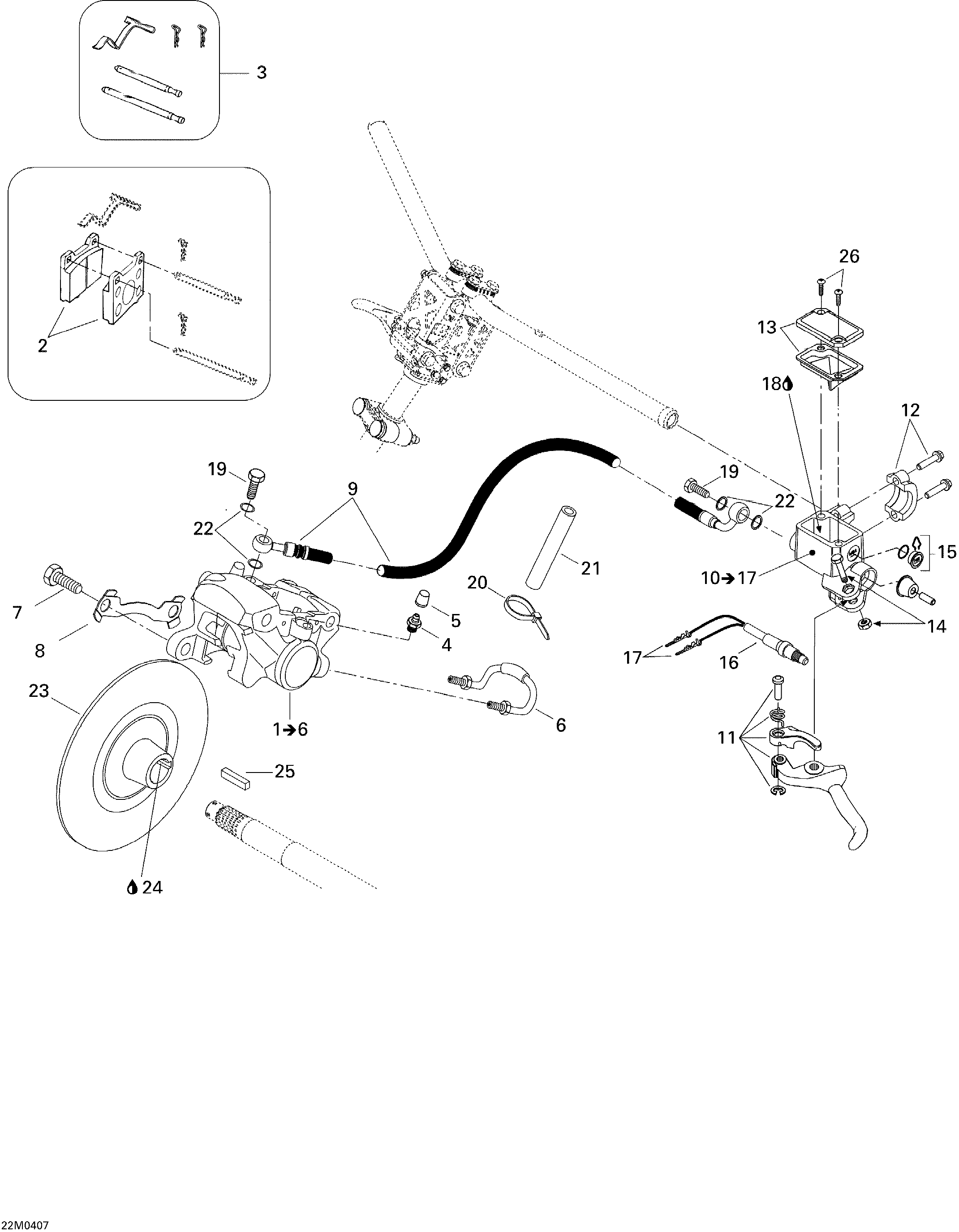

06- Hydraulic Brake для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1507032391 Caliper. Includes 1 to 6Caliper. Includes 1 to 6
-
2415053600 Brake Lining KitBrake Lining Kit
-
3414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
8507032316 Locking TabLocking Tab
-
9507032384 HoseHose
-
10507032362 Master Cylinder. Includes 10 to 17Master Cylinder. Includes 10 to 17
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp Ass'YClamp Ass'Y
-
13415029900 CapCap
-
14415030000 Pin Ass'YPin Ass'Y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male TerminalMale Terminal
-
18293600063 Brake Fluid, Srf (Dot 4)Brake Fluid, Srf (Dot 4)
-
18293600062 Brake Fluid, Gtlma (Dot 4) 12 X 354 mlBrake Fluid, Gtlma (Dot 4) 12 X 354 ml
-
19414920500 Banjo BoltBanjo Bolt
-
20293750002 Tie Rap 130 mmTie Rap 130 mm
-
20293750002 Tie Rap 130 mmTie Rap 130 mm
-
21415079900 Tubing (10 mm)Tubing (10 mm)
-
22414920600 WasherWasher
-
23507031300 Brake DiskBrake Disk
-
24293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
25507021300 KeyKey
-
26216141260 Screw M4 X 12Screw M4 X 12
