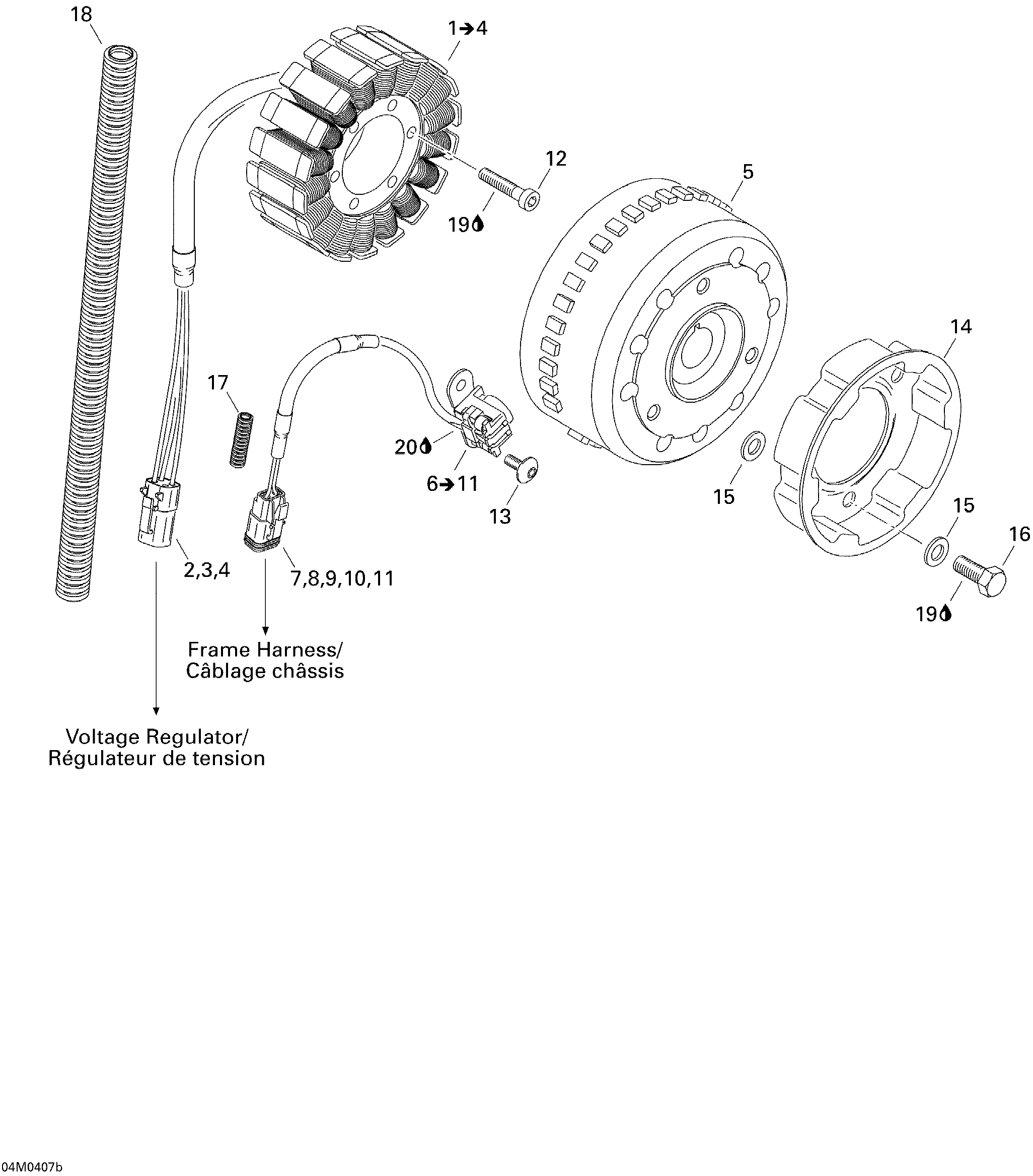

03- Magneto (12V, 480W) для BRP Ski-Doo GSX 600 HO SDI - 2004
-
№АртикулНазвание
-
1420866060 Stator Plate. Includes Items 1 to 4Stator Plate. Includes Items 1 to 4
-
2278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
3515175568 Male TerminalMale Terminal
-
4278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
5420866040 FlywheelFlywheel
-
6410922963 Pick-Up Ass'Y. Includes Items 6 to 11Pick-Up Ass'Y. Includes Items 6 to 11
-
7515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
8278000632 Female TerminalFemale Terminal
-
9278001661 Female TerminalFemale Terminal
-
10515175675 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
11293000052 PlugPlug
-
12420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
13420640321 Taptite ScrewTaptite Screw
-
14420852532 Starting PulleyStarting Pulley
-
15420827405 Flat WasherFlat Washer
-
16207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
17420660911 TubeTube
-
18420460012 TubeTube
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
