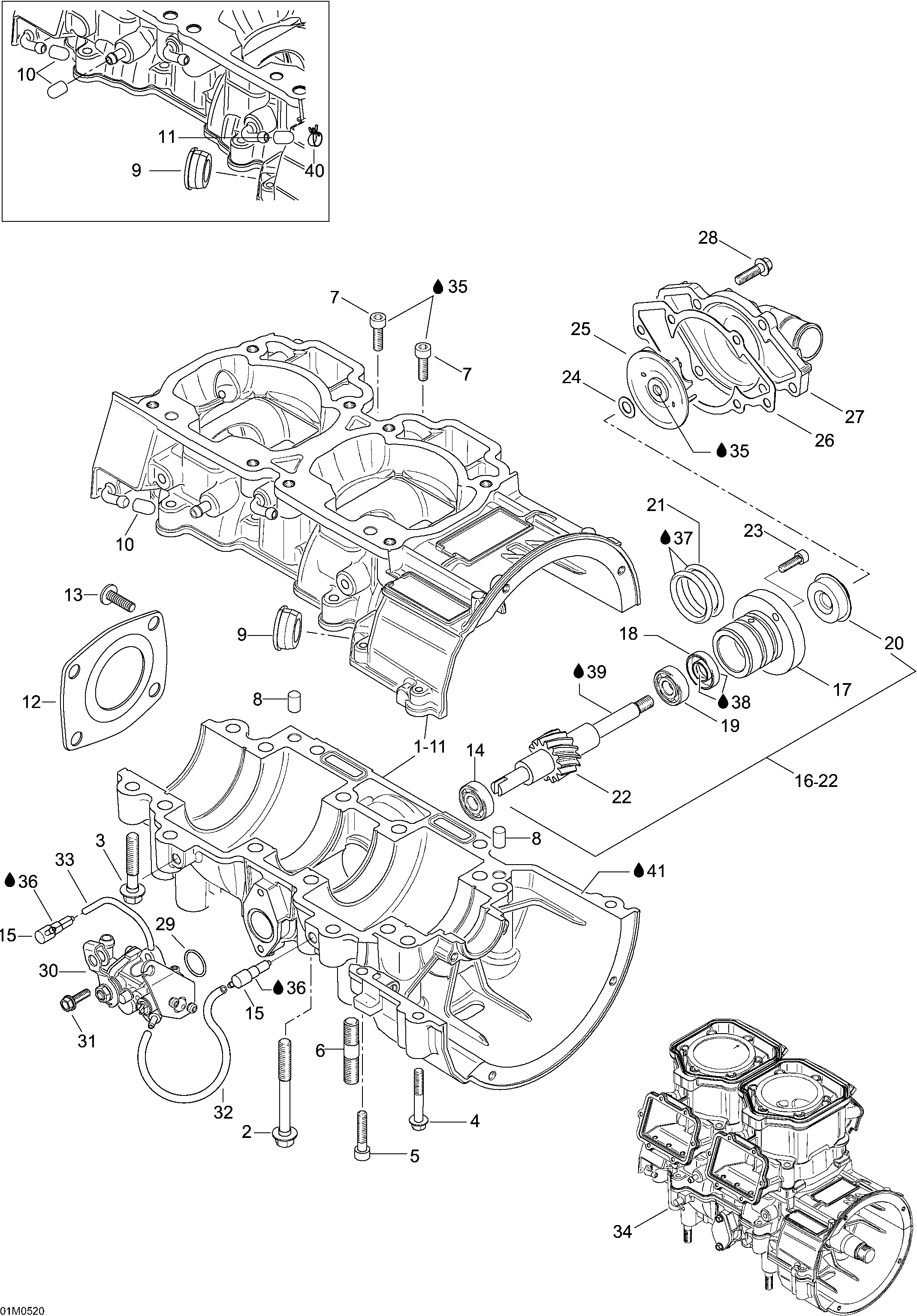

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1420889613 Crankcase Assy.. Includes 1 to 11Crankcase Assy.. Includes 1 to 11
-
2420640836 Hex Collar Screw M8 X 75Hex Collar Screw M8 X 75
-
3420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
4420640311 Hex Collar Screw M6 X 45Hex Collar Screw M6 X 45
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420940704 Stud M10Stud M10
-
7420840401 Socket Head Screw M6 X 22Socket Head Screw M6 X 22
-
8420632010 Center PinCenter Pin
-
9420860965 Cable GrommetCable Grommet
-
10420960770 CapCap
-
11420960777 CapCap
-
12420812420 CoverCover
-
13420941430 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
14420232100 Ball BearingBall Bearing
-
15420956510 Check ValveCheck Valve
-
16420837421 Water Pump/Oil Pump Ass'Y. Includes 16 to 22Water Pump/Oil Pump Ass'Y. Includes 16 to 22
-
18420230196 Oil SealOil Seal
-
19420232100 Ball BearingBall Bearing
-
20420650370 Rotary SealRotary Seal
-
21420950890 O-RingO-Ring
-
23420840511 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
24420227945 WasherWasher
-
25420222505 Water ImpellerWater Impeller
-
26420931810 GasketGasket
-
27420922630 Water Pump HousingWater Pump Housing
-
28420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
29293300041 O-ringO-ring
-
30420888780 Oil Pump Ass'YOil Pump Ass'Y
-
31420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
32414413800 Oil LineOil Line
-
33414413800 Oil LineOil Line
-
34420059371 Short Block ''593 SDI''Short Block ''593 SDI''
-
35293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
36413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
37413707000 Molykote 111, 150 GMolykote 111, 150 G
-
38420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
39420899010 Transmission OilTransmission Oil
-
40414420700 Spring ClampSpring Clamp
-
41293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
