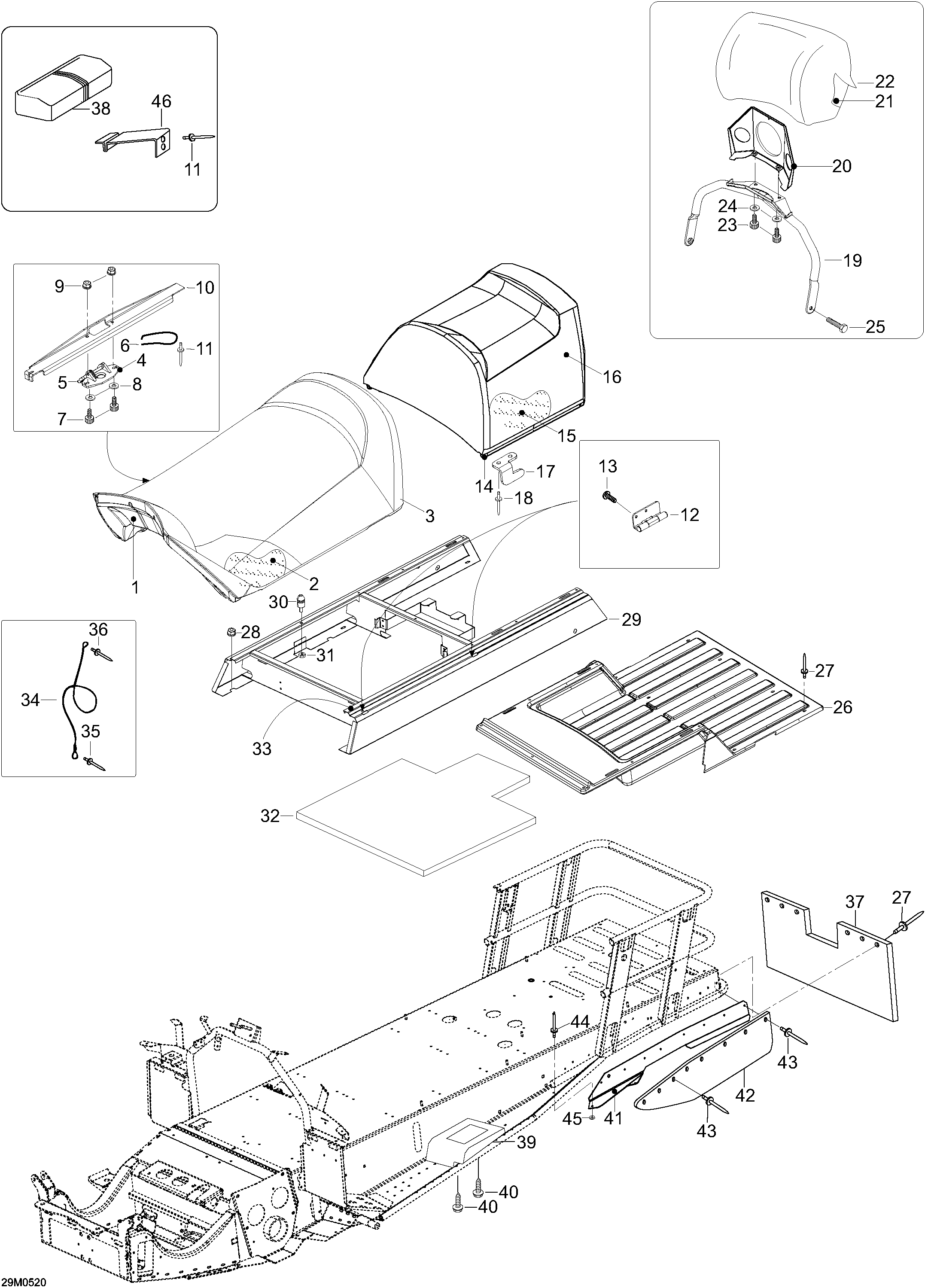

09- Seat для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1605251388 Seat Base, FrontSeat Base, Front
-
2605251389 Foam. FrontFoam. Front
-
3605251422 Cover, FrontCover, Front
-
4269700076 CapCap
-
5269700077 HandleHandle
-
6269700017 SpringSpring
-
7M40276 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8234061410 Flat Washer M6Flat Washer M6
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10605352483 Support PlateSupport Plate
-
11M36083 RivetRivet
-
12605351798 HingeHinge
-
13M40890 Screw 4,2 X 16Screw 4,2 X 16
-
14605251390 Seat Base, RearSeat Base, Rear
-
15605251391 Foam, RearFoam, Rear
-
16605251425 CoverCover
-
17605351808 LH HookLH Hook
-
17605352007 RH HookRH Hook
-
18M36087 RivetRivet
-
19605251730 BackrestBackrest
-
20605252096 Support PlateSupport Plate
-
21605252104 FoamFoam
-
22605251431 CoverCover
-
23M40066 Hex Screw M8 X 16Hex Screw M8 X 16
-
24234181401 Lock Washer M8Lock Washer M8
-
25M40337 Hex ScrewHex Screw
-
26605151397 CoverCover
-
27M36036 Rivet-BlackRivet-Black
-
28M33200 Nut M6Nut M6
-
29605252651 Seat BaseSeat Base
-
30605452035 Lock PinLock Pin
-
31232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
32605352460 FoamFoam
-
33M28413 Sealing StripSealing Strip
-
34M546777 Retainer CableRetainer Cable
-
35M36037 RivetRivet
-
36M36489 RivetRivet
-
37M538629 Snow GuardSnow Guard
-
38605352219 Tool SetTool Set
-
39414975300 RH Rear FootrestRH Rear Footrest
-
39414975400 LH Rear FootrestLH Rear Footrest
-
40M40870 Hex Tapping ScrewHex Tapping Screw
-
41605251249 RH Side Snow GuardRH Side Snow Guard
-
41605251248 LH Side Snow GuardLH Side Snow Guard
-
42M5142828 Lateral Snow GuardLateral Snow Guard
-
43M36097 RivetRivet
-
44M36005 RivetRivet
-
45M20008 Washer 5 mmWasher 5 mm
-
46M5346728 Spring PlateSpring Plate
