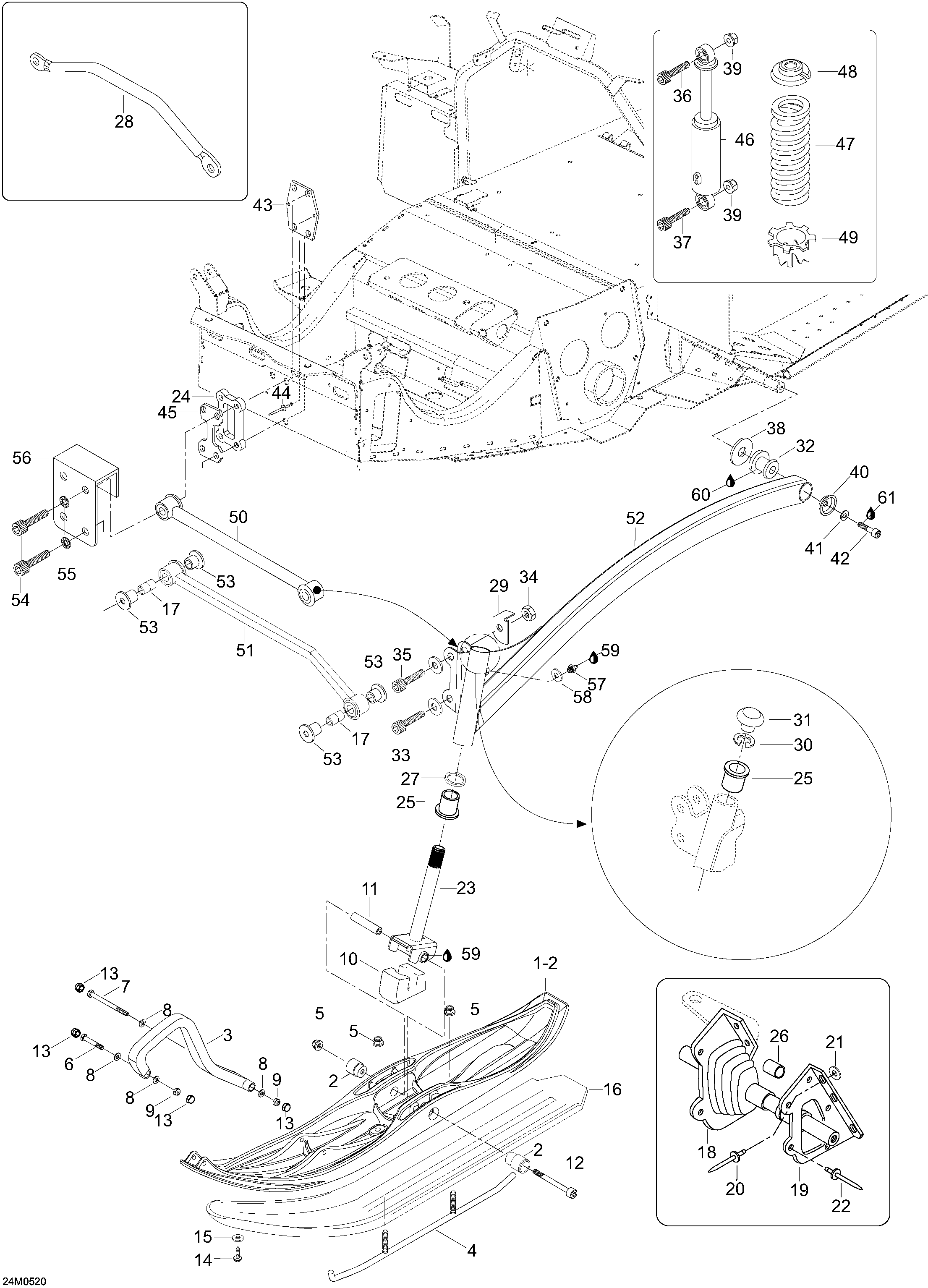

07- Front Suspension And Ski для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1605148440 Ski Plastic Ski Ass'y. Includes 1 to 2Ski Plastic Ski Ass'y. Includes 1 to 2
-
2605348392 BushingBushing
-
3505070963 Handle, Black, B-160Handle, Black, B-160
-
4605352283 Carbide Ski RunnerCarbide Ski Runner
-
5M33074 NutNut
-
6207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
7M40264 Hex Screw M8 X 90Hex Screw M8 X 90
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10605352274 Ski StopperSki Stopper
-
11506133300 SpacerSpacer
-
12M40225 Hex Screw M10 X 140Hex Screw M10 X 140
-
13M28056 CapCap
-
14M40901 Hex ScrewHex Screw
-
15M20037 WasherWasher
-
16605158633 Ski LinerSki Liner
-
17605450024 BushingBushing
-
18570024800 RH Tie Rod CapRH Tie Rod Cap
-
18570024900 LH Tie Rod CapLH Tie Rod Cap
-
19605350120 RH Cover PlateRH Cover Plate
-
19605350119 LH Cover PlateLH Cover Plate
-
20M36037 RivetRivet
-
21M20008 Washer 5 mmWasher 5 mm
-
22M36009 RivetRivet
-
23506151234 Ski LegSki Leg
-
24605350191 Spacer 17.5Spacer 17.5
-
25505070003 CushionCushion
-
26572036500 BushingBushing
-
27505070004 WasherWasher
-
28605352875 Support ShaftSupport Shaft
-
29605448861 RH Plate LockingRH Plate Locking
-
29605448862 LH Plate LockingLH Plate Locking
-
30371910400 CirclipCirclip
-
31572091300 CapCap
-
32570062200 DamperDamper
-
33M40371 Screw Allen M12 X 55Screw Allen M12 X 55
-
34232521414 Hex Elastic Stop Nut M12Hex Elastic Stop Nut M12
-
35M40306 Allen Screw M12 X 60Allen Screw M12 X 60
-
36M40837 Screw M10 X 55Screw M10 X 55
-
37M40136 Socket Head Screw. M10 X 50Socket Head Screw. M10 X 50
-
38503146700 WasherWasher
-
39233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
40506115800 CupCup
-
41234181401 Lock Washer M8Lock Washer M8
-
42M40810 Screw Allen M8 X 20Screw Allen M8 X 20
-
43605450675 PlatePlate
-
44M36005 RivetRivet
-
45605450900 Middle PlateMiddle Plate
-
46M23183 Front ShockFront Shock
-
47M25067 SpringSpring
-
48M230076 Spring StopperSpring Stopper
-
49M230078 CamCam
-
50605350022 Upper Arm AssyUpper Arm Assy
-
51605252224 Lower ArmLower Arm
-
52605251498 RH Swing ArmRH Swing Arm
-
52605251499 LH Swing ArmLH Swing Arm
-
53506149100 CushionCushion
-
54M40370 Screw Allen M12 X 75Screw Allen M12 X 75
-
55M20074 Lock WasherLock Washer
-
56605350192 PlatePlate
-
57M34011 Grease FittingGrease Fitting
-
58234061410 Flat Washer M6Flat Washer M6
-
59219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
60293550030 Grease, Super LubeGrease, Super Lube
-
61293800060 Loctite 243, 250 mlLoctite 243, 250 ml
