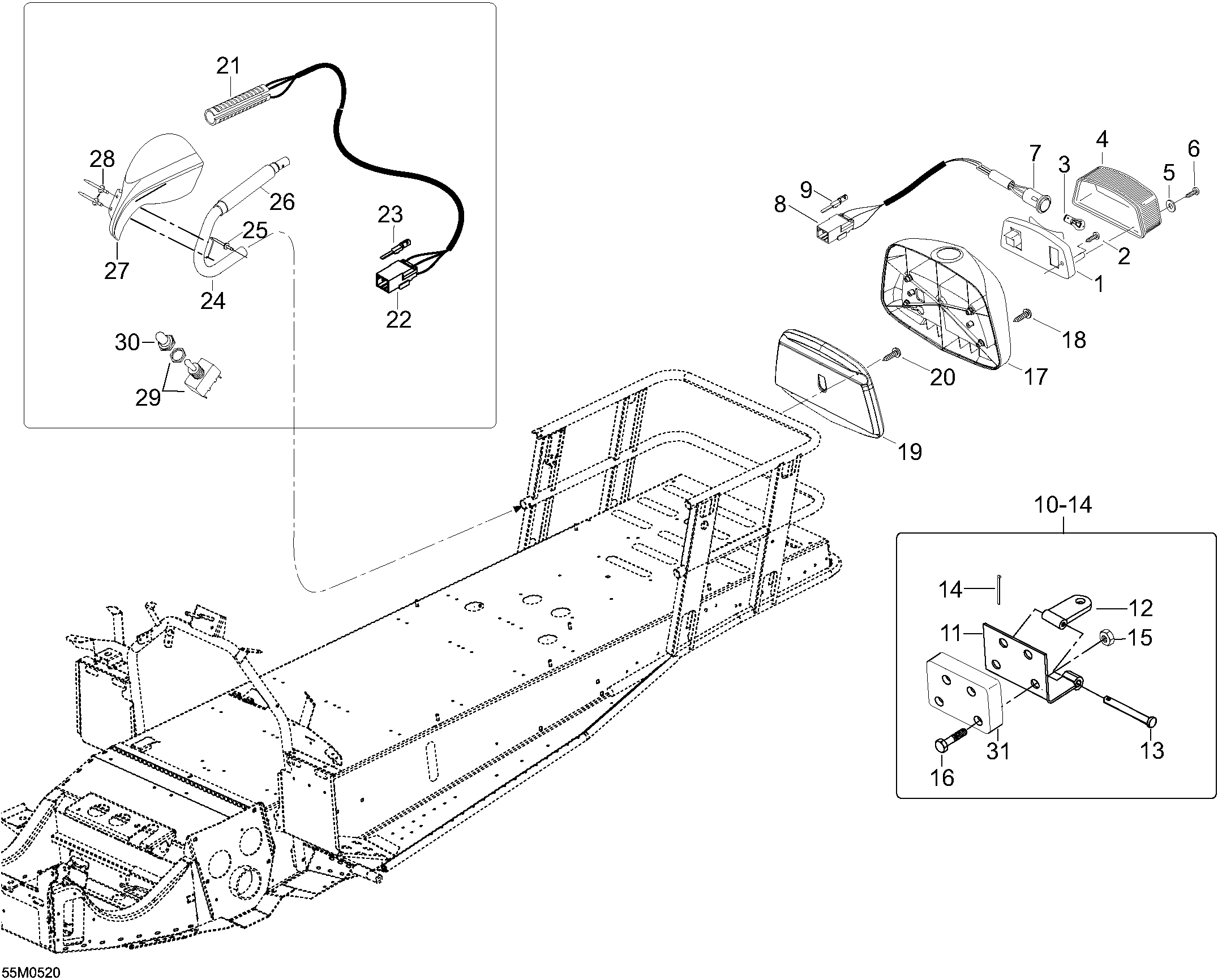

09- Frame and Components для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1515175397 Lamp HousingLamp Housing
-
2M40207 Screw 4.8 X 45Screw 4.8 X 45
-
3410504100 Tail Lamp BulbTail Lamp Bulb
-
4414513700 LensLens
-
5209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
6414516300 ScrewScrew
-
7515175852 AdapterAdapter
-
8M42606 Connector HousingConnector Housing
-
9M42614 Female ConnectorFemale Connector
-
11M5344151 PlatePlate
-
12M548745 Hitch PlateHitch Plate
-
13560309200 Pin-RetainerPin-Retainer
-
14M41031 PinPin
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16207084544 Hex Screw M8 X 45Hex Screw M8 X 45
-
17605251392 Mold Tail LampMold Tail Lamp
-
18M40206 Screw 4.8 X 25Screw 4.8 X 25
-
19605251963 BaseBase
-
20M40322 ScrewScrew
-
21515175573 Heating GripHeating Grip
-
22M42271 Male Connector HousingMale Connector Housing
-
23M42603 Male TerminalMale Terminal
-
24605251810 RH GripRH Grip
-
24605251811 LH GripLH Grip
-
25M36083 RivetRivet
-
26415050300 RH Grip (250 mm)RH Grip (250 mm)
-
27572089400 RH ProtectorRH Protector
-
27572089500 LH ProtectorLH Protector
-
28M36037 RivetRivet
-
29410107300 Switch (Heating Grip)Switch (Heating Grip)
-
30515175281 Switch CoverSwitch Cover
-
31605351510 SpacerSpacer
