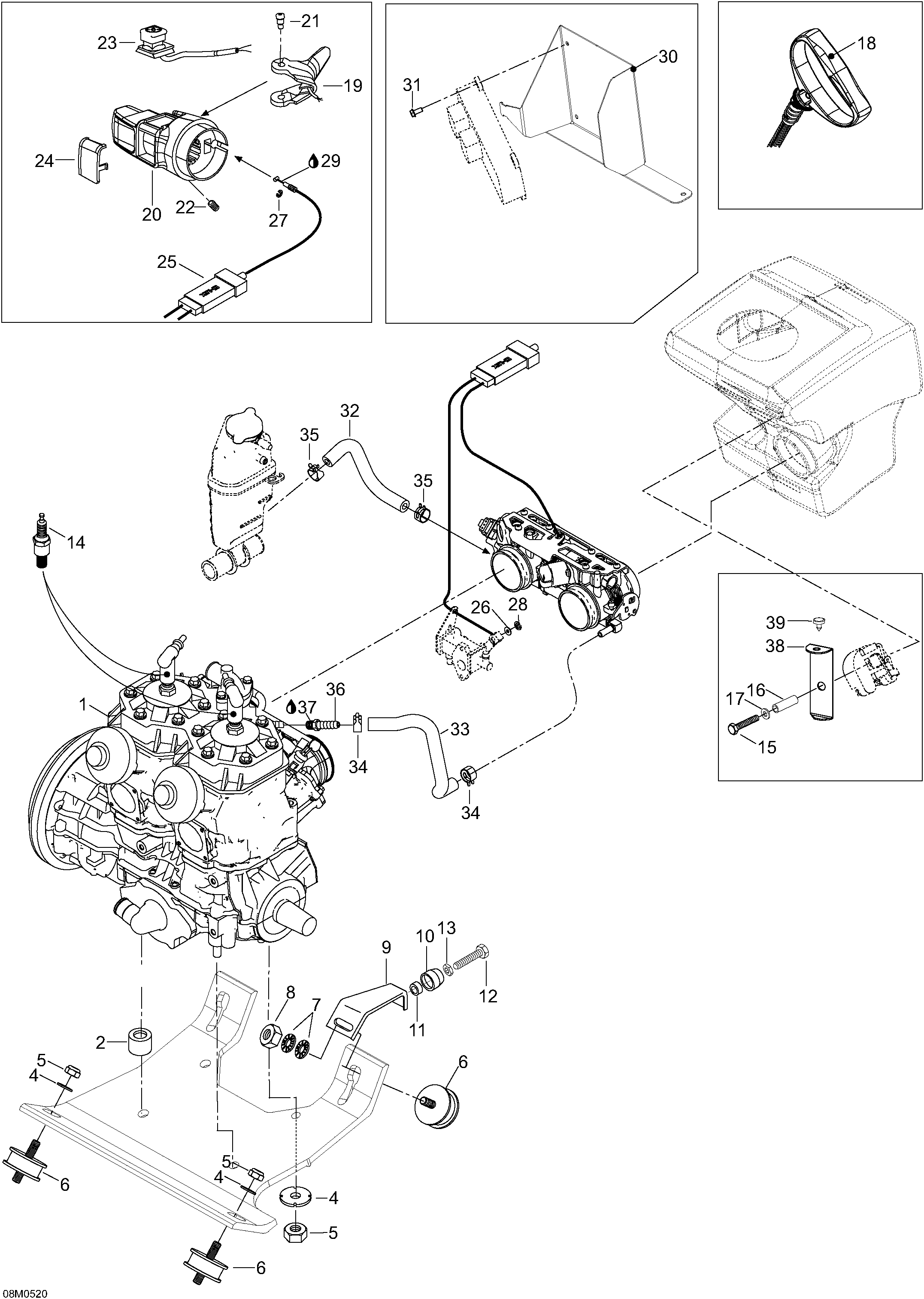

01- Engine And Engine Support для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
2M5446347 SleeveSleeve
-
3605251437 Engine SupportEngine Support
-
4512056700 Lock WasherLock Washer
-
5233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
6570128700 Rubber MountRubber Mount
-
7M20068 Lock WasherLock Washer
-
8232006414 Hex Nut M10Hex Nut M10
-
9605352447 SupportSupport
-
10605449240 SleeveSleeve
-
11M2846014 Rubber WasherRubber Washer
-
12M40121 Hex Screw M8 X 25Hex Screw M8 X 25
-
13M33003 NutNut
-
14415128524 Spark Plug (Br9Ecs)Spark Plug (Br9Ecs)
-
15M40193 ScrewScrew
-
16512059812 SpacerSpacer
-
17234161471 Lock Washer 6 mmLock Washer 6 mm
-
18572084400 Starter GripStarter Grip
-
19512059481 Throttle HandleThrottle Handle
-
20512059763 Throttle HousingThrottle Housing
-
21732601143 Flanged ScrewFlanged Screw
-
22414440800 Set Screw M8 X 10Set Screw M8 X 10
-
23515175410 Kill SwitchKill Switch
-
24572100901 Switch CoverSwitch Cover
-
25512059362 Throttle CableThrottle Cable
-
26234081100 Flat Washer 8 mmFlat Washer 8 mm
-
27M31035 CirclipCirclip
-
28M31038 CirclipCirclip
-
29293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
30605351707 Support Plate, EcuSupport Plate, Ecu
-
31M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
32509000093 Hose 8 mmHose 8 mm
-
33512059990 Formed HoseFormed Hose
-
34414655700 Spring ClampSpring Clamp
-
35293650170 Tridon Hose ClampTridon Hose Clamp
-
36512059970 Male Connector 1/8''-27 NptMale Connector 1/8''-27 Npt
-
37293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
38605352895 Support, HoodSupport, Hood
-
39605452114 PlugPlug
