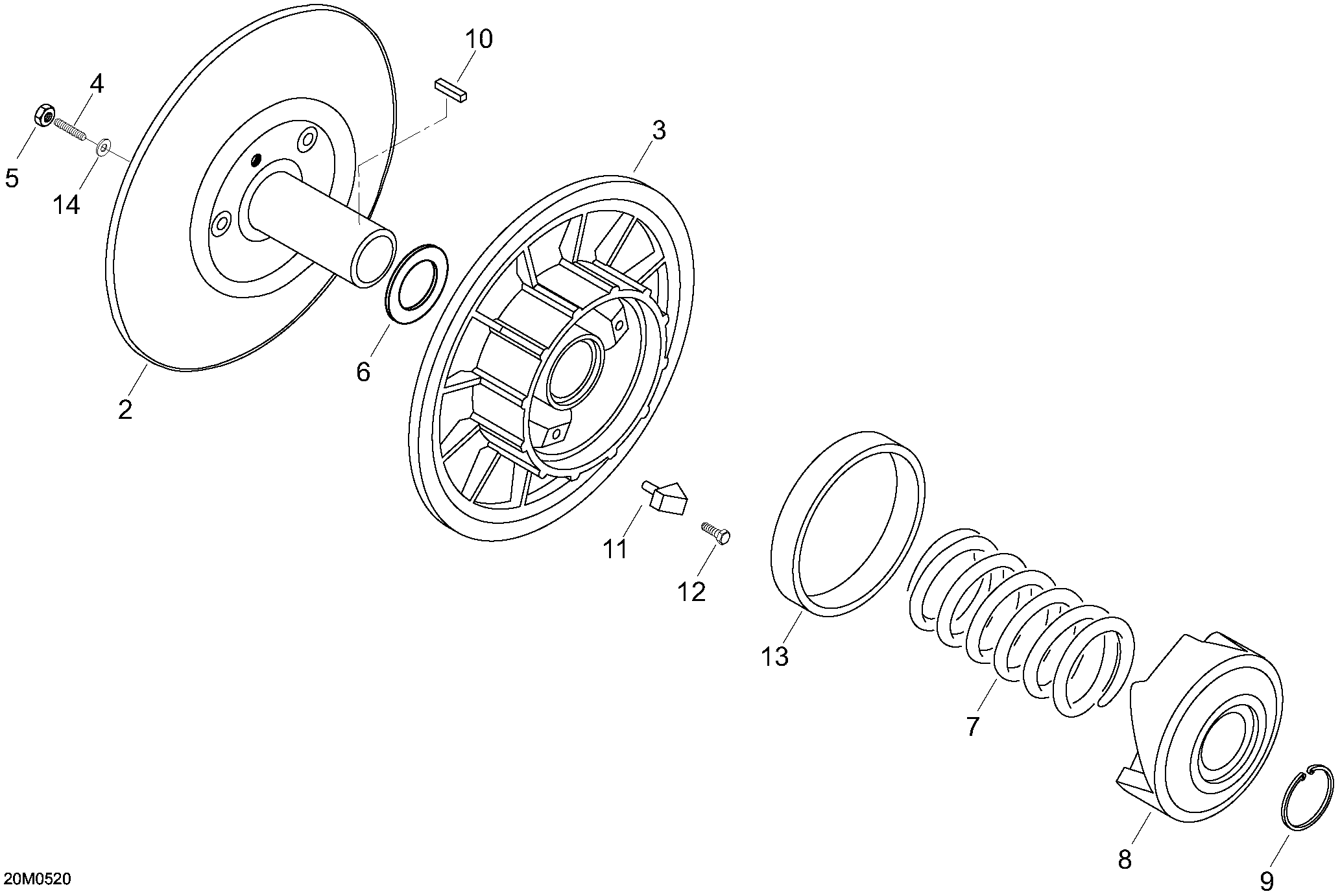

05- Driven Pulley для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
2M140065 Fixed FlangeFixed Flange
-
3M140066 Sliding FlangeSliding Flange
-
5232061414 Hex Nut M6Hex Nut M6
-
6504099600 Stopper WasherStopper Washer
-
7M140069 Release Spring, BlackRelease Spring, Black
-
8M140070 Cam 35/30 Degr.Cam 35/30 Degr.
-
9371903100 CirclipCirclip
-
10417119400 KeyKey
-
11M140068 Shoe Cam SliderShoe Cam Slider
-
12210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
13M140053 BushingBushing
-
14420245370 WasherWasher
