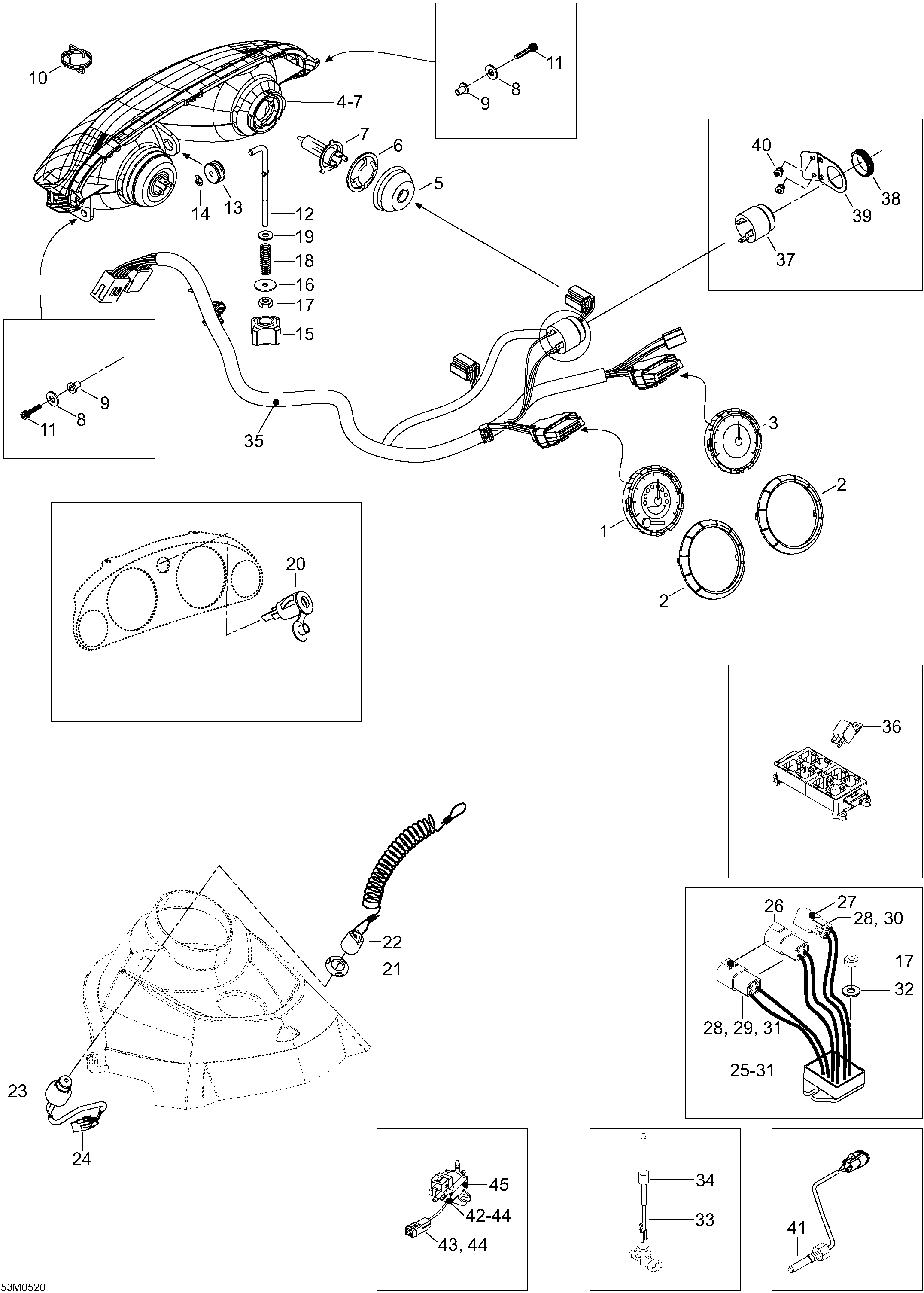

10- Electrical Accessories для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1515176244 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515176275 TachometerTachometer
-
4515176273 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
5410607100 Protector CapProtector Cap
-
6410608300 Bulb HolderBulb Holder
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8M20008 Washer 5 mmWasher 5 mm
-
9250100018 Nut M5Nut M5
-
10M5447238 SpringSpring
-
11M40235 Screw M5X35Screw M5X35
-
12605450023 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
14732610072 Push NutPush Nut
-
15515175548 HandleHandle
-
16M20038 WasherWasher
-
17232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18415100600 SpringSpring
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20M42026 Current OutletCurrent Outlet
-
21278000508 NutNut
-
22515166900 Dess CapDess Cap
-
23515175145 Dess SwitchDess Switch
-
24M42603 Male TerminalMale Terminal
-
25515176243 Voltage Regulator. Includes 25 to 31Voltage Regulator. Includes 25 to 31
-
26278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
27278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
28515175568 Male TerminalMale Terminal
-
29278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
30278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
31293000052 Sealing CapSealing Cap
-
32M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
33414681800 Level SwitchLevel Switch
-
34414681900 FloatFloat
-
35605149624 Wiring HarnessWiring Harness
-
36410113604 RelayRelay
-
37515176035 HornHorn
-
38414805101 Plastic NutPlastic Nut
-
39M5447941 HolderHolder
-
40M36005 RivetRivet
-
41515176132 Temperature SensorTemperature Sensor
-
42515176256 Heater. Includes 42 to 44Heater. Includes 42 to 44
-
43515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
44515175232 Male TerminalMale Terminal
-
45512059809 Heating Element BracketHeating Element Bracket
