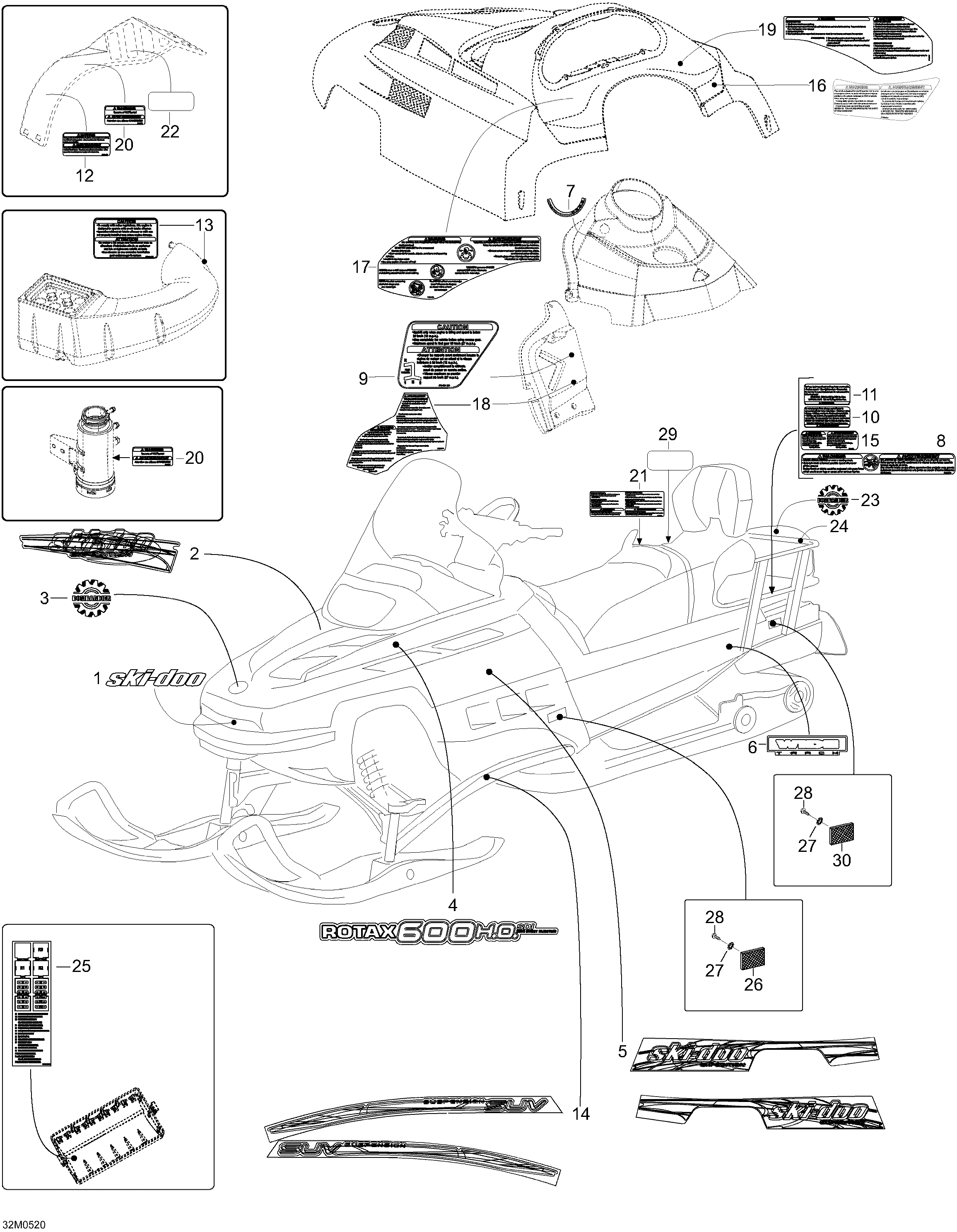

09- Decals для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516002720 Hood Decal, Middle. B-207, SeashoreHood Decal, Middle. B-207, Seashore
-
2516002500 Hood Decal, Middle. B-160, BlackHood Decal, Middle. B-160, Black
-
3704900130 Bombardier LogoBombardier Logo
-
4516002498 Hood Decals. B-207, SeashoreHood Decals. B-207, Seashore
-
4516002505 Hood Decals. B-160, BlackHood Decals. B-160, Black
-
5516002157 RH Side Hood Decal. B-207, SeashoreRH Side Hood Decal. B-207, Seashore
-
5516002502 RH Side Hood Decal. B-160, BlackRH Side Hood Decal. B-160, Black
-
5516002158 LH Side Hood Decal. B-207, SeashoreLH Side Hood Decal. B-207, Seashore
-
5516002503 LH Side Hood Decal. B-160, BlackLH Side Hood Decal. B-160, Black
-
6516000024 Frame DecalFrame Decal
-
7516001335 Dess DecalDess Decal
-
8516002673 Warning DecalWarning Decal
-
9516001201 Reverse DecalReverse Decal
-
10516002667 Warning Label, Security, HitchWarning Label, Security, Hitch
-
11516002685 Warning Label, Security, HitchWarning Label, Security, Hitch
-
12516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
13516001191 Caution Label (Air Intake)Caution Label (Air Intake)
-
14516002159 RH Arm Decal. B-207, SeashoreRH Arm Decal. B-207, Seashore
-
14516002521 RH Arm Decal. B-160, BlackRH Arm Decal. B-160, Black
-
14516002160 LH Arm Decal. B-207, SeashoreLH Arm Decal. B-207, Seashore
-
14516002522 LH Arm Decal. B-160, BlackLH Arm Decal. B-160, Black
-
15516002666 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
16516002692 Instruction LabelInstruction Label
-
17516002693 Instruction LabelInstruction Label
-
18516002694 Instruction LabelInstruction Label
-
19516002695 Instruction LabelInstruction Label
-
20516002664 Security LabelSecurity Label
-
21516002853 Instruction LabelInstruction Label
-
22605452660 Instruction LabelInstruction Label
-
23516002487 Bombardier LogoBombardier Logo
-
24605448799 Pulling Bar DecalPulling Bar Decal
-
25605452666 Label, FuseLabel, Fuse
-
26414510200 Reflector (Amber)Reflector (Amber)
-
27234415418 Serrated Lock WasherSerrated Lock Washer
-
28M40070 ScrewScrew
-
29418001800 Heat Grip DecalHeat Grip Decal
-
30414510100 Reflector (Red)Reflector (Red)
