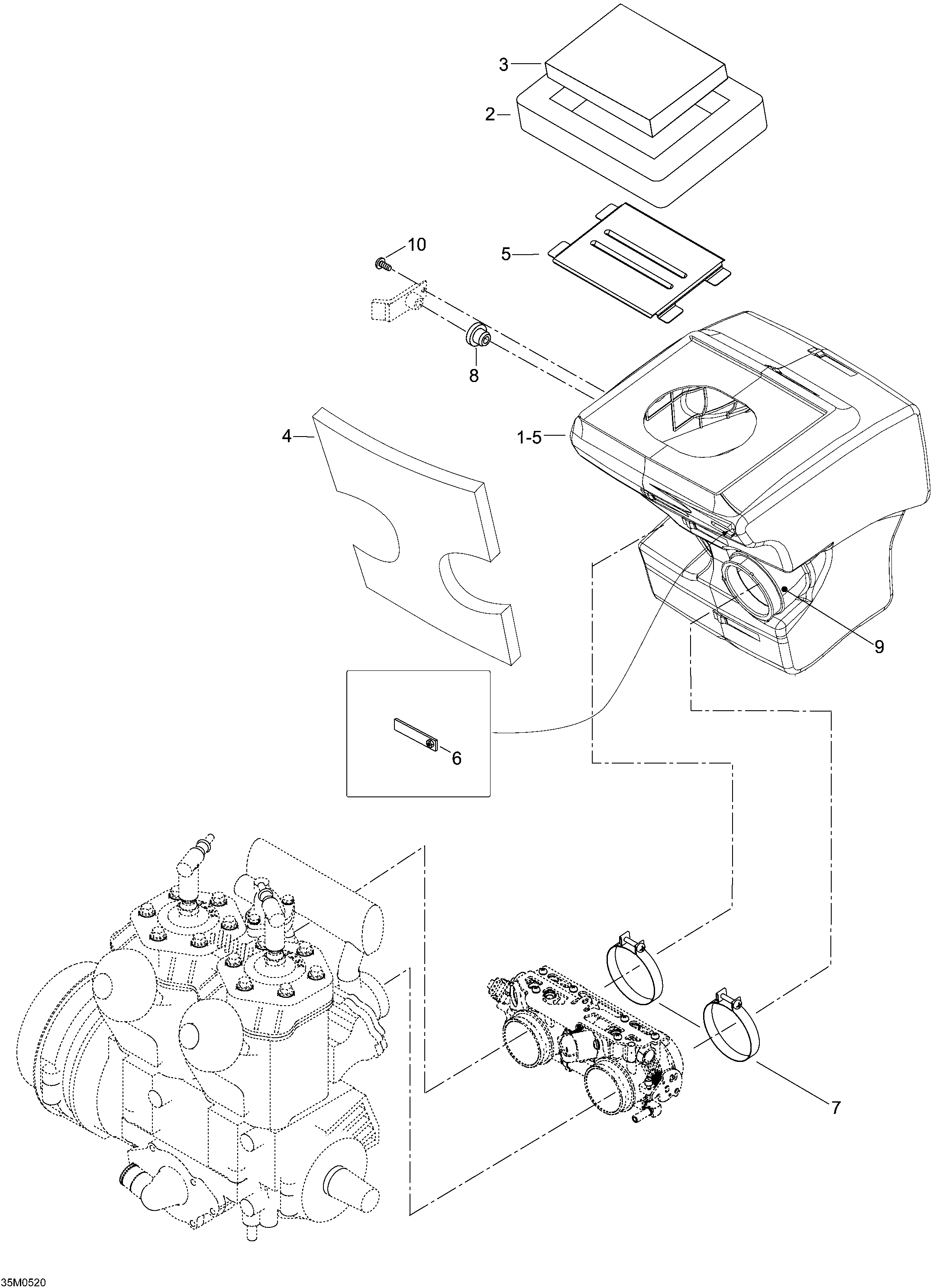

02- Air Intake System для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1605251447 Air Intake Ass'y. Includes 1 to 5Air Intake Ass'y. Includes 1 to 5
-
2605352046 SealSeal
-
3605352047 FilterFilter
-
4605352048 FoamFoam
-
5508000004 Intake GrillIntake Grill
-
6605452851 Bracket, Ignition CoilBracket, Ignition Coil
-
7508000382 Gemi ClampGemi Clamp
-
8570065500 GrommetGrommet
-
9605351756 Intake AdaptorIntake Adaptor
-
10M40905 Screw M6 X 16Screw M6 X 16
