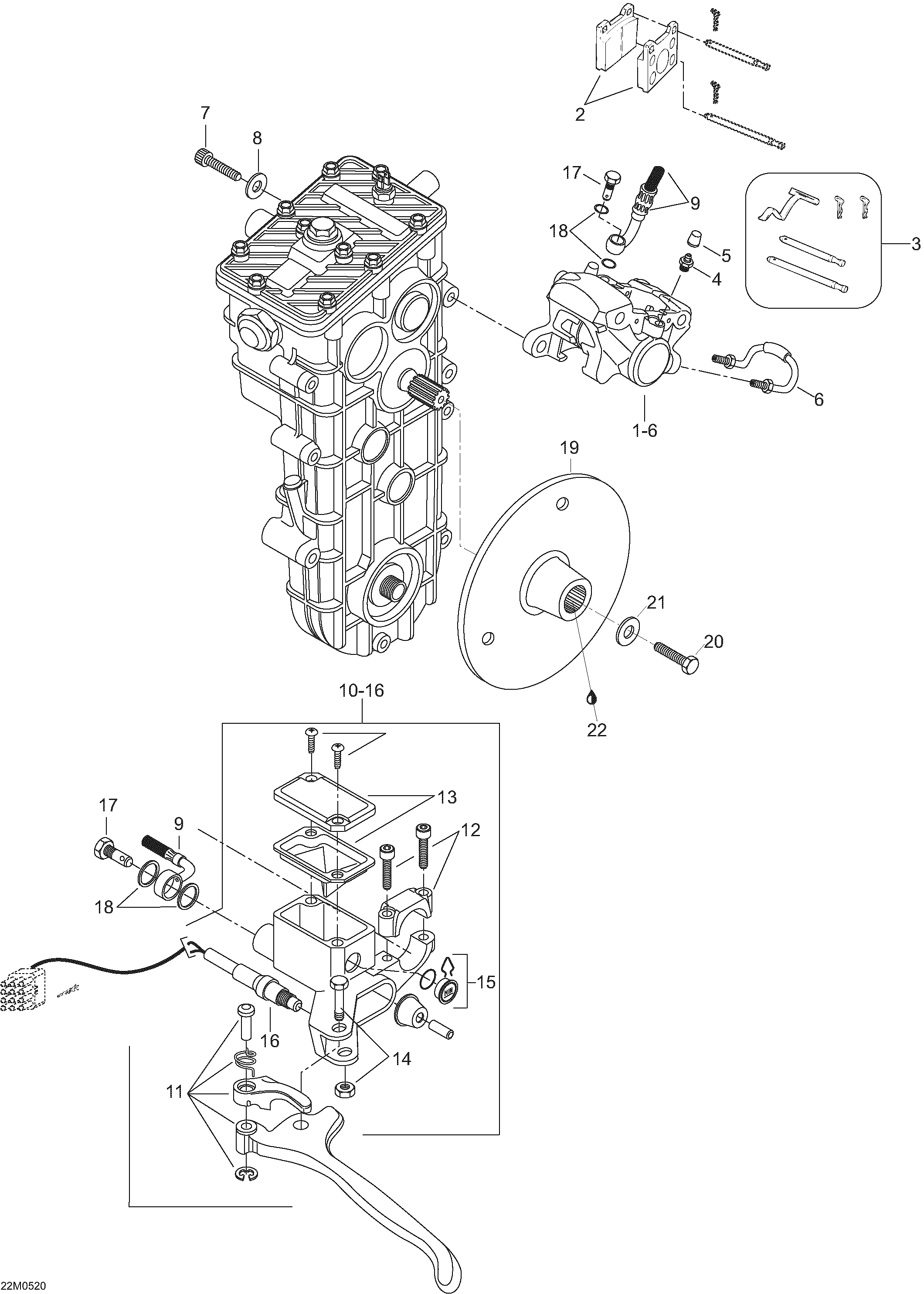

06- Hydraulic Brake для BRP Ski-Doo Expedition 600 H.O. SDI - 2005
-
№АртикулНазвание
-
1507032412 Caliper. Includes 1 to 6Caliper. Includes 1 to 6
-
2415084600 Brake Pad KitBrake Pad Kit
-
3414990700 Kit (pins, Retainers, Spring)Kit (pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7M40277 Socket Head Screw M10 X 65Socket Head Screw M10 X 65
-
8M20068 Lock WasherLock Washer
-
9507032237 HoseHose
-
10507032362 Master Cylinder. Includes 10 to 16Master Cylinder. Includes 10 to 16
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp Ass'YClamp Ass'Y
-
13415029900 CapCap
-
14415030000 Pin Ass'YPin Ass'Y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
16a216141260 Screw M4 X 12Screw M4 X 12
-
17414920500 Banjo BoltBanjo Bolt
-
18414920600 WasherWasher
-
19M5344710 Brake DiskBrake Disk
-
20M40336 Screw M8 X 20Screw M8 X 20
-
21M546336 WasherWasher
-
22293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
