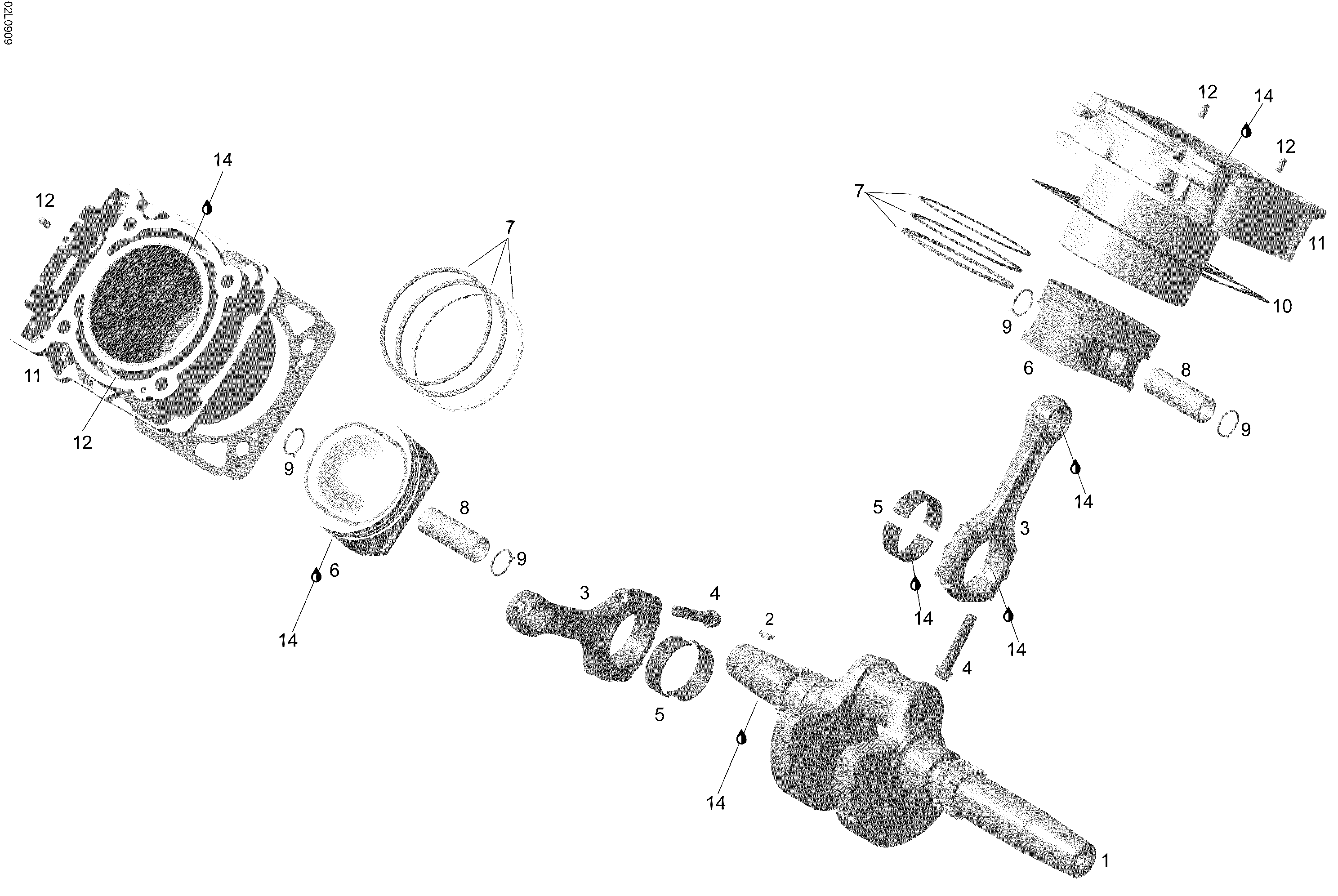

01- Cylinder and Cylinder Head для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1420819355 Crankshaft Ass'yCrankshaft Ass'y
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3420217425 Connecting Rod Ass'yConnecting Rod Ass'y
-
4420641640 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6420296775 Piston Ass'y, 90.958 mmPiston Ass'y, 90.958 mm
-
6420296776 Piston Ass'y, Oversize, 91.208 mmPiston Ass'y, Oversize, 91.208 mm
-
7420296774 Piston Ring SetPiston Ring Set
-
8420216270 Piston PinPiston Pin
-
9420845106 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420613586 Cylinder Ass'yCylinder Ass'y
-
12420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
13420684133 Gasket SetGasket Set
-
14293600054 Synth Oil 4T 12x1Synth Oil 4T 12x1
