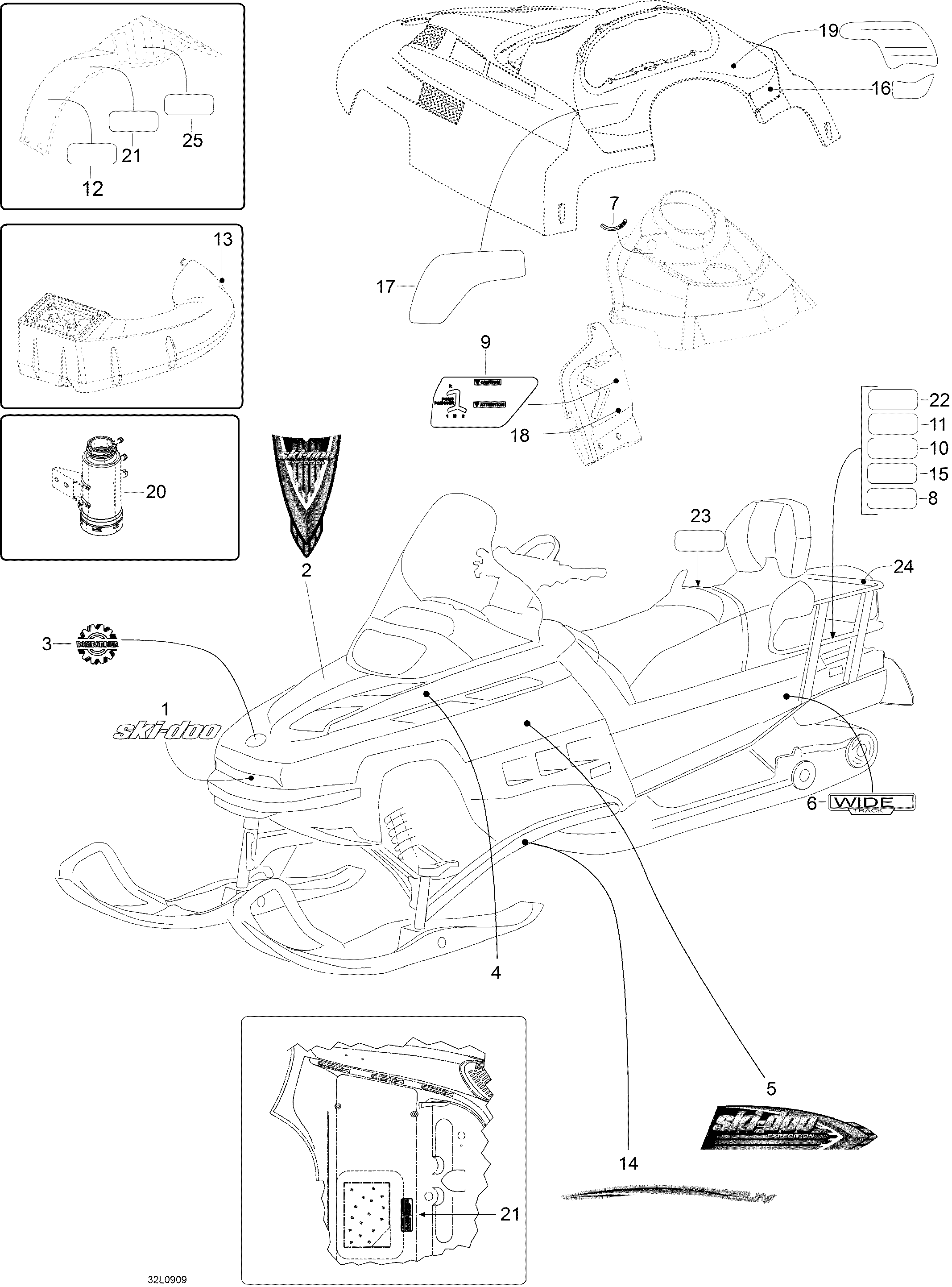

09- Decals для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516003467 Hood DecalHood Decal
-
2516003195 Hood Decal. EuropeHood Decal. Europe
-
3219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
4516003409 Hood Decal, Rotax V800 4-TECHood Decal, Rotax V800 4-TEC
-
5516003469 RH Side DecalRH Side Decal
-
5516003241 RH Side Decal. EuropeRH Side Decal. Europe
-
5516003468 LH Side DecalLH Side Decal
-
5516003242 LH Side Decal. EuropeLH Side Decal. Europe
-
6516003466 Frame Decal, WidetrackFrame Decal, Widetrack
-
6516002712 Frame Decal. EuropeFrame Decal. Europe
-
8516002673 Warning DecalWarning Decal
-
9516001201 Reverse DecalReverse Decal
-
10516002667 Warning Label, Security, HitchWarning Label, Security, Hitch
-
11516003037 Warning Decal-Security-EnglishWarning Decal-Security-English
-
12516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
13516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
14516003200 DecalDecal
-
14516003201 DecalDecal
-
15516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
16516003470 Instruction DecalInstruction Decal
-
16516003470 Instruction Decal. EuropeInstruction Decal. Europe
-
17516002693 Instruction LabelInstruction Label
-
18516003472 Instruction DecalInstruction Decal
-
18516002963 Warning Label. EuropeWarning Label. Europe
-
19516003473 Instruction DecalInstruction Decal
-
20516001791 Decal - Checking Engine Oil LevelDecal - Checking Engine Oil Level
-
21516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
22605448799 Pulling Bar DecalPulling Bar Decal
-
23516003474 Security LabelSecurity Label
-
24605448799 Pulling Bar DecalPulling Bar Decal
