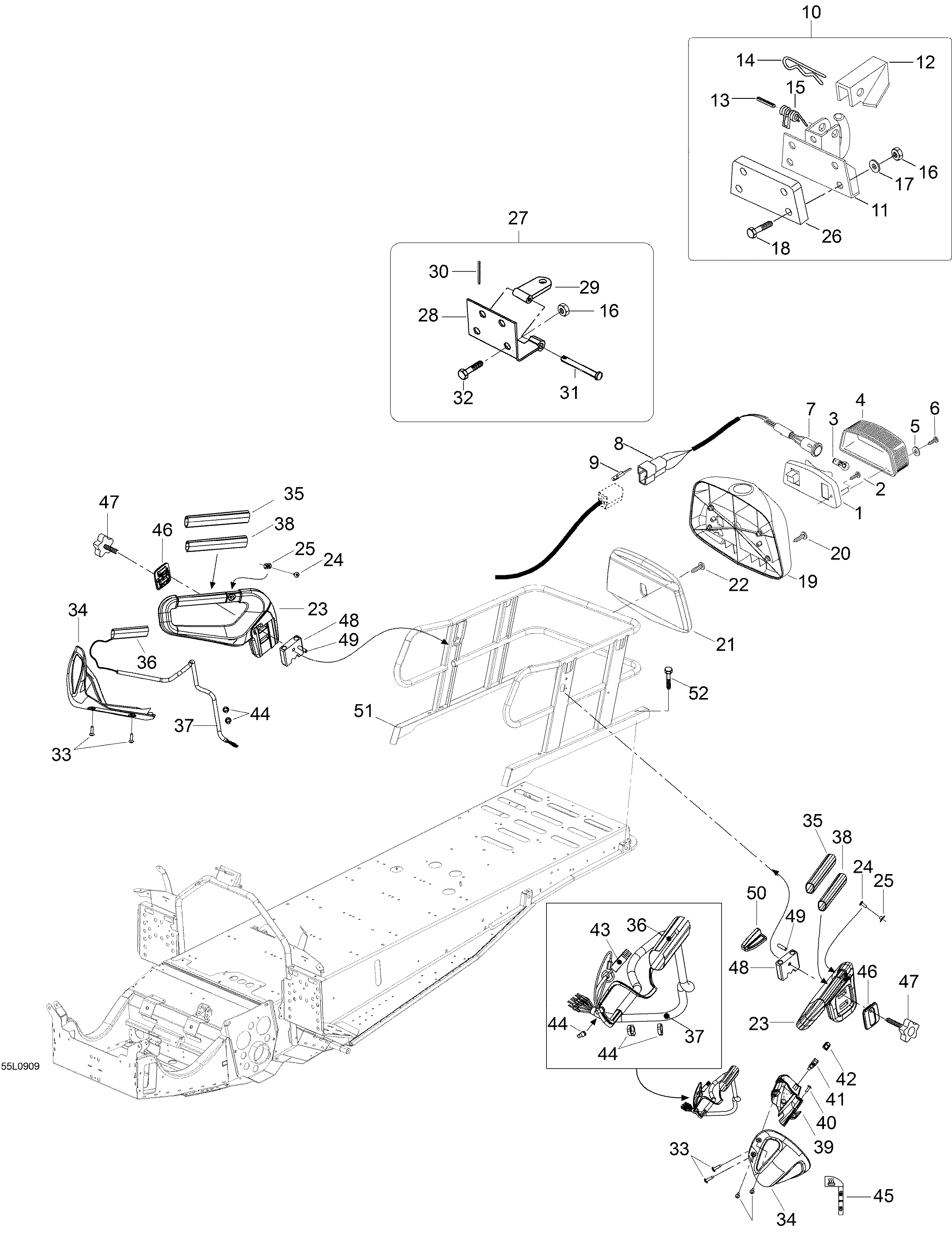

09- Luggage Rack для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1515175397 Lamp HousingLamp Housing
-
2M40207 Screw 4.8 X 45Screw 4.8 X 45
-
3520000758 BulbBulb
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6209632540 Phillips Tapping Screw M3.9 X 25Phillips Tapping Screw M3.9 X 25
-
7515175852 AdapterAdapter
-
9M42614 Female ConnectorFemale Connector
-
10M5344156 Hook Hitch KitHook Hitch Kit
-
12M5440767 Hitch ProtectorHitch Protector
-
13M41012 Retainer PinRetainer Pin
-
14M41029 PinPin
-
15M545693 SpringSpring
-
16232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
17234081410 Flat Washer 8 mmFlat Washer 8 mm
-
18207085044 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
26605351510 SpacerSpacer
-
19605251392 Mold Tail LampMold Tail Lamp
-
20M40206 Screw 4.8 X 25Screw 4.8 X 25
-
21605251963 BaseBase
-
22M40322 ScrewScrew
-
23510004367 RH HandleRH Handle
-
23510004947 LH HandleLH Handle
-
24250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
25293100003 Nut M6Nut M6
-
28M5344151 PlatePlate
-
29M548745 Hitch PlateHitch Plate
-
30560309200 Pin-RetainerPin-Retainer
-
31M41031 PinPin
-
32M40336 Screw M8 X 20Screw M8 X 20
-
33250000199 Screw 25mmScrew 25mm
-
34510004415 RH DeflectorRH Deflector
-
34510004416 LH DeflectorLH Deflector
-
35510004449 Handle GripHandle Grip
-
36515176393 HeaterHeater
-
37515175506 TubingTubing
-
38510004709 Handle ReinforforcementHandle Reinforforcement
-
39510004566 Switch HousingSwitch Housing
-
40250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
41510004413 Rocker SwitchRocker Switch
-
42510004414 Switch ProtectorSwitch Protector
-
43515176241 LH Handle HarnessLH Handle Harness
-
44414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
45516002835 Handle Heater DecalHandle Heater Decal
-
46510004405 MouldingMoulding
-
47605640015 Handle M8 X 35Handle M8 X 35
-
48510004530 Handle LinkHandle Link
-
49M41007 Pin SpringPin Spring
-
50510004419 GripGrip
-
51605156016 Luggage RackLuggage Rack
-
52M40316 ScrewScrew
