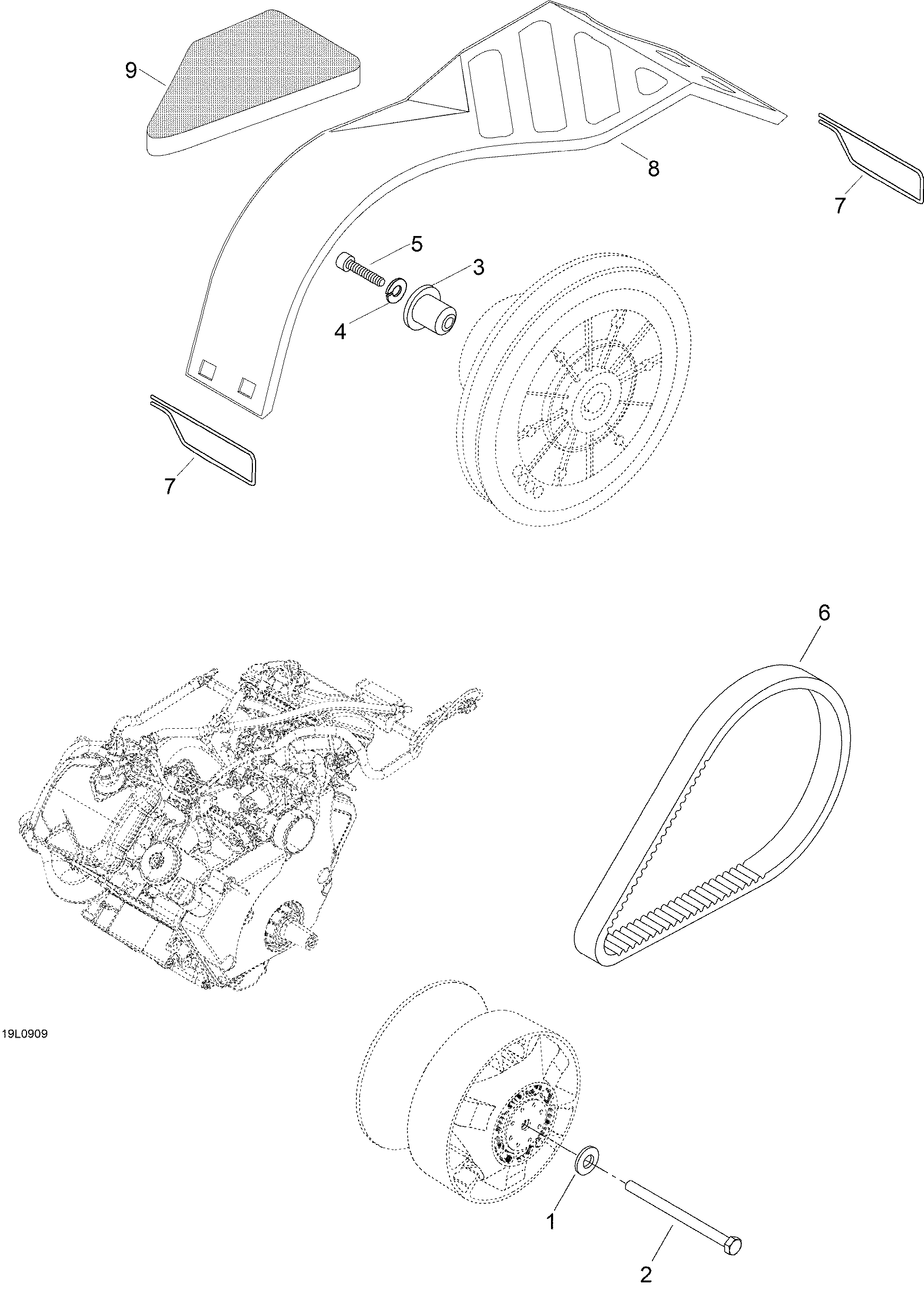

05- Pulley System для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1M20110 Conical Spring WasherConical Spring Washer
-
2417300285 Drive Pulley BoltDrive Pulley Bolt
-
3M5443201 Shaft ExtensionShaft Extension
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
6605348425 Drive BeltDrive Belt
-
7M5442726 PinPin
-
8605149860 Belt GuardBelt Guard
-
9605250741 Isolant FoamIsolant Foam
