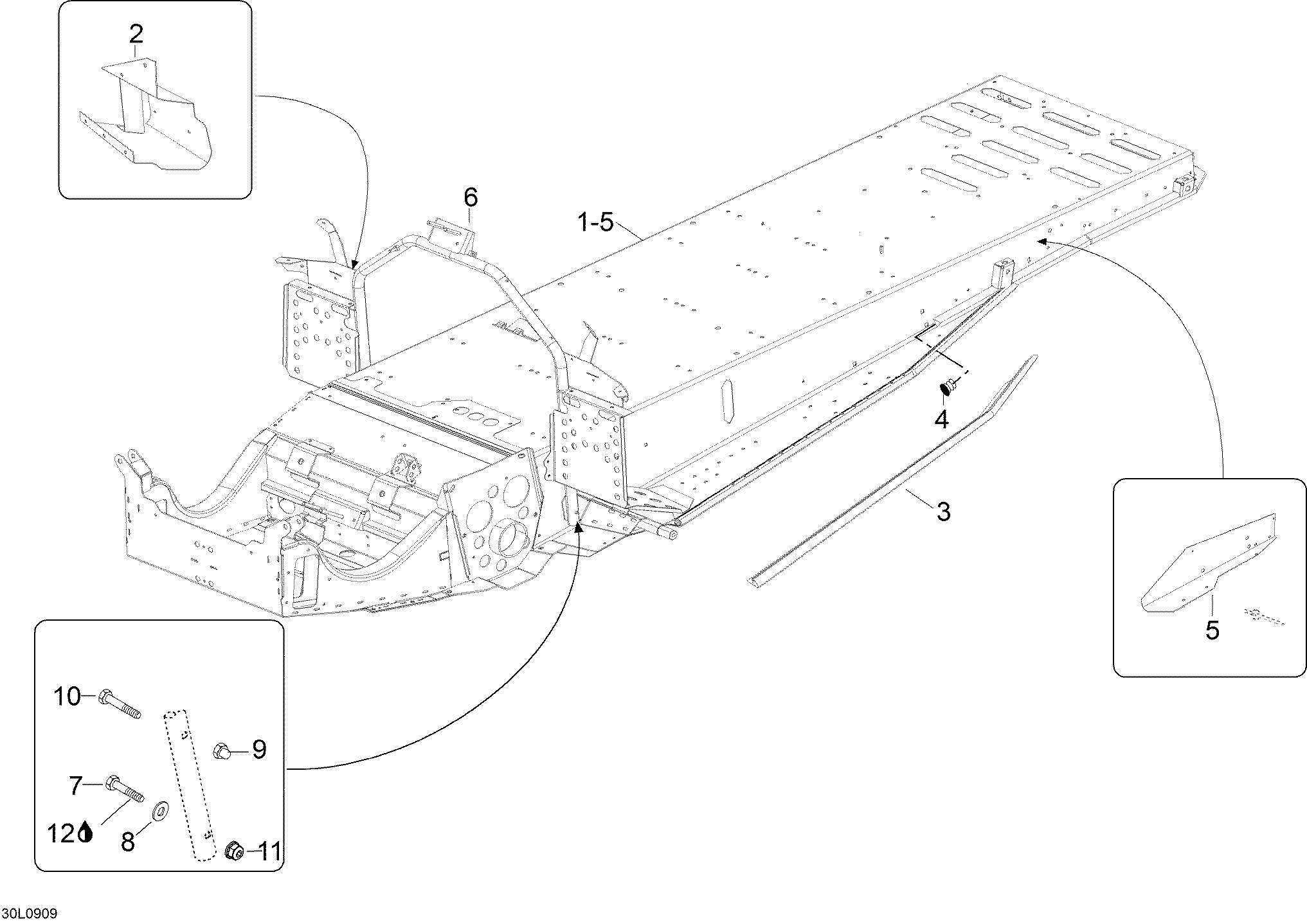

09- Frame для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1605155314 FrameFrame
-
2605350839 RH Toe RestRH Toe Rest
-
2605350840 LH Toe RestLH Toe Rest
-
3605250773 LH ReinforcementLH Reinforcement
-
3605250774 RH ReinforcementRH Reinforcement
-
4M28210 PlugPlug
-
5605350845 LH Coner SupportLH Coner Support
-
5605350846 RH Coner SupportRH Coner Support
-
6605153995 Steering SupportSteering Support
-
7M40003 Hex. ScrewHex. Screw
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9232061414 Hex. Nut M6Hex. Nut M6
-
10207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
11M33200 Nut M6Nut M6
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
