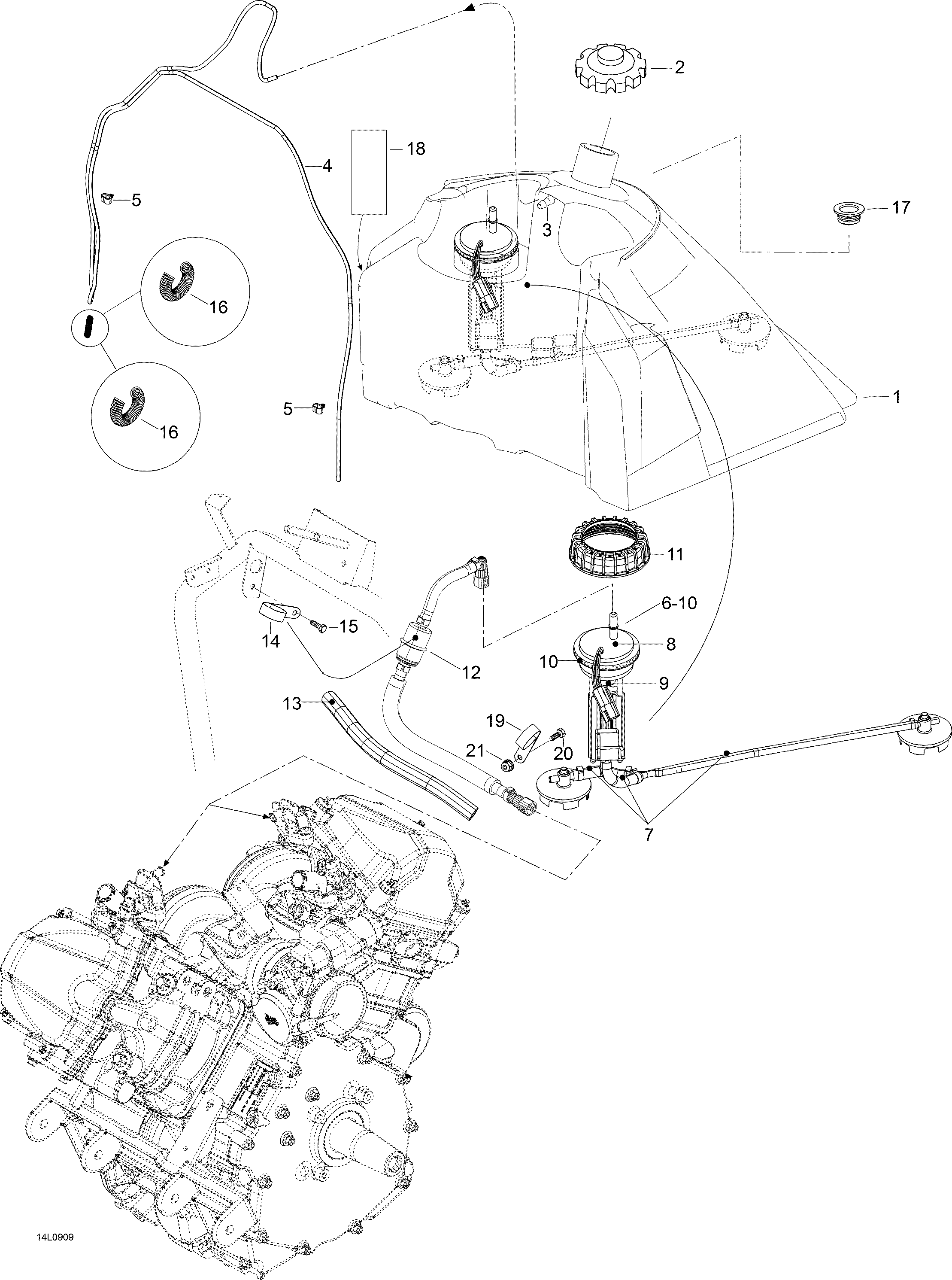

02- Fuel System для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1605151302 Fuel TankFuel Tank
-
2580259400 CapCap
-
3404127600 NippleNipple
-
4M39035 HoseHose
-
5513032923 Tube ClampTube Clamp
-
6605355331 Fuel Sensor Module Ass'yFuel Sensor Module Ass'y
-
7M19183 Fuel Hose KitFuel Hose Kit
-
8861302600 Fuel Pump KitFuel Pump Kit
-
9861302100 Regulator KitRegulator Kit
-
11513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
12605356034 Hose Ass'yHose Ass'y
-
13M27127 TubingTubing
-
14513033047 Open ClampOpen Clamp
-
15M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
16M25003 SpringSpring
-
17293720058 GrommetGrommet
-
18M44001 Reflective SheetReflective Sheet
-
19M27092 ClipClip
-
20207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
21M33200 Nut M6Nut M6
