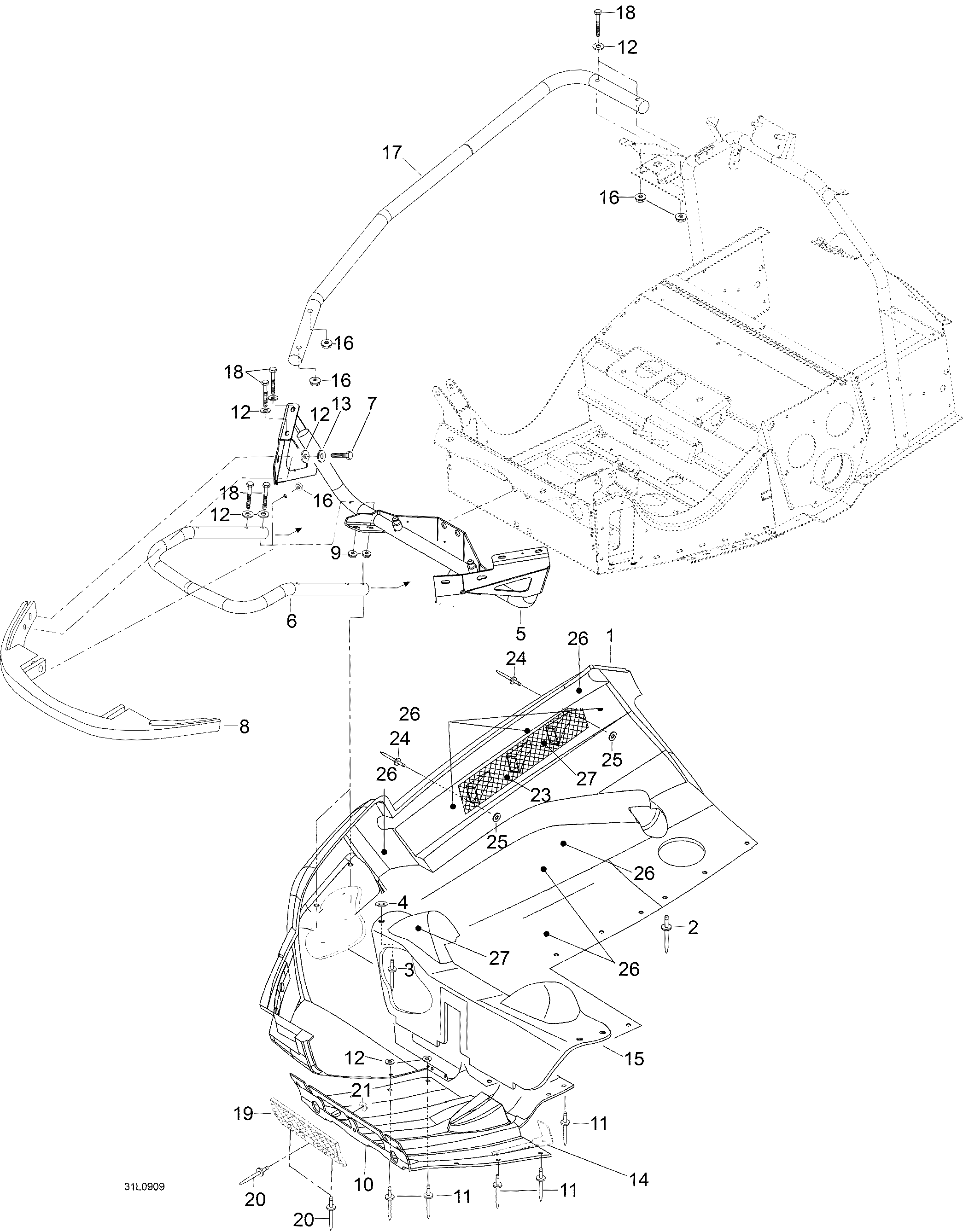

09- Bottom Pan для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1605155340 Bottom Pan Ass'y, RHBottom Pan Ass'y, RH
-
1605155679 Bottom Pan Ass'y, LHBottom Pan Ass'y, LH
-
2M36037 RivetRivet
-
3M36083 RivetRivet
-
4M20008 Washer 5 mmWasher 5 mm
-
5605255398 Welded Front Bumper SupportWelded Front Bumper Support
-
6605351509 Bumper FrontBumper Front
-
7207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
8502006719 Bumper, BlackBumper, Black
-
9M33200 Nut M6Nut M6
-
10605154930 Central Front Pottom PanCentral Front Pottom Pan
-
11M36072 RivetRivet
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13234161471 Lock Washer M6, BlackLock Washer M6, Black
-
14605355617 Bottom Pan Riveting PlateBottom Pan Riveting Plate
-
15605355606 Shock CoverShock Cover
-
16M33200 Nut M6Nut M6
-
17605255395 Side BumperSide Bumper
-
18207064044 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
19605255513 Front GrillFront Grill
-
20M36071 RivetRivet
-
21M20008 Washer 5 mmWasher 5 mm
-
22605351367 L.h Acoustic FoamL.h Acoustic Foam
-
23605351546 GrillGrill
-
24M36036 Rivet-BlackRivet-Black
-
25M20008 Washer 5 mmWasher 5 mm
-
26619690002 Isolation SheetIsolation Sheet
-
27M44001 Reflective SheetReflective Sheet
