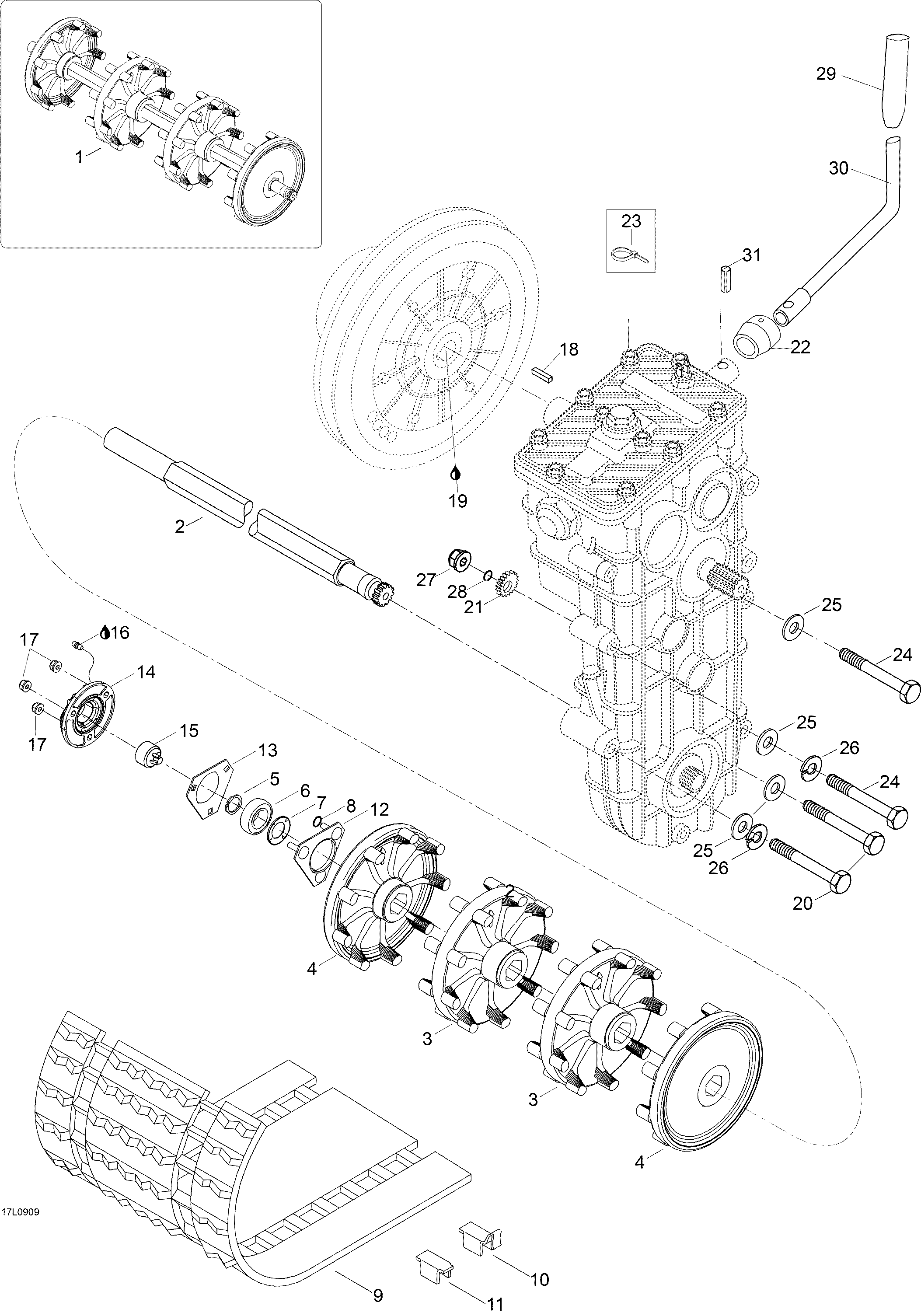

05- Drive System для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
2605253104 Drive AxleDrive Axle
-
3414931800 SprocketSprocket
-
4415067400 Half SprocketHalf Sprocket
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8414484400 O-RingO-Ring
-
9M13070 Track Ass'yTrack Ass'y
-
10M5318323 Guide CleatGuide Cleat
-
11M5318322 CleatCleat
-
12504151860 Bearing HousingBearing Housing
-
13501025000 FlangeFlange
-
14504152173 Flange, SpeedoFlange, Speedo
-
15504152040 Magnetic AdaptorMagnetic Adaptor
-
16293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
17M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
18M418763 KeyKey
-
19293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
20M40089 ScrewScrew
-
21605454017 ToolsTools
-
22M5446699 SleeveSleeve
-
23414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24M40012 Screw M8 X 80Screw M8 X 80
-
25M20010 WasherWasher
-
26234181401 Lock Washer 8 mmLock Washer 8 mm
-
27M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
28506151140 O-RingO-Ring
-
29M28247 Arm Shifter BallArm Shifter Ball
-
30605350153 Shift HandleShift Handle
-
31M41007 Pin SpringPin Spring
