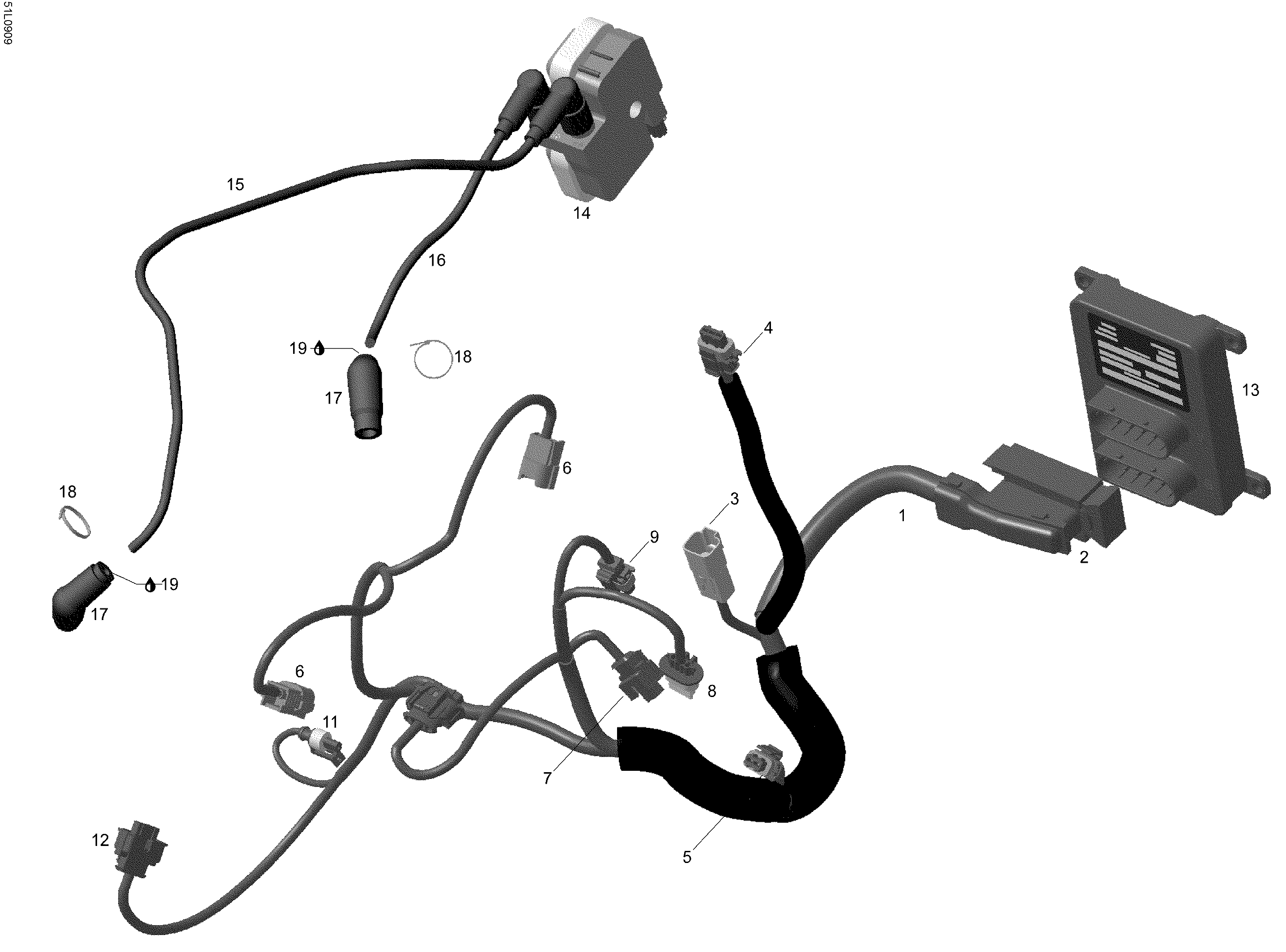

10- Engine Harness And Electronic Module для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1420665243 Wiring HarnessWiring Harness
-
2420664450 ECM ConnectorECM Connector
-
13420665912 Electronic BoxElectronic Box
-
14278001546 Ignition CoilIgnition Coil
-
15420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
16420664305 Cable Ass'Y 245 mm PTOCable Ass'Y 245 mm PTO
-
17420265240 Spark Plug ConnectorSpark Plug Connector
-
18420866710 ClampClamp
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
