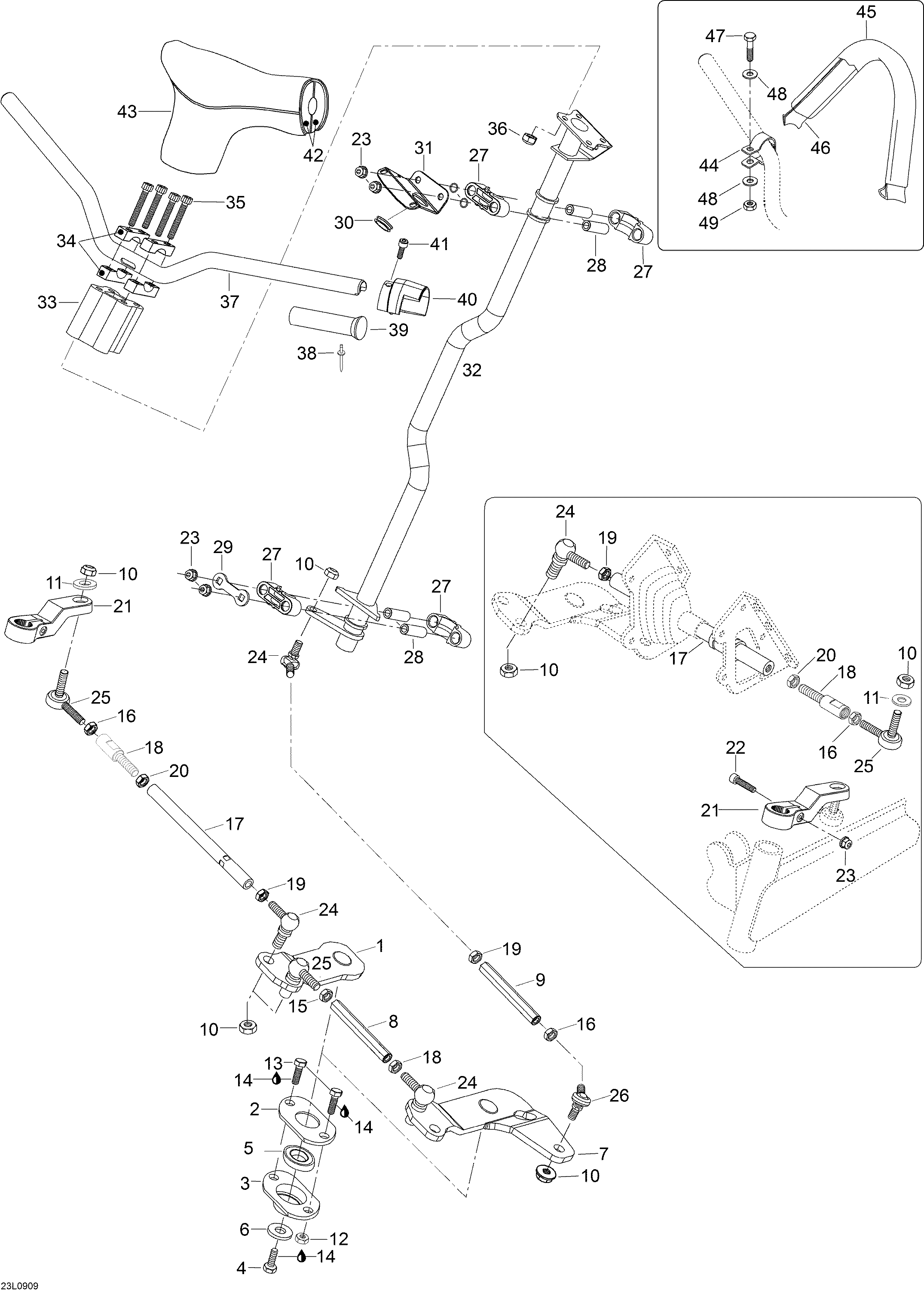

07- Steering для BRP Ski-Doo Expedition TUV V800 4-TEC - 2009
-
№АртикулНазвание
-
1605352300 RH LeverRH Lever
-
2M5345380 CoverCover
-
3605350644 Bearing SupportBearing Support
-
4M40337 Hex. ScrewHex. Screw
-
5503190795 Ball BearingBall Bearing
-
6M5446279 WasherWasher
-
7605353380 LH LeverLH Lever
-
8605448308 Short Tie RodShort Tie Rod
-
9605351468 Upper Tie RodUpper Tie Rod
-
10233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
11234001410 Flat Washer 10 mmFlat Washer 10 mm
-
12232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
13M40351 ScrewScrew
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15M33019 RH NutRH Nut
-
16732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
17605450794 Tie RodTie Rod
-
18605450793 AdjusterAdjuster
-
19M33017 LH NutLH Nut
-
20250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
21M5348261 Steering ArmSteering Arm
-
22M40828 Allen Screw M8 X 45Allen Screw M8 X 45
-
23M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
24506151495 LH Ball JointLH Ball Joint
-
25506151492 RH Ball JointRH Ball Joint
-
26605450895 Ball Joint RHBall Joint RH
-
27506150400 Housing HalfHousing Half
-
28506150500 Housing BushingHousing Bushing
-
29506150600 Stopper PlateStopper Plate
-
30M28022 GrommetGrommet
-
31605351973 BracketBracket
-
32605153411 Main TubeMain Tube
-
33605351275 Extension 90 mmExtension 90 mm
-
34M548448 Steering ClampSteering Clamp
-
35M40209 Allen Screw M8 X 130Allen Screw M8 X 130
-
36M33027 NutNut
-
37605251368 Handle BarHandle Bar
-
38M36005 RivetRivet
-
39M5340464 Grip HandleGrip Handle
-
40506151566 AdaptatorAdaptator
-
41M40390 Allen Screw M8 X 20Allen Screw M8 X 20
-
42605252110 Foam, FrontFoam, Front
-
42605252111 Foam, RearFoam, Rear
-
43605254571 Steering CoverSteering Cover
-
44506151792 Support Plate, BlackSupport Plate, Black
-
45506152115 Strap Ass'yStrap Ass'y
-
47207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
48234061410 Flat Washer 6 mmFlat Washer 6 mm
-
49232561414 Elastic Stop Nut M6Elastic Stop Nut M6
