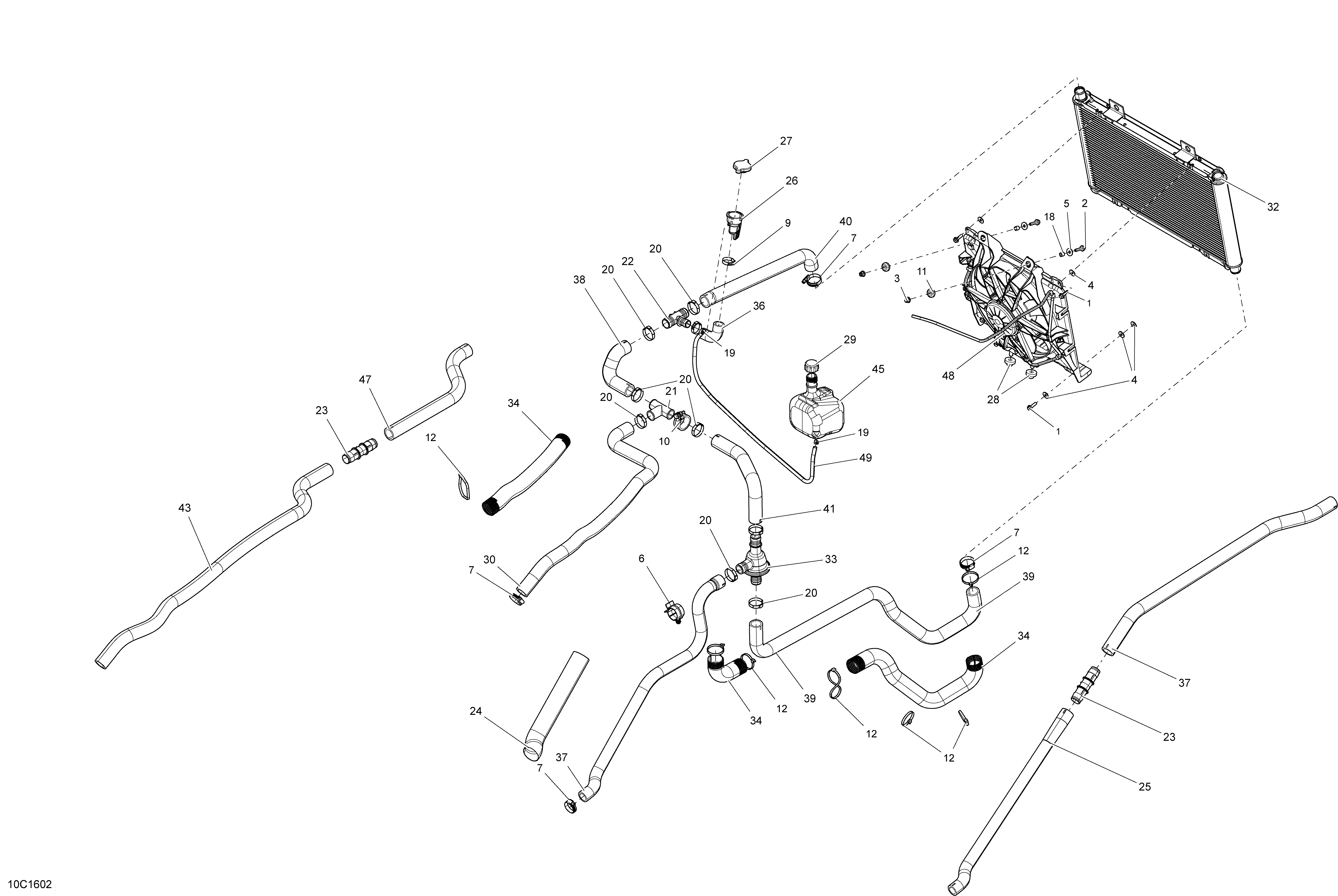

01- Cooling System для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4234062410 Flat Washer 6 mmFlat Washer 6 mm
-
5250200082 Flat WasherFlat Washer
-
6275500590 RetainerRetainer
-
7293650098 Norma Gear ClampNorma Gear Clamp
-
9293650099 Crimp ClampCrimp Clamp
-
10293650218 Hose RetainerHose Retainer
-
11293720053 GrommetGrommet
-
12293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
18293900105 BushingBushing
-
19414554800 Spring ClampSpring Clamp
-
20509000162 Gear Clamp. Except MAX ModelGear Clamp. Except MAX Model
-
20509000162 Gear Clamp. MAX ModelGear Clamp. MAX Model
-
21509000219 T-FittingT-Fitting
-
22509000372 T-FittingT-Fitting
-
23509000914 Fitting. MAX ModelFitting. MAX Model
-
24707001789 Protector Tube 50.8mm - 300mm. 1000 EngineProtector Tube 50.8mm - 300mm. 1000 Engine
-
25709200496 Pump Hose. MAX ModelPump Hose. MAX Model
-
26709200179 Filler NeckFiller Neck
-
27709200207 Pressure CapPressure Cap
-
28709200285 GrommetGrommet
-
29709200328 Tank CapTank Cap
-
30709200382 Intermediate HoseIntermediate Hose
-
32709200395 RadiatorRadiator
-
33709200406 ThermostatThermostat
-
34515176260 Tubing 35 mmTubing 35 mm
-
36709200439 Filler Neck HoseFiller Neck Hose
-
37709200441 Pump Hose. Except MAX ModelPump Hose. Except MAX Model
-
37709200519 Pump Hose. MAX ModelPump Hose. MAX Model
-
38709200443 HoseHose
-
39709200444 Radiator Inlet HoseRadiator Inlet Hose
-
40709200445 Outlet HoseOutlet Hose
-
41709200447 HoseHose
-
43709200497 Hose. MAX ModelHose. MAX Model
-
45709200504 Coolant TankCoolant Tank
-
47709200520 Intermediate Hose. MAX ModelIntermediate Hose. MAX Model
-
48709200564 Fan Ass'yFan Ass'y
-
49415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
