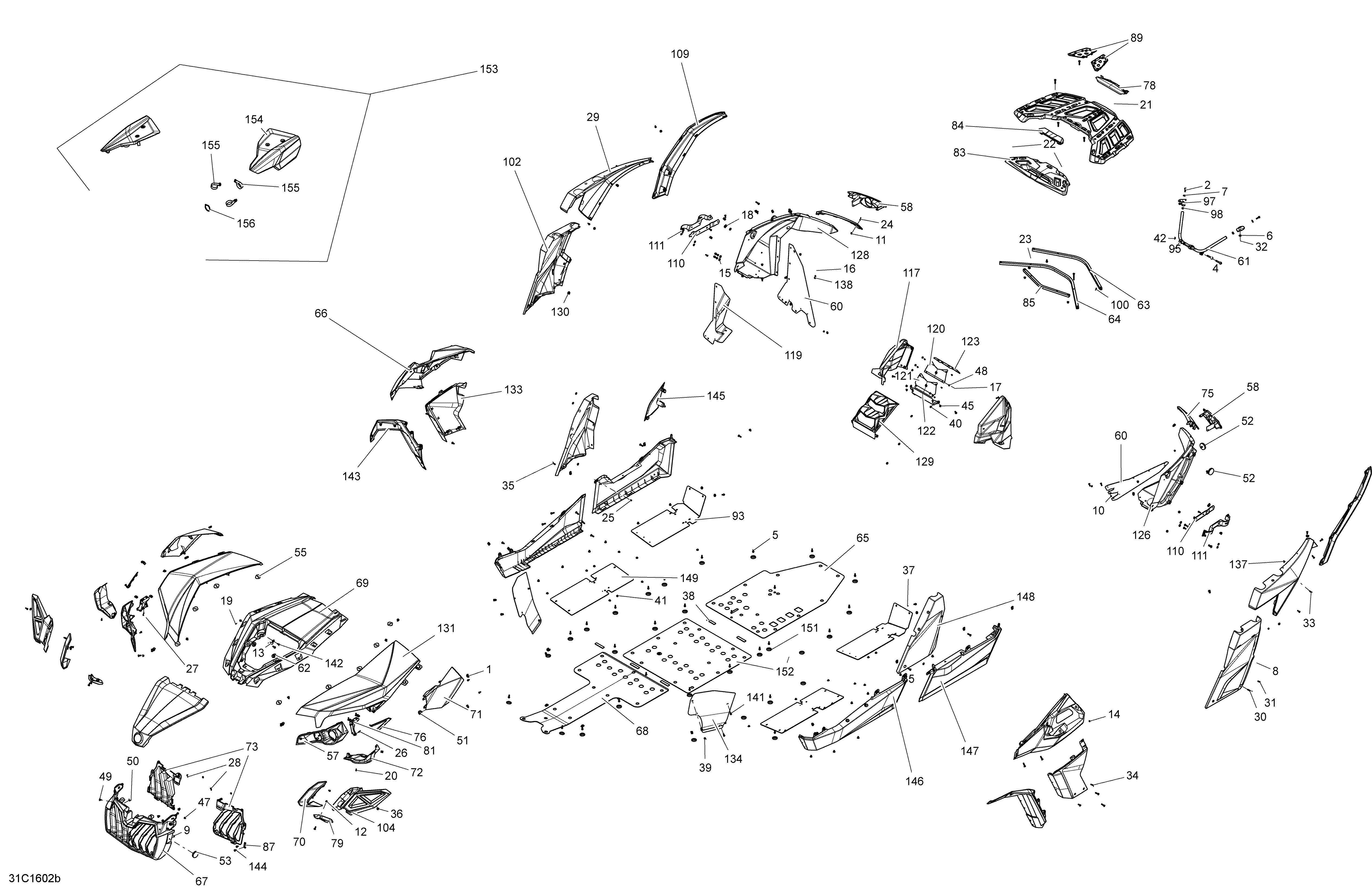

09- Body and Accessories - MAX для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1705003264 GrommetGrommet
-
2207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
6224060201 Flat WasherFlat Washer
-
7224061201 Flat WasherFlat Washer
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
10233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
11233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13705006623 ClampClamp
-
14234051410 Flat Washer M5Flat Washer M5
-
15234062670 Flat Washer, StainlessFlat Washer, Stainless
-
16234281474 Conical Spring Washer M8Conical Spring Washer M8
-
17241140060 Screw K40 X 10Screw K40 X 10
-
18250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
21250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
22250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
23250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
24250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
26241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
27250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
28250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
29705009035 Black LH Rear FenderBlack LH Rear Fender
-
29705009036 Black RH Rear FenderBlack RH Rear Fender
-
29705008540 Black Carbon Fiber LH Rear FenderBlack Carbon Fiber LH Rear Fender
-
29705008541 Black Carbon Fiber RH Rear FenderBlack Carbon Fiber RH Rear Fender
-
29705008949 Quarry Gray LH Rear FenderQuarry Gray LH Rear Fender
-
29705008951 Quarry Gray RH Rear FenderQuarry Gray RH Rear Fender
-
29705009041 Red LH Rear FenderRed LH Rear Fender
-
29705009042 Red RH Rear FenderRed RH Rear Fender
-
29705009729 Hyper Silver LH Rear FenderHyper Silver LH Rear Fender
-
29705009730 Hyper Silver RH Rear FenderHyper Silver RH Rear Fender
-
30250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
31250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
32250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
33250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
34250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
35250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
36250200025 Washer M5Washer M5
-
37250200097 Flat WasherFlat Washer
-
38291001932 PadPad
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
41293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
42233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
45293450274 InsertInsert
-
47293830005 Rubber BumperRubber Bumper
-
48391301000 WasherWasher
-
49414644300 DartDart
-
50517302785 ClipClip
-
51517303756 GrommetGrommet
-
52705002408 Red ReflectorRed Reflector
-
53705002409 Amber ReflectorAmber Reflector
-
55705003841 Support PlateSupport Plate
-
57705004508 LH Front FaciaLH Front Facia
-
57705004509 RH Front FaciaRH Front Facia
-
58705004731 LH Rear FaciaLH Rear Facia
-
58705004732 RH Rear FaciaRH Rear Facia
-
60705007828 DeflectorDeflector
-
61705007299 Body TubeBody Tube
-
62705005156 Oval WasherOval Washer
-
63705005469 TubeTube
-
64705005470 TubeTube
-
65705005480 Rear Skid PlateRear Skid Plate
-
65705008958 Skid PlateSkid Plate
-
66705006558 Black LH Front FenderBlack LH Front Fender
-
66705006559 Black RH Front FenderBlack RH Front Fender
-
66705008534 Black Carbon Fiber LH Front FenderBlack Carbon Fiber LH Front Fender
-
66705008535 Black Carbon Fiber RH Front FenderBlack Carbon Fiber RH Front Fender
-
66705007336 Red LH Front FenderRed LH Front Fender
-
66705007337 Red RH Front FenderRed RH Front Fender
-
66705008941 Quarry Gray LH Front FenderQuarry Gray LH Front Fender
-
66705008942 Quarry Gray RH Front FenderQuarry Gray RH Front Fender
-
66705009668 Hyper Silver LH Front FenderHyper Silver LH Front Fender
-
66705009669 Hyper Silver RH Front FenderHyper Silver RH Front Fender
-
67705005784 Front Radiator GrillFront Radiator Grill
-
68705005798 Front Skid PlateFront Skid Plate
-
69705005821 Fixe Center HoodFixe Center Hood
-
70705007356 Red LH Bumper Cap. DPS ModelRed LH Bumper Cap. DPS Model
-
70705007352 Red LH Bumper Cap. XDSSTD ModelRed LH Bumper Cap. XDSSTD Model
-
70705007353 Red RH Bumper Cap. XDSSTD ModelRed RH Bumper Cap. XDSSTD Model
-
70705007357 Red RH Bumper Cap. DPS ModelRed RH Bumper Cap. DPS Model
-
71705007340 Red LH Cover Front FenderRed LH Cover Front Fender
-
71705007342 Red RH Cover Front FenderRed RH Cover Front Fender
-
71705007983 White LH Cover Front FenderWhite LH Cover Front Fender
-
71705007983 White LH Cover Front FenderWhite LH Cover Front Fender
-
71705007984 White RH Cover Front FenderWhite RH Cover Front Fender
-
71705007984 White RH Cover Front FenderWhite RH Cover Front Fender
-
71705008536 Black carbon Fiber LH Cover Front FenderBlack carbon Fiber LH Cover Front Fender
-
71705008537 Black Carbon Fiber RH Cover Front FenderBlack Carbon Fiber RH Cover Front Fender
-
71705009676 Quarry Grey LH Cover FenderQuarry Grey LH Cover Fender
-
71705009677 Quarry Grey RH Cover FenderQuarry Grey RH Cover Fender
-
71705009678 Hyper Silver LH Cover FenderHyper Silver LH Cover Fender
-
71705009679 Hyper Silver RH Cover FenderHyper Silver RH Cover Fender
-
72705007338 Red LH Front Fender Trim. Package DPSRed LH Front Fender Trim. Package DPS
-
72705007341 Red RH Front Fender Trim. Package DPSRed RH Front Fender Trim. Package DPS
-
72705009674 Red LH Fender Trim. Package XRSRed LH Fender Trim. Package XRS
-
72705009675 Red RH Fender Trim. Package XRSRed RH Fender Trim. Package XRS
-
72705008611 Manta Green LH Front Fender TrimManta Green LH Front Fender Trim
-
72705008611 Manta Green LH Front Fender TrimManta Green LH Front Fender Trim
-
72705008611 Manta Green LH Front Fender TrimManta Green LH Front Fender Trim
-
72705008612 Manta Green RH Front Fender TrimManta Green RH Front Fender Trim
-
72705008612 Manta Green RH Front Fender TrimManta Green RH Front Fender Trim
-
72705008612 Manta Green RH Front Fender TrimManta Green RH Front Fender Trim
-
72705009670 Quarry Grey LH Fender TrimQuarry Grey LH Fender Trim
-
72705009671 Quarry Grey RH Fender TrimQuarry Grey RH Fender Trim
-
72705009672 Gulfstream Blue LH Fender TrimGulfstream Blue LH Fender Trim
-
72705009673 Gulfstream Blue RH Fender TrimGulfstream Blue RH Fender Trim
-
73705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
73705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
75705006583 Black LH Rear Facia TrimBlack LH Rear Facia Trim
-
75705006584 Black RH Rear Facia TrimBlack RH Rear Facia Trim
-
75705008542 Black Carbon Fiber LH TrimBlack Carbon Fiber LH Trim
-
75705008543 Black Carbon Fiber RH TrimBlack Carbon Fiber RH Trim
-
75705007372 Red LH Rear Facia TrimRed LH Rear Facia Trim
-
75705007373 Red RH Rear Facia TrimRed RH Rear Facia Trim
-
75705008952 Quarry Gray LH TrimQuarry Gray LH Trim
-
75705008953 Quarry Gray RH TrimQuarry Gray RH Trim
-
75705009733 Hyper Silver LH TrimHyper Silver LH Trim
-
75705009734 Hyper Silver RH TrimHyper Silver RH Trim
-
76705005992 LH Front Facia TrimLH Front Facia Trim
-
76705005993 RH Front Facia TrimRH Front Facia Trim
-
78705005994 LOGO SupportLOGO Support
-
79705006038 LH Bumper Skid CapLH Bumper Skid Cap
-
79705006039 RH Bumper Skid CapRH Bumper Skid Cap
-
81705006078 LH Front Facia SupportLH Front Facia Support
-
81705006079 RH Front Facia SupportRH Front Facia Support
-
83705006128 Bagage Central RackBagage Central Rack
-
84705006132 Central Bagage Rack CapCentral Bagage Rack Cap
-
85705006279 Bagage Rack TubeBagage Rack Tube
-
87705006635 Radiator Grill BracketRadiator Grill Bracket
-
89705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
89705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
93705007038 RH Lateral Skid PlateRH Lateral Skid Plate
-
93705009444 LH Lateral Skid PlateLH Lateral Skid Plate
-
95705007044 Rear Support Facia ClipRear Support Facia Clip
-
97705007045 LH Rear Facia SupportLH Rear Facia Support
-
97705007046 RH Rear Facia SupportRH Rear Facia Support
-
98705007047 Tube ConnectorTube Connector
-
99705007060 Black Removable HoodBlack Removable Hood
-
99705007129 Black Carbon Fiber Removable HoodBlack Carbon Fiber Removable Hood
-
99705009710 Timeless Black Removable HoodTimeless Black Removable Hood
-
99705008186 Bright White Removable HoodBright White Removable Hood
-
99705008186 Bright White Removable HoodBright White Removable Hood
-
100207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
102705007362 White LH Rear Lateral PanelWhite LH Rear Lateral Panel
-
102705007362 White LH Rear Lateral PanelWhite LH Rear Lateral Panel
-
102705008458 White RH Rear Lateral PanelWhite RH Rear Lateral Panel
-
102705008458 White RH Rear Lateral PanelWhite RH Rear Lateral Panel
-
102705007364 Red LH Rear Lateral PanelRed LH Rear Lateral Panel
-
102705007624 Red RH Rear Lateral PanelRed RH Rear Lateral Panel
-
102705008492 Tmeless Black LH Rear Lateral Panel. Carbon Fiber ModelTmeless Black LH Rear Lateral Panel. Carbon Fiber Model
-
102705008509 Timeless Black RH Rear Lateral Panel. Carbon Fiber ModelTimeless Black RH Rear Lateral Panel. Carbon Fiber Model
-
102705009851 Black LH Rear Lateral Panel. Grey ModelBlack LH Rear Lateral Panel. Grey Model
-
102705009853 Black RH Lateral Panel. Grey ModelBlack RH Lateral Panel. Grey Model
-
102705009721 Hyper Silver LH Rear Lateral PanelHyper Silver LH Rear Lateral Panel
-
102705009854 Hyper Silver RH Rear Lateral PanelHyper Silver RH Rear Lateral Panel
-
104705007497 LH Bumper GrillLH Bumper Grill
-
104705007498 RH Bumper GrillRH Bumper Grill
-
109705007637 LH Rear DeflectorLH Rear Deflector
-
109705007638 RH Rear DeflectorRH Rear Deflector
-
110705007917 Support PlateSupport Plate
-
111705007918 LH Rear Fender SupportLH Rear Fender Support
-
111705007919 RH Rear Fender SupportRH Rear Fender Support
-
117705009046 LH Intercooler CoverLH Intercooler Cover
-
117705009047 RH Intercooler CoverRH Intercooler Cover
-
119705009143 DeflectorDeflector
-
120705009260 Upper GrillUpper Grill
-
121705009261 Lower GrillLower Grill
-
122705009262 Air Duct SupportAir Duct Support
-
123705009343 Rear SupportRear Support
-
126705009445 LH Inner Fender. Engine 1000TLH Inner Fender. Engine 1000T
-
126705009548 LH Inner Fender. Engine 1000RLH Inner Fender. Engine 1000R
-
128705009549 RH Inner FenderRH Inner Fender
-
129705204561 Air Scoop KitAir Scoop Kit
-
130250200086 Flat WasherFlat Washer
-
131705007350 Red LH Fixe HoodRed LH Fixe Hood
-
131705007351 Red RH Fixe HoodRed RH Fixe Hood
-
131705008538 Timeless Black LH Fixe Hood. Carbon Fiber ModelTimeless Black LH Fixe Hood. Carbon Fiber Model
-
131705008539 Timeless Black RH Fixe Hood. Carbon Fiber ModelTimeless Black RH Fixe Hood. Carbon Fiber Model
-
131705008945 Deep Black LH Fixe Hood. Black/White ModelDeep Black LH Fixe Hood. Black/White Model
-
131705008946 Deep Black RH Fixe Hood. Black/White ModelDeep Black RH Fixe Hood. Black/White Model
-
131705008947 Quarry Gray LH Fixe HoodQuarry Gray LH Fixe Hood
-
131705008948 Quarry Gray RH Fixe HoodQuarry Gray RH Fixe Hood
-
131705009708 Hyper Silver LH Fixed HoodHyper Silver LH Fixed Hood
-
131705009709 Hyper Silver RH Fixed HoodHyper Silver RH Fixed Hood
-
133705007358 White LH Front Lateral PannelWhite LH Front Lateral Pannel
-
133705007358 White LH Front Lateral PannelWhite LH Front Lateral Pannel
-
133705007359 White RH Front Lateral PannelWhite RH Front Lateral Pannel
-
133705007359 White RH Front Lateral PannelWhite RH Front Lateral Pannel
-
133705007360 Red LH Front Lateral PannelRed LH Front Lateral Pannel
-
133705007361 Red RH Front Lateral PannelRed RH Front Lateral Pannel
-
133705007853 Deep Black LH Front Lateral Panel. Gray ModelDeep Black LH Front Lateral Panel. Gray Model
-
133705007854 Deep Black RH Front Lateral Panel. Gray ModelDeep Black RH Front Lateral Panel. Gray Model
-
133705008488 Timeless Black LH Front Lateral Panel. Carbon Fiber ModelTimeless Black LH Front Lateral Panel. Carbon Fiber Model
-
133705008489 Timeless Black RH Front Lateral Panel. Carbon Fiber ModelTimeless Black RH Front Lateral Panel. Carbon Fiber Model
-
133705009717 Hyper Silver LH Front Lateral PanelHyper Silver LH Front Lateral Panel
-
133705009718 Hyper Silver RH Front Lateral PanelHyper Silver RH Front Lateral Panel
-
133705010394 Gulfstream Blue LH Front Lateral PanelGulfstream Blue LH Front Lateral Panel
-
134705007827 Inner FenderInner Fender
-
136715002367 Rear Rack KITRear Rack KIT
-
137250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
138236282054 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
141210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
142207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
143705008988 LH Front DeflectorLH Front Deflector
-
143705008989 RH Front DeflectorRH Front Deflector
-
144250000721 Torx ScrewTorx Screw
-
145705007419 White RH Panel CoverWhite RH Panel Cover
-
145705007419 White RH Panel CoverWhite RH Panel Cover
-
145705007420 Red RH Panel CoverRed RH Panel Cover
-
145705008510 Timeless Black RH Panel Cover. Carbon Fiber ModelTimeless Black RH Panel Cover. Carbon Fiber Model
-
145705009856 Deep Black Panel Cover. Gray ModelDeep Black Panel Cover. Gray Model
-
145705009857 Hyper Silver Panel CoverHyper Silver Panel Cover
-
146705005423 Black LH Lower PanelBlack LH Lower Panel
-
146705005424 Black RH Lower PanelBlack RH Lower Panel
-
147705005425 Black LH Rear Lower PanelBlack LH Rear Lower Panel
-
147705005426 Black RH Rear Lower PanelBlack RH Rear Lower Panel
-
148705007421 White LH Center Cage PanelWhite LH Center Cage Panel
-
148705007421 White LH Center Cage PanelWhite LH Center Cage Panel
-
148705007422 White RH Center Cage PanelWhite RH Center Cage Panel
-
148705007422 White RH Center Cage PanelWhite RH Center Cage Panel
-
148705007423 Red RH Center Cage PanelRed RH Center Cage Panel
-
148705007424 Red LH Center Cage PanelRed LH Center Cage Panel
-
148705008511 Timeless Black LH Ctr Cage Panel Cover. Carbon Fiber ModelTimeless Black LH Ctr Cage Panel Cover. Carbon Fiber Model
-
148705008512 Timeless Black Met RH Center Cage Panel. Carbon Fiber ModelTimeless Black Met RH Center Cage Panel. Carbon Fiber Model
-
148705009859 Deep Black LH Ctr Cage Panel Cover. Gray ModelDeep Black LH Ctr Cage Panel Cover. Gray Model
-
148705009860 Deep Black RH Ctr Cage Panel Cover. Gray ModelDeep Black RH Ctr Cage Panel Cover. Gray Model
-
148705009861 Hyper Silver LH Ctr Cage Panel CoverHyper Silver LH Ctr Cage Panel Cover
-
148705009862 Hyper Silver RH Ctr Cage Panel CoverHyper Silver RH Ctr Cage Panel Cover
-
149705008421 Side Protector PlateSide Protector Plate
-
151705007171 CupCup
-
152705009447 Skid PlateSkid Plate
-
153705007956 White Cage Cover KitWhite Cage Cover Kit
-
153705007956 White Cage Cover KitWhite Cage Cover Kit
-
153705008450 Black Cage Cover KitBlack Cage Cover Kit
-
153705008450 Black Cage Cover KitBlack Cage Cover Kit
-
153705008450 Black Cage Cover KitBlack Cage Cover Kit
-
153705008976 Red Cage Cover KitRed Cage Cover Kit
-
154705007425 White LH Top Center Gage CoverWhite LH Top Center Gage Cover
-
154705007425 White LH Top Center Gage CoverWhite LH Top Center Gage Cover
-
154705007426 White RH Top Center Gage CoverWhite RH Top Center Gage Cover
-
154705007426 White RH Top Center Gage CoverWhite RH Top Center Gage Cover
-
154705008452 Black LH Top Center Cage CoverBlack LH Top Center Cage Cover
-
154705008452 Black LH Top Center Cage CoverBlack LH Top Center Cage Cover
-
154705008452 Black LH Top Center Cage CoverBlack LH Top Center Cage Cover
-
154705008453 Black RH Top Center Cage CoverBlack RH Top Center Cage Cover
-
154705008453 Black RH Top Center Cage CoverBlack RH Top Center Cage Cover
-
154705008453 Black RH Top Center Cage CoverBlack RH Top Center Cage Cover
-
154705008977 Red LH Top Center Cage CoverRed LH Top Center Cage Cover
-
154705008978 Red RH Top Center Cage CoverRed RH Top Center Cage Cover
-
155705005626 ''P'' Bracket, 2'' Dia.''P'' Bracket, 2'' Dia.
-
156293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
157250100031 Push NutPush Nut
-
158207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
159210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
160232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
161233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
162233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
163233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
164233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
165234062670 Flat Washer, StainlessFlat Washer, Stainless
-
166241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
167250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
168250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
169250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
170250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
171250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
172250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
173250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
174250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
175250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
176250100031 Push NutPush Nut
-
177250200025 Washer M5Washer M5
-
178293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
179293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
180293450274 InsertInsert
-
181293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
182517302785 ClipClip
-
183705005626 ''P'' Bracket, 2'' Dia.''P'' Bracket, 2'' Dia.
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase - 1000R EFI
- 01- Crankcase - Turbo
- 01- Crankshaft, Piston and Cylinder - 1000R EFI
- 01- Crankshaft, Piston and Cylinder - Turbo
- 01- Cylinder Head, Front - 1000R EFI
- 01- Cylinder Head, Front - Turbo
- 01- Cylinder Head, Rear - 1000R EFI
- 01- Cylinder Head, Rear - Turbo
- 01- Engine
- 01- Engine - XMR
- 01- Engine and Engine Support - MAX
- 01- Engine Cooling - 1000R EFI
- 01- Engine Cooling - Turbo
- 01- Engine Lubrication - 1000R EFI
- 01- Engine Lubrication - Turbo
- 01- Exhaust System
- 01- Exhaust System - Turbo
- 01- Gear Box and Components - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box and Components - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Assy - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Assy - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Output Shaft - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Output Shaft - GBPS - Maverick-Maverick MAX, XMR
- 01- Turbocharger
- 02- Air Intake
- 02- Air Intake - Turbo
- 02- Air Intake Manifold and Throttle Body - 1000R EFI
- 02- Air Intake Manifold and Throttle Body - Turbo
- 02- Fuel System
- 03- Magneto and Electric Starter - 1000R EFI
- 03- Magneto and Electric Starter - Turbo
- 05- Transmission - 1000R EFI
- 05- Transmission - Turbo
- 05- Transmission, Driven Pulley - Turbo
- 06- Brakes
- 07- Drive System, Front
- 07- Front Suspension
- 07- Steering
- 08- Drive Shaft - 1000R EFI
- 08- Drive Shaft - Turbo
- 08- Rear Drive System
- 08- Rear Suspension
- 09- Body and Accessories
- • 09- Body and Accessories - MAX
- 09- Cab Interior
- 09- Cab Interior - MAX
- 09- Decals
- 09- Decals - MAX XDS-XRS
- 09- Decals - MAX-DPS
- 09- Decals - XDS-XRS
- 09- Frame - MAX, Except XDS Package
- 09- Frame - XDS Package
- 09- Frame Max- XDS Package
- 09- Frame, Except XDS Package
- 09- Mirrors and Tools
- 09- Seat
- 09- Seat - MAX
- 10- Electrical Harness Assy - Except MAX
- 10- Electrical Harness Assy - MAX
- 10- Electrical System - Europe Except XDS-XRS
- 10- Electrical System - Except XDS-XRS
- 10- Electrical System - XDS-XRS
- 10- Engine Harness and Electronic Module - Maverick Turbo-Maverick MAX Turbo
- 10- Engine Harness and Electronic Module Maverick - 1000R
- 10- Engine Harness and Electronic Module Maverick MAX - 1000R
