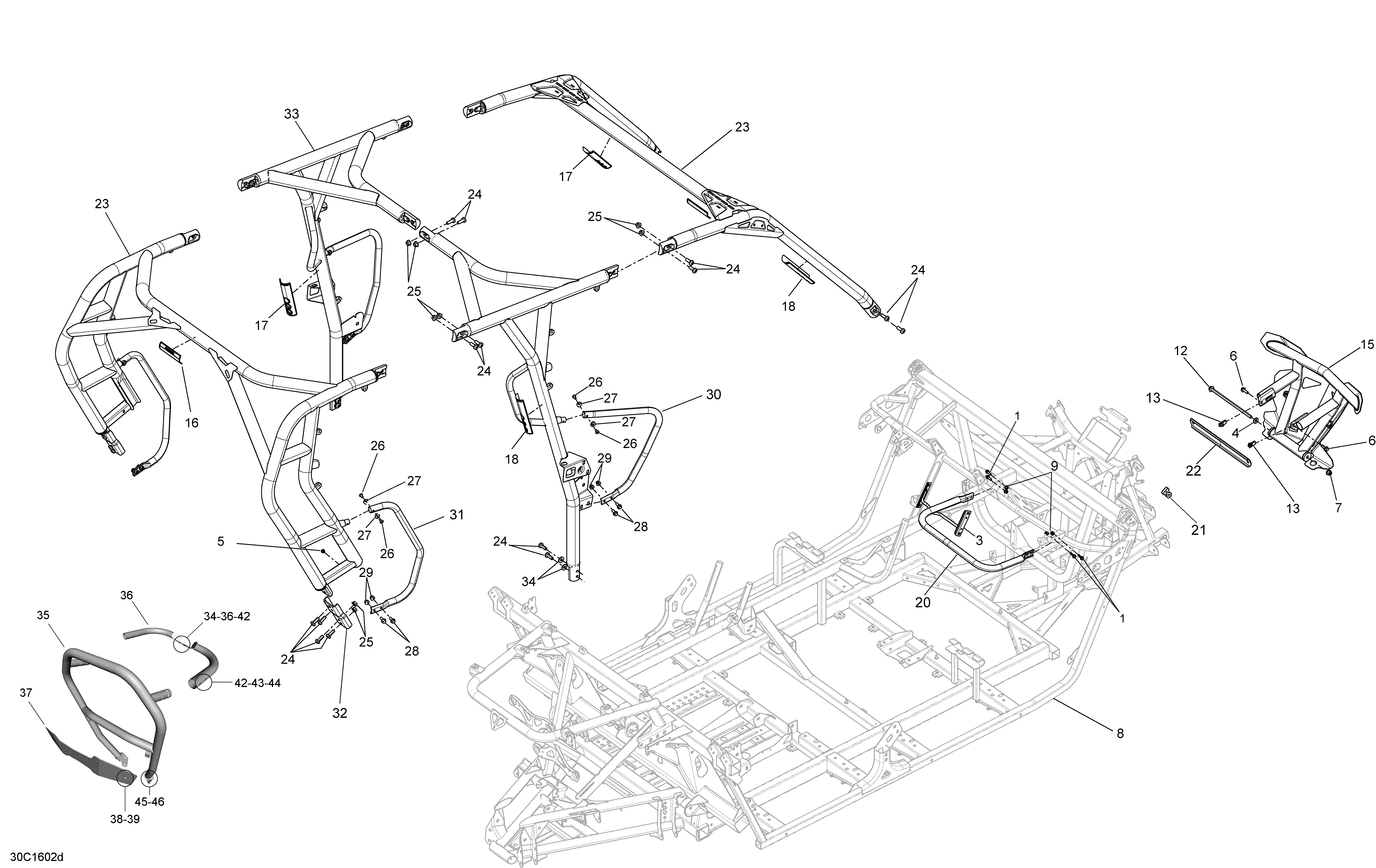

09- Frame Max- XDS Package для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3705203717 Reinforcement PanelReinforcement Panel
-
3705203717 Reinforcement PanelReinforcement Panel
-
4234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
5293450274 InsertInsert
-
6207382544 Hex. Flange ScrewHex. Flange Screw
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8705204826 Black Frame MaxBlack Frame Max
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12250000597 Hex. Flange ScrewHex. Flange Screw
-
13250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
15705203685 Black Front Bumper. Europe ModelBlack Front Bumper. Europe Model
-
15705203685 Black Front Bumper. Package XDSSTDBlack Front Bumper. Package XDSSTD
-
15705204266 Front Bumper Ass'y. Package XDSDPSFront Bumper Ass'y. Package XDSDPS
-
15705204266 Front Bumper Ass'y. Package XDSXRSFront Bumper Ass'y. Package XDSXRS
-
16704903492 Warning LabelWarning Label
-
17704903679 Warning LabelWarning Label
-
18704903680 Warning LabelWarning Label
-
20705203332 Black HandleBlack Handle
-
21705203415 Binding BlockBinding Block
-
21705203415 Binding BlockBinding Block
-
22705203454 Front Suspension LinkFront Suspension Link
-
23715003420 Black Cage Kit, front and Rear Section. Black Cage ModelBlack Cage Kit, front and Rear Section. Black Cage Model
-
23715003423 Blue Cage Kit, Front And Rear Section. Blue Cage ModelBlue Cage Kit, Front And Rear Section. Blue Cage Model
-
23715003426 Manta Green Cage Kit. Manta Green Cage ModelManta Green Cage Kit. Manta Green Cage Model
-
23715003427 Red Cage Kit. Red Cage ModelRed Cage Kit. Red Cage Model
-
24250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
25233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
26250000789 Torx Truss M6X14Torx Truss M6X14
-
27705202223 Offset WasherOffset Washer
-
28207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
29233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30705203642 Black RH Front Side Protector Tube. Black Cage ModelBlack RH Front Side Protector Tube. Black Cage Model
-
30705204067 Manta Green RH Side Protector Tube. Manta Green Cage ModelManta Green RH Side Protector Tube. Manta Green Cage Model
-
30705204069 Red RH Front Side Protector Tube. Red Cage ModelRed RH Front Side Protector Tube. Red Cage Model
-
30705204819 Blue RH Front Side Protector Tube. Blue Cage ModelBlue RH Front Side Protector Tube. Blue Cage Model
-
30705203643 Black LH Front Side Protector Tube. Black Cage ModelBlack LH Front Side Protector Tube. Black Cage Model
-
30705204066 Manta Green LH Side Protector Tube. Manta Green ModelManta Green LH Side Protector Tube. Manta Green Model
-
30705204066 Manta Green LH Side Protector Tube. Manta Green Cage ModelManta Green LH Side Protector Tube. Manta Green Cage Model
-
30705204068 Red LH Front Side Protector Tube. Red Cage ModelRed LH Front Side Protector Tube. Red Cage Model
-
30705204818 Blue LH Front Side Protector Tube. Blue Cage ModelBlue LH Front Side Protector Tube. Blue Cage Model
-
31705203649 Black LH Rear Side Protector Tube. Black Cage ModelBlack LH Rear Side Protector Tube. Black Cage Model
-
31705204062 Manta Green LH Rear Protector Tube. Manta Green Cage ModelManta Green LH Rear Protector Tube. Manta Green Cage Model
-
31705204064 Red LH Rear Side Protector Tube. Red Cage ModelRed LH Rear Side Protector Tube. Red Cage Model
-
31705204820 Blue LH Rear Side Protector Tube. Blue Cage ModelBlue LH Rear Side Protector Tube. Blue Cage Model
-
31705203652 Black RH Rear Side Protector Tube. Black Cage ModelBlack RH Rear Side Protector Tube. Black Cage Model
-
31705204063 Manta Green RH Rear Protector Tube. Manta Green Cage ModelManta Green RH Rear Protector Tube. Manta Green Cage Model
-
31705204065 Red RH Rear Side Protector Tube. Red Cage ModelRed RH Rear Side Protector Tube. Red Cage Model
-
31705204821 Blue RH Rear Side Protector Tube. Blue Cage ModelBlue RH Rear Side Protector Tube. Blue Cage Model
-
32705203514 Rear Hand MountingRear Hand Mounting
-
33715003424 Black Center Safety Cage Kit. Black Cage ModelBlack Center Safety Cage Kit. Black Cage Model
-
33715003425 Blue Center Safety Cage Kit. Blue Cage ModelBlue Center Safety Cage Kit. Blue Cage Model
-
33715003428 Manta Green Center Safety Cage Kit. Manta Green Cage ModelManta Green Center Safety Cage Kit. Manta Green Cage Model
-
33715003429 Red Center Safety Cage Kit. Red Cage ModelRed Center Safety Cage Kit. Red Cage Model
-
34250200154 WasherWasher
-
35705204767 Rear Bumper. Package XDSXRSRear Bumper. Package XDSXRS
-
36705204766 Upper Arm. Package XDSXRSUpper Arm. Package XDSXRS
-
37705203282 Rear Protector. Package XDSXRSRear Protector. Package XDSXRS
-
38250000234 Torx Screw M6 X 20, Stainless. Package XDSXRSTorx Screw M6 X 20, Stainless. Package XDSXRS
-
39233261494 Hex. Elastic Flanged Nut M6. Package XDSXRSHex. Elastic Flanged Nut M6. Package XDSXRS
-
40250000761 Torx Truss Screw M8 X 50. Package XDSXRSTorx Truss Screw M8 X 50. Package XDSXRS
-
41234082410 Flat Washer 8 mm. Package XDSXRSFlat Washer 8 mm. Package XDSXRS
-
42233281464 Elastic Flange Nut M8. Package XDSXRSElastic Flange Nut M8. Package XDSXRS
-
43250000383 Torx Screw M8 X 60, Scotch Grip. Package XDSXRSTorx Screw M8 X 60, Scotch Grip. Package XDSXRS
-
44708300563 Washer. Package XDSXRSWasher. Package XDSXRS
-
45207609046 Screw-Hex Flange M10 X 90. Package XDSXRSScrew-Hex Flange M10 X 90. Package XDSXRS
-
46233201436 Flanged Elastic Nut M10. Package XDSXRSFlanged Elastic Nut M10. Package XDSXRS
-
47250200154 WasherWasher
