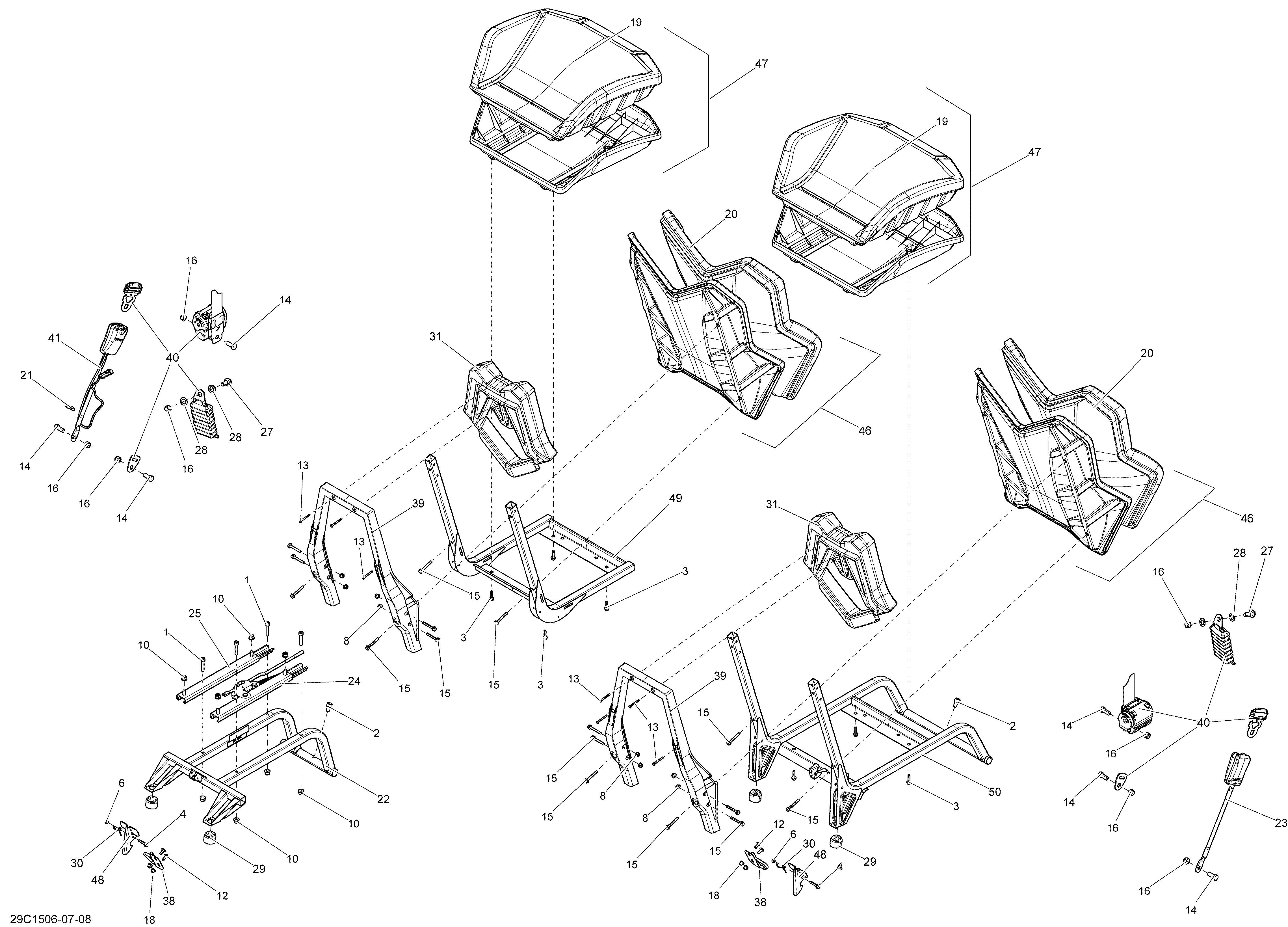

09- Seat для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
2205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
3207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
8233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
14250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
15250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
16250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
18293450274 InsertInsert
-
19708001103 Black Seat Cover. Package STD - DPS- XCBlack Seat Cover. Package STD - DPS- XC
-
19708001084 Seat Cover. Package-XRS, Model Black-YellowSeat Cover. Package-XRS, Model Black-Yellow
-
19708001887 Seat Cover. Package-XRS, Model Carbon FiberSeat Cover. Package-XRS, Model Carbon Fiber
-
19708001084 Seat Cover. Package-XRS/DPS, Model Black-YellowSeat Cover. Package-XRS/DPS, Model Black-Yellow
-
19708001333 Seat Cover. Package-XRS/DPS, Model White-Red-Black CageSeat Cover. Package-XRS/DPS, Model White-Red-Black Cage
-
19708001333 Seat Cover. Package-XRS/DPS, Model RedSeat Cover. Package-XRS/DPS, Model Red
-
19708001883 Seat Cover. Package XDSDPS Model Silver/BlueSeat Cover. Package XDSDPS Model Silver/Blue
-
19708001883 Seat Cover. Package XXC Model Silver/BlueSeat Cover. Package XXC Model Silver/Blue
-
19708001887 Seat Cover. Package XMR WhiteSeat Cover. Package XMR White
-
19708001883 Seat Cover. Package XMR Silver/Black/BlueSeat Cover. Package XMR Silver/Black/Blue
-
19708001554 Seat Cover. Package XMR Digital CamoSeat Cover. Package XMR Digital Camo
-
20708000675 Black Backrest Cover. Package STD - DPS- XCBlack Backrest Cover. Package STD - DPS- XC
-
20708001080 Backrest Cover. Package-XRS, Model Black-YellowBackrest Cover. Package-XRS, Model Black-Yellow
-
20708001885 Backrest Cover. Package-XRS, Model Carbon FiberBackrest Cover. Package-XRS, Model Carbon Fiber
-
20708001080 Backrest Cover. Package-XRS/DPS, Model Black-YellowBackrest Cover. Package-XRS/DPS, Model Black-Yellow
-
20708001331 Backrest Cover. Package-XRS/DPS, Model White-Red-Black CageBackrest Cover. Package-XRS/DPS, Model White-Red-Black Cage
-
20708001331 Backrest Cover. Package-XRS/DPS, Model RedBackrest Cover. Package-XRS/DPS, Model Red
-
20708001889 Backrest Cover. Package XDSDPS Model Silver/BlueBackrest Cover. Package XDSDPS Model Silver/Blue
-
20708001881 Backrest Cover. Package XXC Model Silver/BlueBackrest Cover. Package XXC Model Silver/Blue
-
20708001885 Backrest Cover. Package XMR WhiteBackrest Cover. Package XMR White
-
20708001881 Backrest Cover. Package XMR Silver/Black/BlueBackrest Cover. Package XMR Silver/Black/Blue
-
20708001553 Backrest Cover. Package XMR Digital CamoBackrest Cover. Package XMR Digital Camo
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
22708000667 Seat MemberSeat Member
-
23708000844 Passenger Buckle SidePassenger Buckle Side
-
23708000857 Passenger Buckle Side. Model-EuropePassenger Buckle Side. Model-Europe
-
24708001739 RH RailRH Rail
-
25708000848 LH RailLH Rail
-
27708000890 Safety Belt ScrewSafety Belt Screw
-
28708000891 Position WasherPosition Washer
-
29708000899 Rubber BumperRubber Bumper
-
30708000921 SpringSpring
-
31708001074 Head RestHead Rest
-
38708001482 RH Retaining RodRH Retaining Rod
-
38708001477 LH Retaining RodLH Retaining Rod
-
39708001245 Seat SupportSeat Support
-
40708001130 Safety Belt. Model-EuropeSafety Belt. Model-Europe
-
40708001302 Safety BeltSafety Belt
-
41708000856 Driver Buckle Side. Model-EuropeDriver Buckle Side. Model-Europe
-
41708000987 Driver Buckle SideDriver Buckle Side
-
46708001316 Black Backrest Ass'y. Package STD - DPS- XCBlack Backrest Ass'y. Package STD - DPS- XC
-
46708001338 Backrest Assembly. Package-XRS/DPS, Model White-Red-Black CageBackrest Assembly. Package-XRS/DPS, Model White-Red-Black Cage
-
46708001317 Backrest Assembly. Package-XRS/DPS, Model Black-YellowBackrest Assembly. Package-XRS/DPS, Model Black-Yellow
-
46708001338 Backrest Assembly. Package-XRS/DPS, Model RedBackrest Assembly. Package-XRS/DPS, Model Red
-
46708001317 Backrest Assembly. Package-XRS, Model Black-YellowBackrest Assembly. Package-XRS, Model Black-Yellow
-
46708001884 Backrest Assembly. Package-XRS, Model Carbon FiberBackrest Assembly. Package-XRS, Model Carbon Fiber
-
46708001888 Backrest Assembly. Package XDSDPS Model Silver/BlueBackrest Assembly. Package XDSDPS Model Silver/Blue
-
46708001880 Backrest Assembly. Package XXC Model Silver/BlueBackrest Assembly. Package XXC Model Silver/Blue
-
46708001884 Backrest Assembly. Package XMR Model WhiteBackrest Assembly. Package XMR Model White
-
46708001880 Backrest Assembly. Package XMR Silver/Black/BlueBackrest Assembly. Package XMR Silver/Black/Blue
-
46708001550 Backrest Assembly. Package XMR Digital CamoBackrest Assembly. Package XMR Digital Camo
-
47708001318 Cushion Assembly. Package STD - DPS- XCCushion Assembly. Package STD - DPS- XC
-
47708001552 Cushion Assembly. Package XDSDPS Model BlackCushion Assembly. Package XDSDPS Model Black
-
47708001552 Cushion Assembly. Package XDSDPS Model Carbon fiberCushion Assembly. Package XDSDPS Model Carbon fiber
-
47708001339 Cushion Assembly. Package-XRS/DPS, Model White-Red-Black CageCushion Assembly. Package-XRS/DPS, Model White-Red-Black Cage
-
47708001319 Cushion Assembly. Package-XRS/DPS, Model Black-YellowCushion Assembly. Package-XRS/DPS, Model Black-Yellow
-
47708001339 Cushion Assembly. Package-XRS/DPS, Model RedCushion Assembly. Package-XRS/DPS, Model Red
-
47708001319 Cushion Assembly. Package-XRS, Model Black-YellowCushion Assembly. Package-XRS, Model Black-Yellow
-
47708001886 Cushion Assembly. Package-XRS, Model Carbon FiberCushion Assembly. Package-XRS, Model Carbon Fiber
-
47708001882 Cushion Assembly. Package XDSDPS Model Silver/BlueCushion Assembly. Package XDSDPS Model Silver/Blue
-
47708001882 Cushion Assembly. Package XXC Model Silver/BlueCushion Assembly. Package XXC Model Silver/Blue
-
47708001886 Cushion Assembly. Package XMR Model WhiteCushion Assembly. Package XMR Model White
-
47708001882 Cushion Assembly. Package XMR Silver/Black/BlueCushion Assembly. Package XMR Silver/Black/Blue
-
47708001552 Cushion Assembly. Package XMR Digital CamoCushion Assembly. Package XMR Digital Camo
-
48708001355 Seat LatchSeat Latch
-
49708001356 Operator FrameOperator Frame
-
50708001357 Seat FrameSeat Frame
