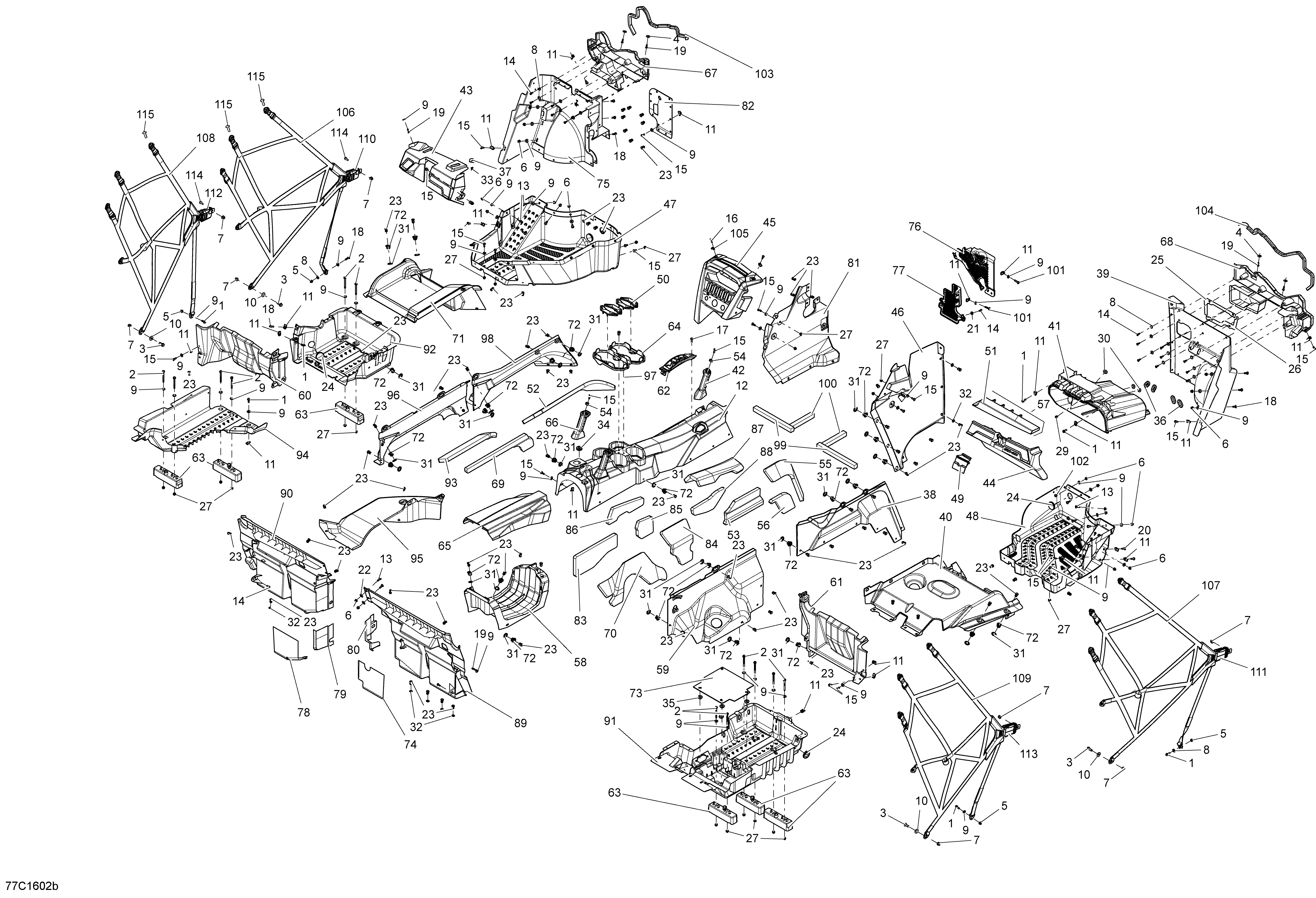

09- Cab Interior - MAX для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
2207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
3207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
3207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
4224060201 Flat WasherFlat Washer
-
4224060201 Flat WasherFlat Washer
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
6233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234062410 Flat Washer 6 mmFlat Washer 6 mm
-
8234062410 Flat Washer 6 mmFlat Washer 6 mm
-
9234062670 Flat Washer, StainlessFlat Washer, Stainless
-
9234062670 Flat Washer, StainlessFlat Washer, Stainless
-
10234082410 Flat Washer 8 mmFlat Washer 8 mm
-
10234082410 Flat Washer 8 mmFlat Washer 8 mm
-
11250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
11250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
12715003370 Front Console Kit. MAX Model Except Package XDS-DPSFront Console Kit. MAX Model Except Package XDS-DPS
-
12715003370 Front Console Kit. MAX Model Except Package XDS-DPSFront Console Kit. MAX Model Except Package XDS-DPS
-
12715003372 Front Console Kit. MAX Model Package XDSDPSFront Console Kit. MAX Model Package XDSDPS
-
12715003372 Front Console Kit. MAX Model Package XDSDPSFront Console Kit. MAX Model Package XDSDPS
-
13250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
13250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
14250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
14250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
15250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
15250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
16250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
16250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
17250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
17250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
18250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
18250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
19250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
19250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
20250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
20250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
21250200025 Washer M5Washer M5
-
21250200025 Washer M5Washer M5
-
22250200040 Flat WasherFlat Washer
-
22250200040 Flat WasherFlat Washer
-
23293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
23293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
24293250242 Rubber CoverRubber Cover
-
24293250242 Rubber CoverRubber Cover
-
25293250252 Upper SealUpper Seal
-
25293250252 Upper SealUpper Seal
-
26293250253 Bottom SealBottom Seal
-
26293250253 Bottom SealBottom Seal
-
27293450274 InsertInsert
-
27293450274 InsertInsert
-
29293830005 Rubber BumperRubber Bumper
-
29293830005 Rubber BumperRubber Bumper
-
30414859400 CapCap
-
30414859400 CapCap
-
31503189273 WasherWasher
-
31503189273 WasherWasher
-
32506151252 WasherWasher
-
32506151252 WasherWasher
-
33517302785 ClipClip
-
33517302785 ClipClip
-
34517303756 Grommet. Engine 1000RGrommet. Engine 1000R
-
34517303756 Grommet. Engine 1000RGrommet. Engine 1000R
-
35705003264 GrommetGrommet
-
35705003264 GrommetGrommet
-
36705003668 Oblong GrommetOblong Grommet
-
36705003668 Oblong GrommetOblong Grommet
-
37705003841 Support PlateSupport Plate
-
37705003841 Support PlateSupport Plate
-
38707900002 RH Side ConsoleRH Side Console
-
38707900002 RH Side ConsoleRH Side Console
-
39707900004 RH Front FloorRH Front Floor
-
39707900004 RH Front FloorRH Front Floor
-
40707900006 RH Under Seat PlateRH Under Seat Plate
-
40707900006 RH Under Seat PlateRH Under Seat Plate
-
41707900009 Storage BinStorage Bin
-
41707900009 Storage BinStorage Bin
-
42707900011 Passenger HandlePassenger Handle
-
42707900011 Passenger HandlePassenger Handle
-
43715001250 Dashboard Ass'yDashboard Ass'y
-
43715001250 Dashboard Ass'yDashboard Ass'y
-
44707900221 Luggage Cover KitLuggage Cover Kit
-
44707900221 Luggage Cover KitLuggage Cover Kit
-
45707900019 Lower Central Dashboard Ass'yLower Central Dashboard Ass'y
-
45707900019 Lower Central Dashboard Ass'yLower Central Dashboard Ass'y
-
46707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
46707900021 RH Fixe Side ConsoleRH Fixe Side Console
-
47707900022 LH Lower FloorLH Lower Floor
-
47707900022 LH Lower FloorLH Lower Floor
-
48707900023 RH Lower FloorRH Lower Floor
-
48707900023 RH Lower FloorRH Lower Floor
-
49707900031 LatchLatch
-
49707900031 LatchLatch
-
50707900036 Cup RetainerCup Retainer
-
50707900036 Cup RetainerCup Retainer
-
51707900038 Trim Glove BoxTrim Glove Box
-
51707900038 Trim Glove BoxTrim Glove Box
-
52707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
52707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
53707900045 RH Lateral Console FoamRH Lateral Console Foam
-
53707900045 RH Lateral Console FoamRH Lateral Console Foam
-
54707900048 Connector TubeConnector Tube
-
54707900048 Connector TubeConnector Tube
-
55707900055 RH Lateral Console FoamRH Lateral Console Foam
-
55707900055 RH Lateral Console FoamRH Lateral Console Foam
-
56707900056 RH Lateral Console FoamRH Lateral Console Foam
-
56707900056 RH Lateral Console FoamRH Lateral Console Foam
-
57707900062 Trim Glove BoxTrim Glove Box
-
57707900062 Trim Glove BoxTrim Glove Box
-
58707900075 Rear Central Console. Engine 1000RRear Central Console. Engine 1000R
-
58707900075 Rear Central Console. Engine 1000RRear Central Console. Engine 1000R
-
58707900334 Rear Console Kit. Engine 1000TRear Console Kit. Engine 1000T
-
58707900334 Rear Console Kit. Engine 1000TRear Console Kit. Engine 1000T
-
59707900080 RH Rear Console PanelRH Rear Console Panel
-
59707900080 RH Rear Console PanelRH Rear Console Panel
-
60707900082 LH Rear Upper Floor CoverLH Rear Upper Floor Cover
-
60707900082 LH Rear Upper Floor CoverLH Rear Upper Floor Cover
-
61707900083 Seat CoverSeat Cover
-
61707900083 Seat CoverSeat Cover
-
62707900088 Shift Lever IndicatorShift Lever Indicator
-
62707900088 Shift Lever IndicatorShift Lever Indicator
-
63707900099 Support PlateSupport Plate
-
63707900099 Support PlateSupport Plate
-
63707900099 Support PlateSupport Plate
-
63707900099 Support PlateSupport Plate
-
63707900099 Support PlateSupport Plate
-
63707900099 Support PlateSupport Plate
-
64707900100 Cup HolderCup Holder
-
64707900100 Cup HolderCup Holder
-
65707900196 Rear Central Console Cover. Red ModelRear Central Console Cover. Red Model
-
65707900196 Rear Central Console Cover. Red ModelRear Central Console Cover. Red Model
-
65707900229 Rear Console Cover Kit. Engine 1000R Except Can-Am Red ModelRear Console Cover Kit. Engine 1000R Except Can-Am Red Model
-
65707900229 Rear Console Cover Kit. Engine 1000R Except Can-Am Red ModelRear Console Cover Kit. Engine 1000R Except Can-Am Red Model
-
66707900103 HandleHandle
-
66707900103 HandleHandle
-
67707900113 LH Floor SupportLH Floor Support
-
67707900113 LH Floor SupportLH Floor Support
-
68707900114 RH Floor SupportRH Floor Support
-
68707900114 RH Floor SupportRH Floor Support
-
69707900120 Acoustic FoamAcoustic Foam
-
69707900120 Acoustic FoamAcoustic Foam
-
70707900121 Acoustic FoamAcoustic Foam
-
70707900121 Acoustic FoamAcoustic Foam
-
71707900130 Under Seat CoverUnder Seat Cover
-
71707900130 Under Seat CoverUnder Seat Cover
-
72707900133 InsertInsert
-
72707900133 InsertInsert
-
73707900163 Battery CoverBattery Cover
-
73707900163 Battery CoverBattery Cover
-
74707900167 Heat ShieldHeat Shield
-
74707900167 Heat ShieldHeat Shield
-
75707900175 LH Front Upper FloorLH Front Upper Floor
-
75707900175 LH Front Upper FloorLH Front Upper Floor
-
76707900178 GrillGrill
-
76707900178 GrillGrill
-
77707900180 GrillGrill
-
77707900180 GrillGrill
-
78707900182 Heat ShieldHeat Shield
-
78707900182 Heat ShieldHeat Shield
-
79707900183 Heat ShieldHeat Shield
-
79707900183 Heat ShieldHeat Shield
-
80707900184 Heat ShieldHeat Shield
-
80707900184 Heat ShieldHeat Shield
-
81707900193 Front Side Dash PanelFront Side Dash Panel
-
81707900193 Front Side Dash PanelFront Side Dash Panel
-
82707900204 DeflectorDeflector
-
82707900204 DeflectorDeflector
-
83707900205 Acoustic FoamAcoustic Foam
-
83707900205 Acoustic FoamAcoustic Foam
-
84707900206 Acoustic FoamAcoustic Foam
-
84707900206 Acoustic FoamAcoustic Foam
-
85707900209 Acoustic FoamAcoustic Foam
-
85707900209 Acoustic FoamAcoustic Foam
-
86707900210 Acoustic FoamAcoustic Foam
-
86707900210 Acoustic FoamAcoustic Foam
-
87707900211 Acoustic Foam. Engine 1000RAcoustic Foam. Engine 1000R
-
87707900211 Acoustic Foam. Engine 1000RAcoustic Foam. Engine 1000R
-
88707900212 Acoustic Foam. Engine 1000RAcoustic Foam. Engine 1000R
-
88707900212 Acoustic Foam. Engine 1000RAcoustic Foam. Engine 1000R
-
89707900219 RH Rear DeflectorRH Rear Deflector
-
89707900219 RH Rear DeflectorRH Rear Deflector
-
90707900220 LH Rear DeflectorLH Rear Deflector
-
90707900220 LH Rear DeflectorLH Rear Deflector
-
91707900231 RH Lower Rear FloorRH Lower Rear Floor
-
91707900231 RH Lower Rear FloorRH Lower Rear Floor
-
92707900331 Rear FloorRear Floor
-
92707900331 Rear FloorRear Floor
-
93707900333 Acoustic FoamAcoustic Foam
-
93707900333 Acoustic FoamAcoustic Foam
-
94707900387 Under coverUnder cover
-
94707900387 Under coverUnder cover
-
95707900388 Rear Floor capRear Floor cap
-
95707900388 Rear Floor capRear Floor cap
-
96707900391 Rear LH consolRear LH consol
-
96707900391 Rear LH consolRear LH consol
-
97732610072 Push NutPush Nut
-
97732610072 Push NutPush Nut
-
98707900001 LH Side ConsoleLH Side Console
-
98707900001 LH Side ConsoleLH Side Console
-
99293250319 Seal TraySeal Tray
-
99293250319 Seal TraySeal Tray
-
100293250319 Seal TraySeal Tray
-
100293250319 Seal TraySeal Tray
-
101250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
101250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
102250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
102250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
103293200093 Neoprene SealNeoprene Seal
-
103293200093 Neoprene SealNeoprene Seal
-
104293200093 Neoprene SealNeoprene Seal
-
104293200093 Neoprene SealNeoprene Seal
-
105250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
105250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
106707900237 Front LH Safety Net. Include Buckle 715900398Front LH Safety Net. Include Buckle 715900398
-
106707900237 Front LH Safety Net. Include Buckle 715900398Front LH Safety Net. Include Buckle 715900398
-
107707900238 Front RH Safety Net. Include Buckle 715900398Front RH Safety Net. Include Buckle 715900398
-
107707900238 Front RH Safety Net. Include Buckle 715900398Front RH Safety Net. Include Buckle 715900398
-
108707900239 Safety netSafety net
-
108707900239 Safety netSafety net
-
109707900240 Safety netSafety net
-
109707900240 Safety netSafety net
-
110715900398 BuckleBuckle
-
110715900398 BuckleBuckle
-
111715900398 BuckleBuckle
-
111715900398 BuckleBuckle
-
112715900398 BuckleBuckle
-
112715900398 BuckleBuckle
-
113715900398 BuckleBuckle
-
113715900398 BuckleBuckle
-
114207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
114207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
115250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
115250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
116705205445 SupportSupport
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase - 1000R EFI
- 01- Crankcase - Turbo
- 01- Crankshaft, Piston and Cylinder - 1000R EFI
- 01- Crankshaft, Piston and Cylinder - Turbo
- 01- Cylinder Head, Front - 1000R EFI
- 01- Cylinder Head, Front - Turbo
- 01- Cylinder Head, Rear - 1000R EFI
- 01- Cylinder Head, Rear - Turbo
- 01- Engine
- 01- Engine - XMR
- 01- Engine and Engine Support - MAX
- 01- Engine Cooling - 1000R EFI
- 01- Engine Cooling - Turbo
- 01- Engine Lubrication - 1000R EFI
- 01- Engine Lubrication - Turbo
- 01- Exhaust System
- 01- Exhaust System - Turbo
- 01- Gear Box and Components - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box and Components - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Assy - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Assy - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Output Shaft - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Output Shaft - GBPS - Maverick-Maverick MAX, XMR
- 01- Turbocharger
- 02- Air Intake
- 02- Air Intake - Turbo
- 02- Air Intake Manifold and Throttle Body - 1000R EFI
- 02- Air Intake Manifold and Throttle Body - Turbo
- 02- Fuel System
- 03- Magneto and Electric Starter - 1000R EFI
- 03- Magneto and Electric Starter - Turbo
- 05- Transmission - 1000R EFI
- 05- Transmission - Turbo
- 05- Transmission, Driven Pulley - Turbo
- 06- Brakes
- 07- Drive System, Front
- 07- Front Suspension
- 07- Steering
- 08- Drive Shaft - 1000R EFI
- 08- Drive Shaft - Turbo
- 08- Rear Drive System
- 08- Rear Suspension
- 09- Body and Accessories
- 09- Body and Accessories - MAX
- 09- Cab Interior
- • 09- Cab Interior - MAX
- 09- Decals
- 09- Decals - MAX XDS-XRS
- 09- Decals - MAX-DPS
- 09- Decals - XDS-XRS
- 09- Frame - MAX, Except XDS Package
- 09- Frame - XDS Package
- 09- Frame Max- XDS Package
- 09- Frame, Except XDS Package
- 09- Mirrors and Tools
- 09- Seat
- 09- Seat - MAX
- 10- Electrical Harness Assy - Except MAX
- 10- Electrical Harness Assy - MAX
- 10- Electrical System - Europe Except XDS-XRS
- 10- Electrical System - Except XDS-XRS
- 10- Electrical System - XDS-XRS
- 10- Engine Harness and Electronic Module - Maverick Turbo-Maverick MAX Turbo
- 10- Engine Harness and Electronic Module Maverick - 1000R
- 10- Engine Harness and Electronic Module Maverick MAX - 1000R
