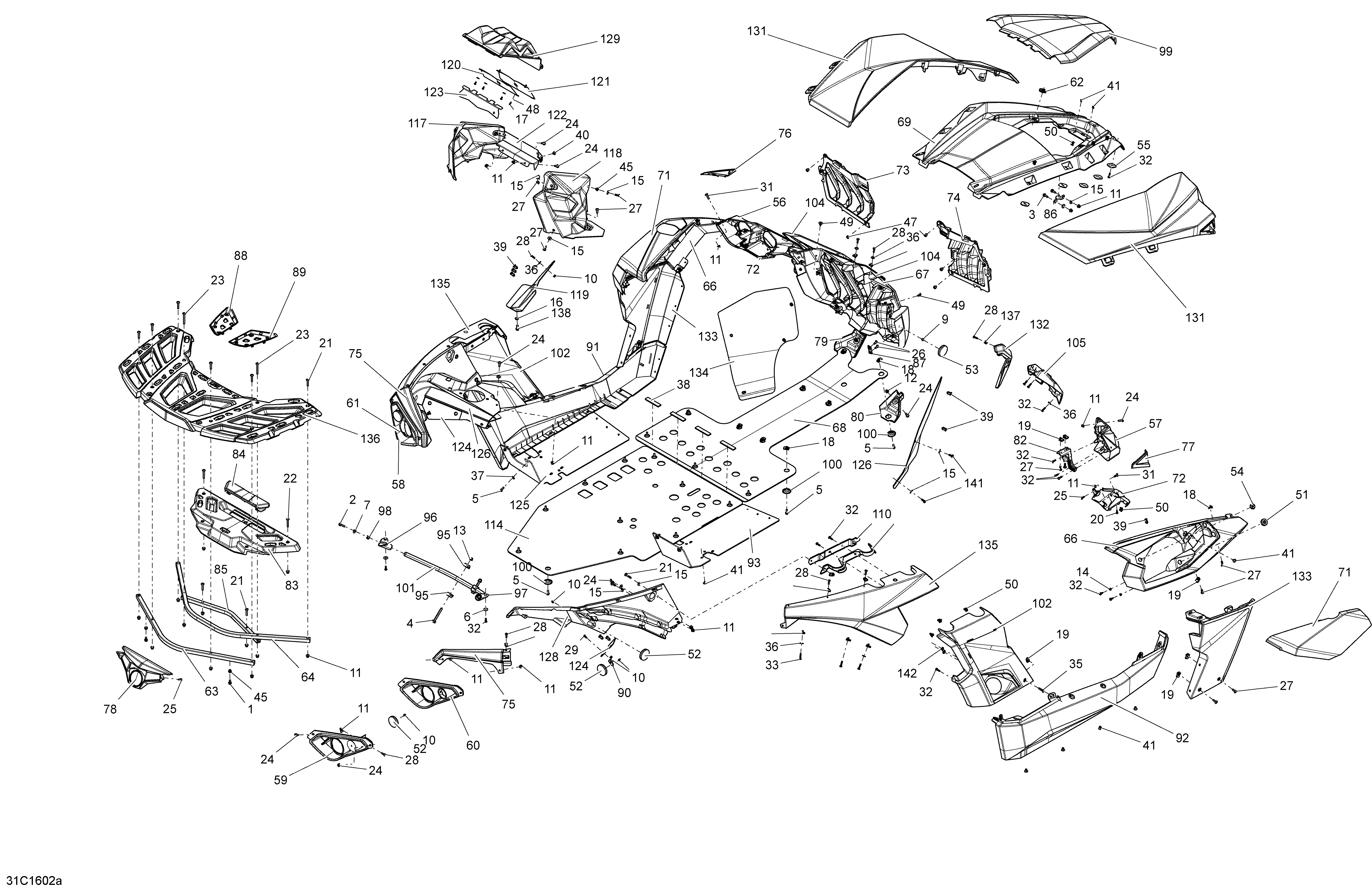

09- Body and Accessories для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
3207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
6224060201 Flat WasherFlat Washer
-
7224061201 Flat WasherFlat Washer
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233251434 Flanged Elastic Nut M5. Except Europe ModelFlanged Elastic Nut M5. Except Europe Model
-
10233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14234051410 Flat Washer M5Flat Washer M5
-
15234062670 Flat Washer, StainlessFlat Washer, Stainless
-
16234281474 Conical Spring Washer M8. Engine 1000T Except Europe ModelConical Spring Washer M8. Engine 1000T Except Europe Model
-
17241140060 Screw K40 X 10Screw K40 X 10
-
18250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000202 Self Tapping Screw #8 X 5/8Self Tapping Screw #8 X 5/8
-
21250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
22250000647 Torx Screw M6 X 45. Engine 1000RTorx Screw M6 X 45. Engine 1000R
-
23250000648 Torx Screw M6 X 60. Engine 1000RTorx Screw M6 X 60. Engine 1000R
-
24250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
26250000721 Torx ScrewTorx Screw
-
27250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
28250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
29250000742 Torx Screw M5 X 14. Europe ModelTorx Screw M5 X 14. Europe Model
-
30250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
31250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
32241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
32250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
33250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
34250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
35250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
36250200025 Washer M5Washer M5
-
37250200097 Flat WasherFlat Washer
-
38291001932 PadPad
-
39293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
40293150103 Black Pop Rivet 3/16''. Engine 1000TBlack Pop Rivet 3/16''. Engine 1000T
-
41293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
45293450274 InsertInsert
-
47293830005 Rubber BumperRubber Bumper
-
48391301000 WasherWasher
-
49414644300 DartDart
-
50517302785 ClipClip
-
51517303756 GrommetGrommet
-
52705002408 Red ReflectorRed Reflector
-
52705002408 Red Reflector. Europe ModelRed Reflector. Europe Model
-
54705003264 GrommetGrommet
-
55705003841 Support PlateSupport Plate
-
56705004508 LH Front FaciaLH Front Facia
-
57705004509 RH Front FaciaRH Front Facia
-
58705004731 LH Rear Facia. Except Europe ModelLH Rear Facia. Except Europe Model
-
59705004732 RH Rear Facia. Except Europe ModelRH Rear Facia. Except Europe Model
-
60705004926 RH Rear Facia. Europe ModelRH Rear Facia. Europe Model
-
61705004927 LH Rear Facia. Europe ModelLH Rear Facia. Europe Model
-
62705005156 Oval WasherOval Washer
-
63705005469 TubeTube
-
64705005470 TubeTube
-
65705005480 Rear Skid PlateRear Skid Plate
-
66705006558 Black LH Front Fender. Black ModelBlack LH Front Fender. Black Model
-
66705006558 Black LH Front Fender. Package XMR WhiteBlack LH Front Fender. Package XMR White
-
66705006558 Black LH Front Fender. Package XXC WhiteBlack LH Front Fender. Package XXC White
-
66705006559 Black RH Front Fender. Black ModelBlack RH Front Fender. Black Model
-
66705006559 Black RH Front Fender. Package XMR WhiteBlack RH Front Fender. Package XMR White
-
66705006559 Black RH Front Fender. Package XXC WhiteBlack RH Front Fender. Package XXC White
-
66705009666 Timeless Black LH Front Fender. Package XMR SilverTimeless Black LH Front Fender. Package XMR Silver
-
66705009667 Timeless Black RH Front Fender. Package XMR SilverTimeless Black RH Front Fender. Package XMR Silver
-
66705007336 Red LH Front Fender. Red ModelRed LH Front Fender. Red Model
-
66705007337 Red RH Front Fender. Red ModelRed RH Front Fender. Red Model
-
66705007978 White LH Front Fender. Package XC, STD White ModelWhite LH Front Fender. Package XC, STD White Model
-
66705007979 White RH Front Fender. Package XC, STD White ModelWhite RH Front Fender. Package XC, STD White Model
-
66705008466 Digital CAMO LH Front Fender. Digital Camo & Manta GreenDigital CAMO LH Front Fender. Digital Camo & Manta Green
-
66705008467 Digital CAMO RH Front Fender. Digital Camo & Manta GreenDigital CAMO RH Front Fender. Digital Camo & Manta Green
-
66705008534 Black Carbon Fiber LH Front Fender. Black Carbon ModelBlack Carbon Fiber LH Front Fender. Black Carbon Model
-
66705008535 Black Carbon Fiber RH Front Fender. Black Carbon ModelBlack Carbon Fiber RH Front Fender. Black Carbon Model
-
66705008941 Quarry Gray LH Front Fender. Quarry Gray ModelQuarry Gray LH Front Fender. Quarry Gray Model
-
66705008942 Quarry Gray RH Front Fender. Quarry Gray ModelQuarry Gray RH Front Fender. Quarry Gray Model
-
66705009668 Hyper Silver LH Front Fender. Package XDSDPS SilverHyper Silver LH Front Fender. Package XDSDPS Silver
-
66705009669 Hyper Silver RH Front Fender. Package XDSDPS SilverHyper Silver RH Front Fender. Package XDSDPS Silver
-
67705005784 Front Radiator GrillFront Radiator Grill
-
68705005798 Front Skid PlateFront Skid Plate
-
69705005821 Fixe Center Hood. Except Package XMRFixe Center Hood. Except Package XMR
-
71705006566 Black LH Cover Front Fender. Package XMR WhiteBlack LH Cover Front Fender. Package XMR White
-
71705006566 Black LH Cover Front Fender. Package XXC WhiteBlack LH Cover Front Fender. Package XXC White
-
71705006567 Black RH Cover Front Fender. Package XMR WhiteBlack RH Cover Front Fender. Package XMR White
-
71705006567 Black RH Cover Front Fender. Package XXC WhiteBlack RH Cover Front Fender. Package XXC White
-
71705009680 Timeless Black LH Cover Fender. Package XMR SilverTimeless Black LH Cover Fender. Package XMR Silver
-
71705009681 Timeless Black RH Cover Fender. Package XMR SilverTimeless Black RH Cover Fender. Package XMR Silver
-
71705008536 Black carbon Fiber LH Cover Front Fender. Black Carbon ModelBlack carbon Fiber LH Cover Front Fender. Black Carbon Model
-
71705008537 Black Carbon Fiber RH Cover Front Fender. Black Carbon ModelBlack Carbon Fiber RH Cover Front Fender. Black Carbon Model
-
71705007340 Red LH Cover Front Fender. Red ModelRed LH Cover Front Fender. Red Model
-
71705007342 Red RH Cover Front Fender. Red ModelRed RH Cover Front Fender. Red Model
-
71705007983 White LH Cover Front Fender. Package XC, STD White ModelWhite LH Cover Front Fender. Package XC, STD White Model
-
71705007983 White LH Cover Front Fender. Package XDSDPS BlackWhite LH Cover Front Fender. Package XDSDPS Black
-
71705007983 White LH Cover Front Fender. Package XDSSTDWhite LH Cover Front Fender. Package XDSSTD
-
71705007984 White RH Cover Front Fender. Package XC, STD White ModelWhite RH Cover Front Fender. Package XC, STD White Model
-
71705007984 White RH Cover Front Fender. Package XDSDPS BlackWhite RH Cover Front Fender. Package XDSDPS Black
-
71705007984 White RH Cover Front Fender. Package XDSSTDWhite RH Cover Front Fender. Package XDSSTD
-
71705008477 Digital CAMO LH Cover Front Fender. Digital Camo & Manta GreenDigital CAMO LH Cover Front Fender. Digital Camo & Manta Green
-
71705008478 Digital CAMO RH Cover Front Fender. Digital Camo & Manta GreenDigital CAMO RH Cover Front Fender. Digital Camo & Manta Green
-
71705009676 Quarry Grey LH Cover Fender. Quarry Gray ModelQuarry Grey LH Cover Fender. Quarry Gray Model
-
71705009677 Quarry Grey RH Cover Fender. Quarry Gray ModelQuarry Grey RH Cover Fender. Quarry Gray Model
-
71705009678 Hyper Silver LH Cover Fender. Package XDSDPS SilverHyper Silver LH Cover Fender. Package XDSDPS Silver
-
71705009679 Hyper Silver RH Cover Fender. Package XDSDPS SilverHyper Silver RH Cover Fender. Package XDSDPS Silver
-
72705006562 Black LH Front Fender Trim. Package XXC WhiteBlack LH Front Fender Trim. Package XXC White
-
72705006563 Black RH Front Fender Trim. Package XXC WhiteBlack RH Front Fender Trim. Package XXC White
-
72705007981 White LH Front Fender Trim. Package XC, STD White ModelWhite LH Front Fender Trim. Package XC, STD White Model
-
72705007982 White RH Front Fender Trim. Package XC, STD White ModelWhite RH Front Fender Trim. Package XC, STD White Model
-
72705008611 Manta Green LH Front Fender Trim. Package XDSDPS Black CarbonManta Green LH Front Fender Trim. Package XDSDPS Black Carbon
-
72705008611 Manta Green LH Front Fender Trim. Digital Camo & Manta GreenManta Green LH Front Fender Trim. Digital Camo & Manta Green
-
72705008611 Manta Green LH Front Fender Trim. Package XDSDPS BlackManta Green LH Front Fender Trim. Package XDSDPS Black
-
72705008611 Manta Green LH Front Fender Trim. Package XDSSTDManta Green LH Front Fender Trim. Package XDSSTD
-
72705008612 Manta Green RH Front Fender Trim. Package XDSDPS Black CarbonManta Green RH Front Fender Trim. Package XDSDPS Black Carbon
-
72705008612 Manta Green RH Front Fender Trim. Digital Camo & Manta GreenManta Green RH Front Fender Trim. Digital Camo & Manta Green
-
72705008612 Manta Green RH Front Fender Trim. Package XDSDPS BlackManta Green RH Front Fender Trim. Package XDSDPS Black
-
72705008612 Manta Green RH Front Fender Trim. Package XDSSTDManta Green RH Front Fender Trim. Package XDSSTD
-
72705009670 Quarry Grey LH Fender Trim. Package DPS Quarry Gray ModelQuarry Grey LH Fender Trim. Package DPS Quarry Gray Model
-
72705009670 Quarry Grey LH Fender Trim. Package STD Quarry Gray ModelQuarry Grey LH Fender Trim. Package STD Quarry Gray Model
-
72705009671 Quarry Grey RH Fender Trim. Package DPS Quarry Gray ModelQuarry Grey RH Fender Trim. Package DPS Quarry Gray Model
-
72705009671 Quarry Grey RH Fender Trim. Package STD Quarry Gray ModelQuarry Grey RH Fender Trim. Package STD Quarry Gray Model
-
72705009672 Gulfstream Blue LH Fender Trim. Package XDSDPS SilverGulfstream Blue LH Fender Trim. Package XDSDPS Silver
-
72705009672 Gulfstream Blue LH Fender Trim. Package XMR SilverGulfstream Blue LH Fender Trim. Package XMR Silver
-
72705009672 Gulfstream Blue LH Fender Trim. Package XXC Quarry GrayGulfstream Blue LH Fender Trim. Package XXC Quarry Gray
-
72705009673 Gulfstream Blue RH Fender Trim. Package XDSDPS SilverGulfstream Blue RH Fender Trim. Package XDSDPS Silver
-
72705009673 Gulfstream Blue RH Fender Trim. Package XMR SilverGulfstream Blue RH Fender Trim. Package XMR Silver
-
72705009673 Gulfstream Blue RH Fender Trim. Package XXC Quarry GrayGulfstream Blue RH Fender Trim. Package XXC Quarry Gray
-
72705009674 Red LH Fender Trim. Package XMR WhiteRed LH Fender Trim. Package XMR White
-
72705009674 Red LH Fender Trim. Package XDSXRSRed LH Fender Trim. Package XDSXRS
-
72705009675 Red RH Fender Trim. Package XMR WhiteRed RH Fender Trim. Package XMR White
-
72705009675 Red RH Fender Trim. Package XDSXRSRed RH Fender Trim. Package XDSXRS
-
72705007338 Red LH Front Fender Trim. Red ModelRed LH Front Fender Trim. Red Model
-
72705007341 Red RH Front Fender Trim. Red ModelRed RH Front Fender Trim. Red Model
-
73705005983 LH Rear Radiator GrillLH Rear Radiator Grill
-
74705005984 RH Rear Radiator GrillRH Rear Radiator Grill
-
75705006583 Black LH Rear Facia Trim. Black ModelBlack LH Rear Facia Trim. Black Model
-
75705006583 Black LH Rear Facia Trim. Package XMR WhiteBlack LH Rear Facia Trim. Package XMR White
-
75705006583 Black LH Rear Facia Trim. Package XXC WhiteBlack LH Rear Facia Trim. Package XXC White
-
75705006584 Black RH Rear Facia Trim. Black ModelBlack RH Rear Facia Trim. Black Model
-
75705006584 Black RH Rear Facia Trim. Package XMR WhiteBlack RH Rear Facia Trim. Package XMR White
-
75705006584 Black RH Rear Facia Trim. Package XXC WhiteBlack RH Rear Facia Trim. Package XXC White
-
75705008542 Black Carbon Fiber LH Trim. Black Carbon ModelBlack Carbon Fiber LH Trim. Black Carbon Model
-
75705008543 Black Carbon Fiber RH Trim. Black Carbon ModelBlack Carbon Fiber RH Trim. Black Carbon Model
-
75705009731 Timeless Black LH Trim. Package XMR SilverTimeless Black LH Trim. Package XMR Silver
-
75705009732 Timeless Black RH Trim. Package XMR SilverTimeless Black RH Trim. Package XMR Silver
-
75705007370 White LH Rear Facia Trim. Package XC, STD White ModelWhite LH Rear Facia Trim. Package XC, STD White Model
-
75705007371 White RH Rear Facia Trim. Package XC, STD White ModelWhite RH Rear Facia Trim. Package XC, STD White Model
-
75705007372 Red LH Rear Facia Trim. Red ModelRed LH Rear Facia Trim. Red Model
-
75705007373 Red RH Rear Facia Trim. Red ModelRed RH Rear Facia Trim. Red Model
-
75705008504 Digital CAMO LH Rear Facia Trim. Digital Camo & Manta GreenDigital CAMO LH Rear Facia Trim. Digital Camo & Manta Green
-
75705008505 Digital CAMO RH Rear Facia Trim. Digital Camo & Manta GreenDigital CAMO RH Rear Facia Trim. Digital Camo & Manta Green
-
75705008952 Quarry Gray LH Trim. Quarry Gray ModelQuarry Gray LH Trim. Quarry Gray Model
-
75705008953 Quarry Gray RH Trim. Quarry Gray ModelQuarry Gray RH Trim. Quarry Gray Model
-
75705009733 Hyper Silver LH Trim. Package XDSDPS SilverHyper Silver LH Trim. Package XDSDPS Silver
-
75705009734 Hyper Silver RH Trim. Package XDSDPS SilverHyper Silver RH Trim. Package XDSDPS Silver
-
76705005992 LH Front Facia TrimLH Front Facia Trim
-
77705005993 RH Front Facia TrimRH Front Facia Trim
-
78705005994 LOGO SupportLOGO Support
-
80705006038 LH Bumper Skid Cap. Europe Model Black CarbonLH Bumper Skid Cap. Europe Model Black Carbon
-
80705006038 LH Bumper Skid Cap. Package DPSLH Bumper Skid Cap. Package DPS
-
80705006038 LH Bumper Skid Cap. Package STDLH Bumper Skid Cap. Package STD
-
80705006038 LH Bumper Skid Cap. Package XMRLH Bumper Skid Cap. Package XMR
-
80705006038 LH Bumper Skid Cap. Package XC, XXCLH Bumper Skid Cap. Package XC, XXC
-
80705006039 RH Bumper Skid Cap. Europe Model Black CarbonRH Bumper Skid Cap. Europe Model Black Carbon
-
80705006039 RH Bumper Skid Cap. Package DPSRH Bumper Skid Cap. Package DPS
-
80705006039 RH Bumper Skid Cap. Package STDRH Bumper Skid Cap. Package STD
-
80705006039 RH Bumper Skid Cap. Package XMRRH Bumper Skid Cap. Package XMR
-
80705006039 RH Bumper Skid Cap. Package XC, XXCRH Bumper Skid Cap. Package XC, XXC
-
81705006078 LH Front Facia SupportLH Front Facia Support
-
82705006079 RH Front Facia SupportRH Front Facia Support
-
83705006128 Bagage Central Rack. Engine 1000RBagage Central Rack. Engine 1000R
-
84705006132 Central Bagage Rack Cap. Engine 1000RCentral Bagage Rack Cap. Engine 1000R
-
85705006279 Bagage Rack Tube. Engine 1000RBagage Rack Tube. Engine 1000R
-
86705006623 ClampClamp
-
87705006635 Radiator Grill BracketRadiator Grill Bracket
-
88705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
89705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
90705006828 Reflector Support. Europe ModelReflector Support. Europe Model
-
91705006991 LH Lateral Middle PanelLH Lateral Middle Panel
-
92705006992 RH Lateral Middle PanelRH Lateral Middle Panel
-
93705007038 Lateral Skid PlateLateral Skid Plate
-
95705007044 Rear Support Facia ClipRear Support Facia Clip
-
96705007045 LH Rear Facia SupportLH Rear Facia Support
-
97705007046 RH Rear Facia SupportRH Rear Facia Support
-
98705007047 Tube ConnectorTube Connector
-
99705007060 Black Removable Hood. Package DPSBlack Removable Hood. Package DPS
-
99705007060 Black Removable Hood. Package STDBlack Removable Hood. Package STD
-
99705007060 Black Removable Hood. Package XMR WhiteBlack Removable Hood. Package XMR White
-
99705007060 Black Removable Hood. Package XC, XXCBlack Removable Hood. Package XC, XXC
-
99705007166 Black Removable Hood. Digital Camo & Manta GreenBlack Removable Hood. Digital Camo & Manta Green
-
99705007129 Black Carbon Fiber Removable Hood. Black Carbon ModelBlack Carbon Fiber Removable Hood. Black Carbon Model
-
99705009710 Timeless Black Removable Hood. Silver ModelTimeless Black Removable Hood. Silver Model
-
99705008186 Bright White Removable Hood. Package XDSDPS BlackBright White Removable Hood. Package XDSDPS Black
-
99705008186 Bright White Removable Hood. Package XDSSTDBright White Removable Hood. Package XDSSTD
-
100705007171 CupCup
-
101705007299 Body TubeBody Tube
-
102705007362 White LH Rear Lateral Panel. Package XC, STD White ModelWhite LH Rear Lateral Panel. Package XC, STD White Model
-
102705007362 White LH Rear Lateral Panel. Package XDSDPS BlackWhite LH Rear Lateral Panel. Package XDSDPS Black
-
102705007362 White LH Rear Lateral Panel. Package XDSSTDWhite LH Rear Lateral Panel. Package XDSSTD
-
102705007362 White LH Rear Lateral Panel. Package XMR WhiteWhite LH Rear Lateral Panel. Package XMR White
-
102705007362 White LH Rear Lateral Panel. Package XXC WhiteWhite LH Rear Lateral Panel. Package XXC White
-
102705007363 White RH Rear Lateral Panel. Package XC, STD White ModelWhite RH Rear Lateral Panel. Package XC, STD White Model
-
102705007363 White RH Rear Lateral Panel. Package XDSDPS BlackWhite RH Rear Lateral Panel. Package XDSDPS Black
-
102705007363 White RH Rear Lateral Panel. Package XDSSTDWhite RH Rear Lateral Panel. Package XDSSTD
-
102705007363 White RH Rear Lateral Panel. Package XMR WhiteWhite RH Rear Lateral Panel. Package XMR White
-
102705007363 White RH Rear Lateral Panel. Package XXC WhiteWhite RH Rear Lateral Panel. Package XXC White
-
102705007364 Red LH Rear Lateral Panel. Red ModelRed LH Rear Lateral Panel. Red Model
-
102705008490 Digital CAMO LH Rear Lateral Panel. Digital Camo & Manta GreenDigital CAMO LH Rear Lateral Panel. Digital Camo & Manta Green
-
102705009721 Hyper Silver LH Rear Lateral Panel. Silver ModelHyper Silver LH Rear Lateral Panel. Silver Model
-
102705008492 Timeless Black LH Rear Lateral Panel. Black Carbon ModelTimeless Black LH Rear Lateral Panel. Black Carbon Model
-
102705009851 Black LH Rear Lateral Panel. Package DPS Quarry Gray ModelBlack LH Rear Lateral Panel. Package DPS Quarry Gray Model
-
102705009852 Black RH Rear Lateral Panel. Package DPS Quarry Gray ModelBlack RH Rear Lateral Panel. Package DPS Quarry Gray Model
-
102705010322 Quarry Gray LH Rear Lateral Panel. Package STD Quarry Gray ModelQuarry Gray LH Rear Lateral Panel. Package STD Quarry Gray Model
-
102705010322 Quarry Gray LH Rear Lateral Panel. Package XXC Quarry GrayQuarry Gray LH Rear Lateral Panel. Package XXC Quarry Gray
-
102705010323 Quarry Gray RH Rear Lateral Panel. Package STD Quarry Gray ModelQuarry Gray RH Rear Lateral Panel. Package STD Quarry Gray Model
-
102705010323 Quarry Gray RH Rear Lateral Panel. Package XXC Quarry GrayQuarry Gray RH Rear Lateral Panel. Package XXC Quarry Gray
-
102705010396 Gulfstream Blue LH Side Panel. Black ModelGulfstream Blue LH Side Panel. Black Model
-
103705007365 Red RH Rear Lateral Panel. Red ModelRed RH Rear Lateral Panel. Red Model
-
103705008491 Digital CAMO RH Rear Lateral Panel. Digital Camo & Manta GreenDigital CAMO RH Rear Lateral Panel. Digital Camo & Manta Green
-
103705008493 Tmeless Black Met RH Rear Lateral Panel. Black Carbon ModelTmeless Black Met RH Rear Lateral Panel. Black Carbon Model
-
103705009722 Hyper Silver RH Rear Lateral Panel. Silver ModelHyper Silver RH Rear Lateral Panel. Silver Model
-
104705007497 LH Bumper Grill. Package DPS Except Europe ModelLH Bumper Grill. Package DPS Except Europe Model
-
104705007497 LH Bumper Grill. Package STD Except Europe ModelLH Bumper Grill. Package STD Except Europe Model
-
104705007497 LH Bumper Grill. Package XMRLH Bumper Grill. Package XMR
-
104705007497 LH Bumper Grill. Package XXC Except Europe ModelLH Bumper Grill. Package XXC Except Europe Model
-
104705007497 LH Bumper Grill. Package XCLH Bumper Grill. Package XC
-
104705007497 LH Bumper Grill. Package XDSSTDLH Bumper Grill. Package XDSSTD
-
105705007498 RH Bumper Grill. Package DPS Except Europe ModelRH Bumper Grill. Package DPS Except Europe Model
-
105705007498 RH Bumper Grill. Package STD Except Europe ModelRH Bumper Grill. Package STD Except Europe Model
-
105705007498 RH Bumper Grill. Package XMRRH Bumper Grill. Package XMR
-
105705007498 RH Bumper Grill. Package XXC Except Europe ModelRH Bumper Grill. Package XXC Except Europe Model
-
105705007498 RH Bumper Grill. Package XCRH Bumper Grill. Package XC
-
105705007498 RH Bumper Grill. Package XDSSTDRH Bumper Grill. Package XDSSTD
-
106705007499 LH Bumper Grill. Europe ModelLH Bumper Grill. Europe Model
-
107705007500 RH Bumper Grill. Europe ModelRH Bumper Grill. Europe Model
-
108705007637 LH Rear Deflector. Red ModelLH Rear Deflector. Red Model
-
108705007637 LH Rear Deflector. Silver ModelLH Rear Deflector. Silver Model
-
108705007637 LH Rear Deflector. Black Carbon ModelLH Rear Deflector. Black Carbon Model
-
108705007637 LH Rear Deflector. Digital Camo & Manta GreenLH Rear Deflector. Digital Camo & Manta Green
-
109705007638 RH Rear Deflector. Red ModelRH Rear Deflector. Red Model
-
109705007638 RH Rear Deflector. Silver ModelRH Rear Deflector. Silver Model
-
109705007638 RH Rear Deflector. Black Carbon ModelRH Rear Deflector. Black Carbon Model
-
109705007638 RH Rear Deflector. Digital Camo & Manta GreenRH Rear Deflector. Digital Camo & Manta Green
-
110705007917 Support PlateSupport Plate
-
111705007918 LH Rear Fender SupportLH Rear Fender Support
-
112705007919 RH Rear Fender SupportRH Rear Fender Support
-
113705007960 Fixe Center Hood. Package XMRFixe Center Hood. Package XMR
-
114705008958 Skid Plate. Package XDS - XDS-DPSSkid Plate. Package XDS - XDS-DPS
-
114705008958 Skid Plate. Package XDSXRSSkid Plate. Package XDSXRS
-
114705008958 Skid Plate. Package XDSSTDSkid Plate. Package XDSSTD
-
115705008988 LH Front Deflector. Red ModelLH Front Deflector. Red Model
-
115705008988 LH Front Deflector. Silver ModelLH Front Deflector. Silver Model
-
115705008988 LH Front Deflector. Black Carbon ModelLH Front Deflector. Black Carbon Model
-
115705008988 LH Front Deflector. Digital Camo & Manta GreenLH Front Deflector. Digital Camo & Manta Green
-
116705008989 RH Front Deflector. Red ModelRH Front Deflector. Red Model
-
116705008989 RH Front Deflector. Silver ModelRH Front Deflector. Silver Model
-
116705008989 RH Front Deflector. Black Carbon ModelRH Front Deflector. Black Carbon Model
-
116705008989 RH Front Deflector. Digital Camo & Manta GreenRH Front Deflector. Digital Camo & Manta Green
-
117705009046 LH Intercooler Cover. Engine 1000TLH Intercooler Cover. Engine 1000T
-
118705009047 RH Intercooler Cover. Engine 1000TRH Intercooler Cover. Engine 1000T
-
119705009143 Deflector. Engine 1000T Except Europe ModelDeflector. Engine 1000T Except Europe Model
-
120705009260 Upper GrillUpper Grill
-
121705009261 Lower GrillLower Grill
-
122705009262 Air Duct Support. Engine 1000TAir Duct Support. Engine 1000T
-
123705009343 Rear Support. Engine 1000TRear Support. Engine 1000T
-
124705007828 Deflector. Package XC, XXC, XMRDeflector. Package XC, XXC, XMR
-
124705007828 Deflector. Package STD, DPSDeflector. Package STD, DPS
-
124705009408 Support. Europe ModelSupport. Europe Model
-
125705009444 Skid Plate. Engine 1000TSkid Plate. Engine 1000T
-
126705009445 Inner Fender. Engine 1000TInner Fender. Engine 1000T
-
126705009548 LH Inner Fender. Engine 1000RLH Inner Fender. Engine 1000R
-
128705009549 RH Inner FenderRH Inner Fender
-
129705204561 Air Scoop Kit. Engine 1000TAir Scoop Kit. Engine 1000T
-
130250200086 Flat WasherFlat Washer
-
131705007348 White LH Fixe Hood. Package XC, STD White ModelWhite LH Fixe Hood. Package XC, STD White Model
-
131705007348 White LH Fixe Hood. Package XMR WhiteWhite LH Fixe Hood. Package XMR White
-
131705007348 White LH Fixe Hood. Package XXC WhiteWhite LH Fixe Hood. Package XXC White
-
131705007349 White RH Fixe Hood. Package XC, STD White ModelWhite RH Fixe Hood. Package XC, STD White Model
-
131705007349 White RH Fixe Hood. Package XMR WhiteWhite RH Fixe Hood. Package XMR White
-
131705007349 White RH Fixe Hood. Package XXC WhiteWhite RH Fixe Hood. Package XXC White
-
131705007350 Red LH Fixe Hood. Red ModelRed LH Fixe Hood. Red Model
-
131705007351 Red RH Fixe Hood. Red ModelRed RH Fixe Hood. Red Model
-
131705008481 Digital CAMO LH Fixe Hood. Digital Camo & Manta GreenDigital CAMO LH Fixe Hood. Digital Camo & Manta Green
-
131705008482 Digital CAMO RH Fixe Hood. Digital Camo & Manta GreenDigital CAMO RH Fixe Hood. Digital Camo & Manta Green
-
131705008538 Timeless Black LH Fixe Hood. Black Carbon ModelTimeless Black LH Fixe Hood. Black Carbon Model
-
131705008539 Timeless Black RH Fixe Hood. Black Carbon ModelTimeless Black RH Fixe Hood. Black Carbon Model
-
131705008945 Deep Black LH Fixe Hood. Package XDSDPS BlackDeep Black LH Fixe Hood. Package XDSDPS Black
-
131705008946 Deep Black RH Fixe Hood. Package XDSDPS BlackDeep Black RH Fixe Hood. Package XDSDPS Black
-
131705008947 Quarry Gray LH Fixe Hood. Quarry Gray ModelQuarry Gray LH Fixe Hood. Quarry Gray Model
-
131705008948 Quarry Gray RH Fixe Hood. Quarry Gray ModelQuarry Gray RH Fixe Hood. Quarry Gray Model
-
131705009708 Hyper Silver LH Fixed Hood. Silver ModelHyper Silver LH Fixed Hood. Silver Model
-
131705009709 Hyper Silver RH Fixed Hood. Silver ModelHyper Silver RH Fixed Hood. Silver Model
-
132705007352 White LH Bumper Cap. Package XC, STD White ModelWhite LH Bumper Cap. Package XC, STD White Model
-
132705007352 White LH Bumper Cap. Package XDSSTDWhite LH Bumper Cap. Package XDSSTD
-
132705007353 White RH Bumper Cap. Package XC, STD White ModelWhite RH Bumper Cap. Package XC, STD White Model
-
132705007353 White RH Bumper Cap. Package XDSSTDWhite RH Bumper Cap. Package XDSSTD
-
132705007354 Red LH Bumper Cap. Package DPS Quarry Gray ModelRed LH Bumper Cap. Package DPS Quarry Gray Model
-
132705007354 Red LH Bumper Cap. Package STD Quarry Gray ModelRed LH Bumper Cap. Package STD Quarry Gray Model
-
132705007354 Red LH Bumper Cap. Package XMR WhiteRed LH Bumper Cap. Package XMR White
-
132705007354 Red LH Bumper Cap. Package XXC WhiteRed LH Bumper Cap. Package XXC White
-
132705007355 Red RH Bumper Cap. Package DPS Quarry Gray ModelRed RH Bumper Cap. Package DPS Quarry Gray Model
-
132705007355 Red RH Bumper Cap. Package STD Quarry Gray ModelRed RH Bumper Cap. Package STD Quarry Gray Model
-
132705007355 Red RH Bumper Cap. Package XMR WhiteRed RH Bumper Cap. Package XMR White
-
132705007355 Red RH Bumper Cap. Package XXC WhiteRed RH Bumper Cap. Package XXC White
-
132705007356 Red LH Bumper Cap. Red ModelRed LH Bumper Cap. Red Model
-
132705007357 Red RH Bumper Cap. Red ModelRed RH Bumper Cap. Red Model
-
132705008613 Manta Green LH Bumper Cap. Europe Model Black CarbonManta Green LH Bumper Cap. Europe Model Black Carbon
-
132705008613 Manta Green LH Bumper Cap. Digital Camo & Manta GreenManta Green LH Bumper Cap. Digital Camo & Manta Green
-
132705008614 Manta Green RH Bumper Cap. Europe Model Black CarbonManta Green RH Bumper Cap. Europe Model Black Carbon
-
132705008614 Manta Green RH Bumper Cap. Digital Camo & Manta GreenManta Green RH Bumper Cap. Digital Camo & Manta Green
-
132705009711 Gulfstream Blue LH Bumper Cap. Package XMR SilverGulfstream Blue LH Bumper Cap. Package XMR Silver
-
132705009711 Gulfstream Blue LH Bumper Cap. Package XXC Quarry GrayGulfstream Blue LH Bumper Cap. Package XXC Quarry Gray
-
132705009712 Gulfstream Blue RH Bumper Cap. Package XMR SilverGulfstream Blue RH Bumper Cap. Package XMR Silver
-
132705009712 Gulfstream Blue RH Bumper Cap. Package XXC Quarry GrayGulfstream Blue RH Bumper Cap. Package XXC Quarry Gray
-
133705007358 White LH Front Lateral Pannel. Package XC, STD White ModelWhite LH Front Lateral Pannel. Package XC, STD White Model
-
133705007358 White LH Front Lateral Pannel. Package XDSDPS BlackWhite LH Front Lateral Pannel. Package XDSDPS Black
-
133705007358 White LH Front Lateral Pannel. Package XDSSTDWhite LH Front Lateral Pannel. Package XDSSTD
-
133705007358 White LH Front Lateral Pannel. Package XMR WhiteWhite LH Front Lateral Pannel. Package XMR White
-
133705007358 White LH Front Lateral Pannel. Package XXC WhiteWhite LH Front Lateral Pannel. Package XXC White
-
133705007359 White RH Front Lateral Pannel. Package XC, STD White ModelWhite RH Front Lateral Pannel. Package XC, STD White Model
-
133705007359 White RH Front Lateral Pannel. Package XDSDPS BlackWhite RH Front Lateral Pannel. Package XDSDPS Black
-
133705007359 White RH Front Lateral Pannel. Package XDSSTDWhite RH Front Lateral Pannel. Package XDSSTD
-
133705007359 White RH Front Lateral Pannel. Package XMR WhiteWhite RH Front Lateral Pannel. Package XMR White
-
133705007359 White RH Front Lateral Pannel. Package XXC WhiteWhite RH Front Lateral Pannel. Package XXC White
-
133705007360 Red LH Front Lateral Pannel. Red ModelRed LH Front Lateral Pannel. Red Model
-
133705007361 Red RH Front Lateral Pannel. Red ModelRed RH Front Lateral Pannel. Red Model
-
133705007853 Deep Black LH Front Lateral Panel. Package DPS Quarry Gray ModelDeep Black LH Front Lateral Panel. Package DPS Quarry Gray Model
-
133705007854 Deep Black RH Front Lateral Panel. Package DPS Quarry Gray ModelDeep Black RH Front Lateral Panel. Package DPS Quarry Gray Model
-
133705008239 Quarry Gray LH Front Lateral Pannel. Package STD Quarry Gray ModelQuarry Gray LH Front Lateral Pannel. Package STD Quarry Gray Model
-
133705008239 Quarry Gray LH Front Lateral Pannel. Package XXC Quarry GrayQuarry Gray LH Front Lateral Pannel. Package XXC Quarry Gray
-
133705008240 Quarry Gray RH Front Lateral Pannel. Package STD Quarry Gray ModelQuarry Gray RH Front Lateral Pannel. Package STD Quarry Gray Model
-
133705008240 Quarry Gray RH Front Lateral Pannel. Package XXC Quarry GrayQuarry Gray RH Front Lateral Pannel. Package XXC Quarry Gray
-
133705008486 Digital CAMO LH Front Lateral Pannel. Digital Camo & Manta GreenDigital CAMO LH Front Lateral Pannel. Digital Camo & Manta Green
-
133705008487 Digital CAMO RH Front Lateral Pannel. Digital Camo & Manta GreenDigital CAMO RH Front Lateral Pannel. Digital Camo & Manta Green
-
133705008488 Timeless Black LH Front Lateral Panel. Black Carbon ModelTimeless Black LH Front Lateral Panel. Black Carbon Model
-
133705008489 Timeless Black RH Front Lateral Panel. Black Carbon ModelTimeless Black RH Front Lateral Panel. Black Carbon Model
-
133705009717 Hyper Silver LH Front Lateral Panel. Silver ModelHyper Silver LH Front Lateral Panel. Silver Model
-
133705009718 Hyper Silver RH Front Lateral Panel. Silver ModelHyper Silver RH Front Lateral Panel. Silver Model
-
134705007827 Inner FenderInner Fender
-
135705008496 Digital CAMO LH Rear Fender. Digital Camo & Manta GreenDigital CAMO LH Rear Fender. Digital Camo & Manta Green
-
135705008497 Digital CAMO RH Rear Fender. Digital Camo & Manta GreenDigital CAMO RH Rear Fender. Digital Camo & Manta Green
-
135705008949 Quarry Gray LH Rear Fender. Quarry Gray ModelQuarry Gray LH Rear Fender. Quarry Gray Model
-
135705008951 Quarry Gray RH Rear Fender. Quarry Gray ModelQuarry Gray RH Rear Fender. Quarry Gray Model
-
135705009035 Black LH Rear Fender. Black ModelBlack LH Rear Fender. Black Model
-
135705009035 Black LH Rear Fender. Package XMR WhiteBlack LH Rear Fender. Package XMR White
-
135705009035 Black LH Rear Fender. Package XXC WhiteBlack LH Rear Fender. Package XXC White
-
135705009036 Black RH Rear Fender. Black ModelBlack RH Rear Fender. Black Model
-
135705009036 Black RH Rear Fender. Package XMR WhiteBlack RH Rear Fender. Package XMR White
-
135705009036 Black RH Rear Fender. Package XXC WhiteBlack RH Rear Fender. Package XXC White
-
135705008540 Black Carbon Fiber LH Rear Fender. Black Carbon ModelBlack Carbon Fiber LH Rear Fender. Black Carbon Model
-
135705008541 Black Carbon Fiber RH Rear Fender. Black Carbon ModelBlack Carbon Fiber RH Rear Fender. Black Carbon Model
-
135705009727 Timeless Black LH Rear Fender. Package XMR SilverTimeless Black LH Rear Fender. Package XMR Silver
-
135705009728 Timeless Black RH Rear Fender. Package XMR SilverTimeless Black RH Rear Fender. Package XMR Silver
-
135705009037 White LH Rear Fender. Package XC, STD White ModelWhite LH Rear Fender. Package XC, STD White Model
-
135705009038 White RH Rear Fender. Package XC, STD White ModelWhite RH Rear Fender. Package XC, STD White Model
-
135705009041 Red LH Rear Fender. Red ModelRed LH Rear Fender. Red Model
-
135705009042 Red RH Rear Fender. Red ModelRed RH Rear Fender. Red Model
-
135705009729 Hyper Silver LH Rear Fender. Package XDSDPS SilverHyper Silver LH Rear Fender. Package XDSDPS Silver
-
135705009730 Hyper Silver RH Rear Fender. Package XDSDPS SilverHyper Silver RH Rear Fender. Package XDSDPS Silver
-
136715002367 Rear Rack KITRear Rack KIT
-
137250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
138236282054 Hex. Screw M8 X 20. Engine 1000T Except Europe ModelHex. Screw M8 X 20. Engine 1000T Except Europe Model
-
139250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
140250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
141210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
142250100031 Push NutPush Nut
-
143210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
144232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
145233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
146233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
147233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
148234062670 Flat Washer, StainlessFlat Washer, Stainless
-
149250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
150250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
151250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
152250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
153250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
154250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
155250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
156250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
157250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
158250200025 Washer M5Washer M5
-
159293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
160293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
161293450274 InsertInsert
-
162517302785 ClipClip
-
163705002409 Amber ReflectorAmber Reflector
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase - 1000R EFI
- 01- Crankcase - Turbo
- 01- Crankshaft, Piston and Cylinder - 1000R EFI
- 01- Crankshaft, Piston and Cylinder - Turbo
- 01- Cylinder Head, Front - 1000R EFI
- 01- Cylinder Head, Front - Turbo
- 01- Cylinder Head, Rear - 1000R EFI
- 01- Cylinder Head, Rear - Turbo
- 01- Engine
- 01- Engine - XMR
- 01- Engine and Engine Support - MAX
- 01- Engine Cooling - 1000R EFI
- 01- Engine Cooling - Turbo
- 01- Engine Lubrication - 1000R EFI
- 01- Engine Lubrication - Turbo
- 01- Exhaust System
- 01- Exhaust System - Turbo
- 01- Gear Box and Components - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box and Components - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Assy - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Assy - GBPS - Maverick-Maverick MAX, XMR
- 01- Gear Box Output Shaft - GBPS - Maverick Turbo-Maverick MAX Turbo
- 01- Gear Box Output Shaft - GBPS - Maverick-Maverick MAX, XMR
- 01- Turbocharger
- 02- Air Intake
- 02- Air Intake - Turbo
- 02- Air Intake Manifold and Throttle Body - 1000R EFI
- 02- Air Intake Manifold and Throttle Body - Turbo
- 02- Fuel System
- 03- Magneto and Electric Starter - 1000R EFI
- 03- Magneto and Electric Starter - Turbo
- 05- Transmission - 1000R EFI
- 05- Transmission - Turbo
- 05- Transmission, Driven Pulley - Turbo
- 06- Brakes
- 07- Drive System, Front
- 07- Front Suspension
- 07- Steering
- 08- Drive Shaft - 1000R EFI
- 08- Drive Shaft - Turbo
- 08- Rear Drive System
- 08- Rear Suspension
- • 09- Body and Accessories
- 09- Body and Accessories - MAX
- 09- Cab Interior
- 09- Cab Interior - MAX
- 09- Decals
- 09- Decals - MAX XDS-XRS
- 09- Decals - MAX-DPS
- 09- Decals - XDS-XRS
- 09- Frame - MAX, Except XDS Package
- 09- Frame - XDS Package
- 09- Frame Max- XDS Package
- 09- Frame, Except XDS Package
- 09- Mirrors and Tools
- 09- Seat
- 09- Seat - MAX
- 10- Electrical Harness Assy - Except MAX
- 10- Electrical Harness Assy - MAX
- 10- Electrical System - Europe Except XDS-XRS
- 10- Electrical System - Except XDS-XRS
- 10- Electrical System - XDS-XRS
- 10- Engine Harness and Electronic Module - Maverick Turbo-Maverick MAX Turbo
- 10- Engine Harness and Electronic Module Maverick - 1000R
- 10- Engine Harness and Electronic Module Maverick MAX - 1000R
