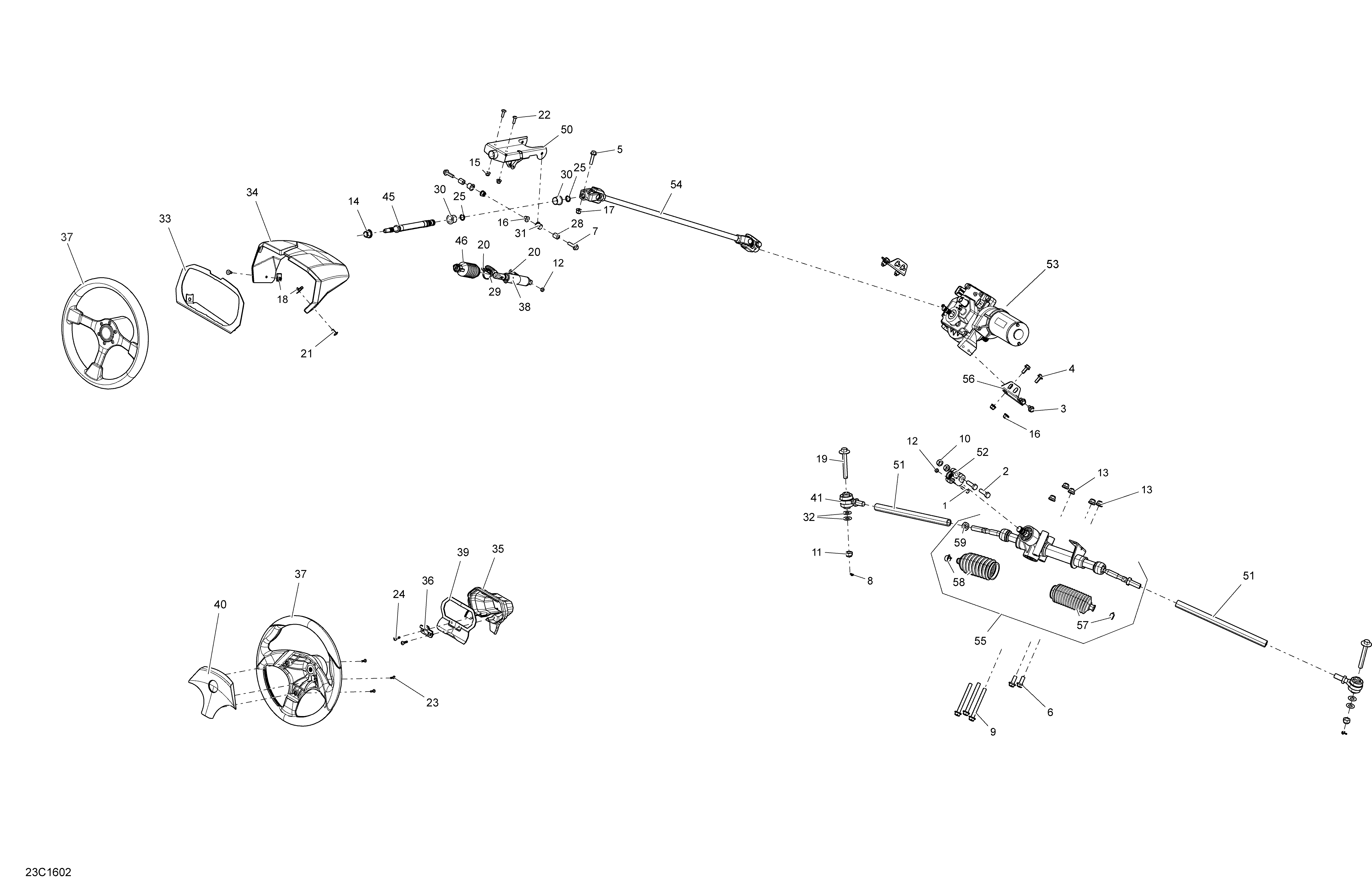

07- Steering для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207103586 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
3207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
4207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
5207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
6207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
7207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
8211400017 Cotter PinCotter Pin
-
9230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
10232500416 Elastic Stop Nut M10. Model With DPSElastic Stop Nut M10. Model With DPS
-
11232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
12232561414 Elastic Stop Nut M6. Model With DPSElastic Stop Nut M6. Model With DPS
-
13233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
14233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
18250000048 Panel Nut M6 X 1.0. Except Package STD - DPS - XCPanel Nut M6 X 1.0. Except Package STD - DPS - XC
-
19250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
20250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
21250000721 Torx Screw. Except Package STD - DPS - XCTorx Screw. Except Package STD - DPS - XC
-
22250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
23250000723 Phillips Screw K40 X 16. Package STD - DPS - XCPhillips Screw K40 X 16. Package STD - DPS - XC
-
24250000760 Torx Screw Truss Head PT.K50 X 20. Package STD - DPS - XCTorx Screw Truss Head PT.K50 X 20. Package STD - DPS - XC
-
25293300144 O-RingO-Ring
-
28293900106 BushingBushing
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31705600799 BushingBushing
-
32250200086 Flat WasherFlat Washer
-
33707900013 Cluster Support. Except Package STD - DPS - XCCluster Support. Except Package STD - DPS - XC
-
34707900124 Upper Cluster Cover. Except Package STD - DPS - XCUpper Cluster Cover. Except Package STD - DPS - XC
-
35709400514 Speedometer Cover. Package STD - DPS - XCSpeedometer Cover. Package STD - DPS - XC
-
36709400573 Latch Indicator Cover. Package STD - DPS - XCLatch Indicator Cover. Package STD - DPS - XC
-
37709400650 Steering Wheel. Package STD - DPS - XC - XDSSTDSteering Wheel. Package STD - DPS - XC - XDSSTD
-
37715001134 Steering Wheel Kit. Except Package STD - DPS - XC - XDSSTDSteering Wheel Kit. Except Package STD - DPS - XC - XDSSTD
-
38709400656 Adjustment CylinderAdjustment Cylinder
-
39709400760 Cluster Support. Package STD - DPS - XCCluster Support. Package STD - DPS - XC
-
40709400780 Steering Center. Package STD - DPS - XC - XDSSTDSteering Center. Package STD - DPS - XC - XDSSTD
-
41709401125 Ball JointBall Joint
-
45709401167 Steering ShaftSteering Shaft
-
46709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
50709401391 Painted Steering Wheel SupportPainted Steering Wheel Support
-
51709401272 Tie Rod. Package XC - XXCTie Rod. Package XC - XXC
-
51709401427 Tie Rod. Except Package XC - XXCTie Rod. Except Package XC - XXC
-
52709401494 Machined Coupling. Model With DPSMachined Coupling. Model With DPS
-
53709401606 Power Steering Ass'y. Model With DPSPower Steering Ass'y. Model With DPS
-
54709401388 Steering Shaft Ass'y. Model Without DPSSteering Shaft Ass'y. Model Without DPS
-
54709401607 Steering Shaft Ass'y. Model With DPSSteering Shaft Ass'y. Model With DPS
-
55709401325 Rack And Pinion Steering. Model Without DPSRack And Pinion Steering. Model Without DPS
-
55709401610 Rack And Pinion Steering. Package DPS - XMR -XC -XXCRack And Pinion Steering. Package DPS - XMR -XC -XXC
-
55709401611 Rack And Pinion Steering. Package XDSDPSRack And Pinion Steering. Package XDSDPS
-
56709401612 SUPPORT. Model With DPSSUPPORT. Model With DPS
-
57715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
58715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
59715900238 Steering Rode NutSteering Rode Nut
