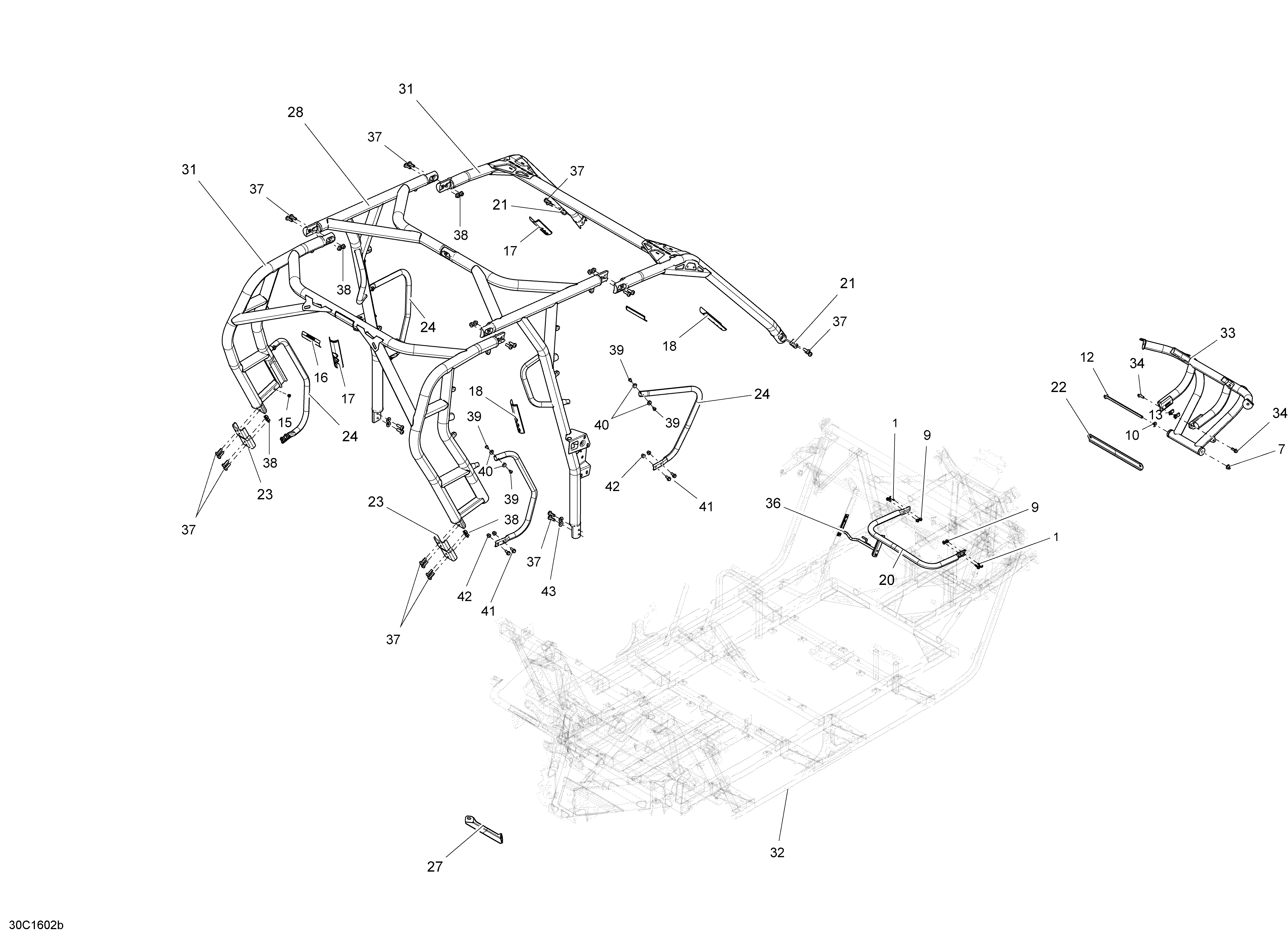

09- Frame - MAX, Except XDS Package для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
12250000597 Hex. Flange ScrewHex. Flange Screw
-
13250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
15293450274 InsertInsert
-
16704903492 Warning LabelWarning Label
-
17704903679 Warning LabelWarning Label
-
18704903680 Warning LabelWarning Label
-
20705203332 Black HandleBlack Handle
-
21705203415 Binding BlockBinding Block
-
22705203454 Front Suspension LinkFront Suspension Link
-
24705204069 Red RH Front Side Protector Tube. Red ModelRed RH Front Side Protector Tube. Red Model
-
24705204068 Red LH Front Side Protector Tube. Red ModelRed LH Front Side Protector Tube. Red Model
-
24705204064 Red LH Rear Side Protector Tube. Red ModelRed LH Rear Side Protector Tube. Red Model
-
24705204065 Red RH Rear Side Protector Tube. Red ModelRed RH Rear Side Protector Tube. Red Model
-
24705203643 Black LH Front Side Protector Tube. Black ModelBlack LH Front Side Protector Tube. Black Model
-
24705203649 Black LH Rear Side Protector Tube. Black ModelBlack LH Rear Side Protector Tube. Black Model
-
24705203652 Black RH Rear Side Protector Tube. Black ModelBlack RH Rear Side Protector Tube. Black Model
-
27705203695 ReinforcementReinforcement
-
28715003424 Black Center Safety Cage Kit. Black ModelBlack Center Safety Cage Kit. Black Model
-
28715003429 Red Center Safety Cage Kit. Red ModelRed Center Safety Cage Kit. Red Model
-
31715003420 Black Cage Kit, front and Rear Section. Black ModelBlack Cage Kit, front and Rear Section. Black Model
-
31715003427 Red Cage Kit. Red ModelRed Cage Kit. Red Model
-
32705204792 FrameFrame
-
33705203685 Black Front BumperBlack Front Bumper
-
34207382544 Hex. Flange ScrewHex. Flange Screw
-
36705203717 Reinforcement PanelReinforcement Panel
-
37250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
38233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
39250000789 Torx Truss M6X14Torx Truss M6X14
-
40705202223 Offset WasherOffset Washer
-
41207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
42233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
43250200154 WasherWasher
