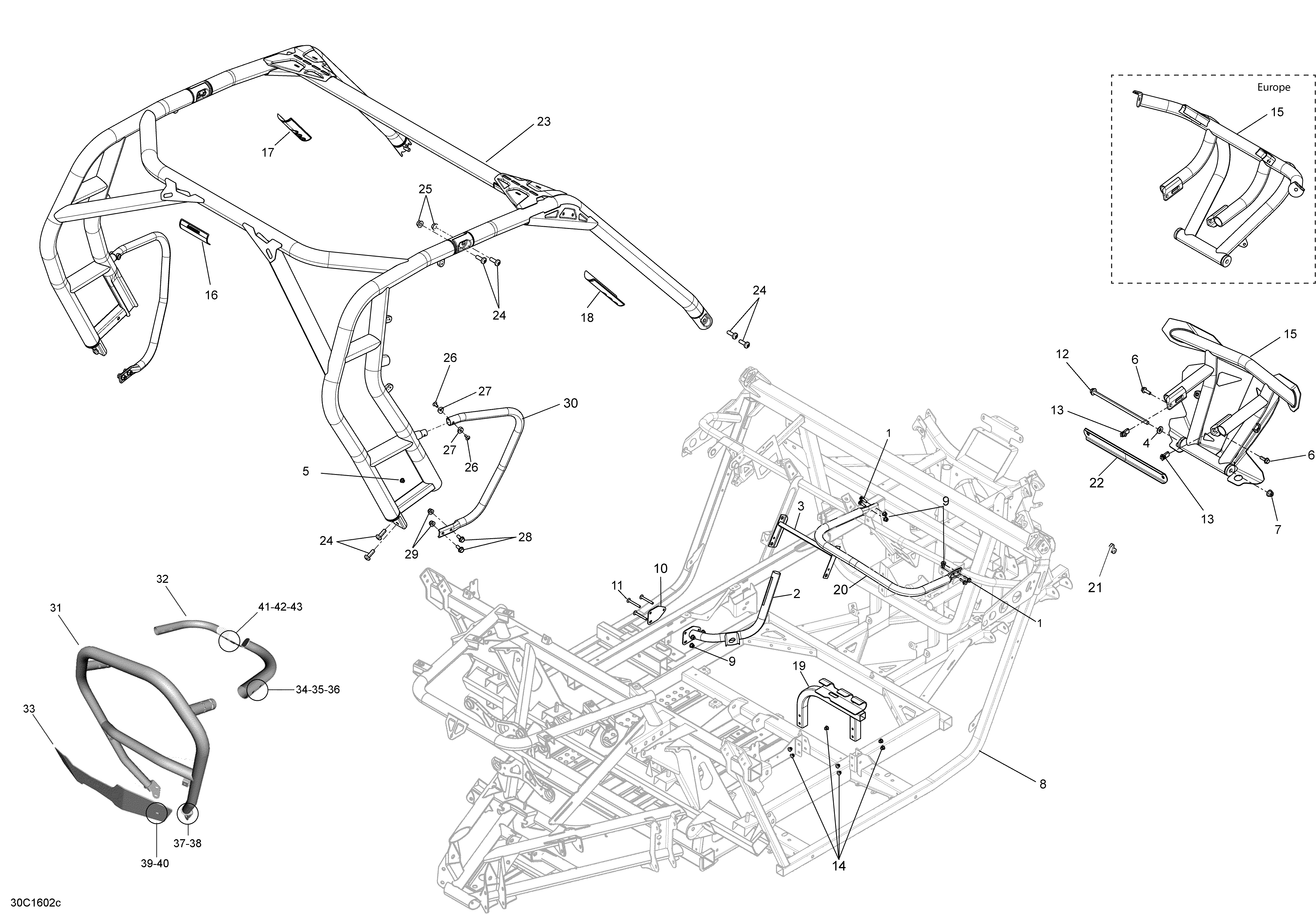

09- Frame - XDS Package для BRP Maverick - Maverick MAX - 2016
-
№АртикулНазвание
-
1207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2705204253 Black Console Handle. Engine 1000TBlack Console Handle. Engine 1000T
-
2705204399 Black Console Handle. Engine 1000RBlack Console Handle. Engine 1000R
-
3705203330 Reinforcement Panel. Manta Green ModelReinforcement Panel. Manta Green Model
-
4234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
5293450274 InsertInsert
-
6207382544 Hex. Flange ScrewHex. Flange Screw
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8715003092 Black FrameBlack Frame
-
9233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10705204606 Steel PlateSteel Plate
-
11250000317 Torx Screw M6 X 50Torx Screw M6 X 50
-
12250000597 Hex. Flange ScrewHex. Flange Screw
-
13250100118 Panel Nut M8 X 1.25Panel Nut M8 X 1.25
-
14293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
15705203685 Black Front Bumper. Europe ModelBlack Front Bumper. Europe Model
-
15705203685 Black Front Bumper. Package XDSSTDBlack Front Bumper. Package XDSSTD
-
15705204266 Front Bumper Ass'y. Package XDSDPSFront Bumper Ass'y. Package XDSDPS
-
15705204266 Front Bumper Ass'y. Package XDSXRSFront Bumper Ass'y. Package XDSXRS
-
16704903492 Warning LabelWarning Label
-
17704903679 Warning LabelWarning Label
-
18704903680 Warning LabelWarning Label
-
20705203332 Black HandleBlack Handle
-
21705203415 Binding BlockBinding Block
-
22705203454 Front Suspension LinkFront Suspension Link
-
23715003420 Black Cage Kit, front and Rear Section. Black Cage ModelBlack Cage Kit, front and Rear Section. Black Cage Model
-
23715003426 Manta Green Cage Kit. Manta Green Cage ModelManta Green Cage Kit. Manta Green Cage Model
-
23715003427 Red Cage Kit. Red Cage ModelRed Cage Kit. Red Cage Model
-
23715003423 Blue Cage Kit, Front And Rear Section. Blue Cage ModelBlue Cage Kit, Front And Rear Section. Blue Cage Model
-
24250000848 Screw Pan M10 X 30Screw Pan M10 X 30
-
25233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
26250000789 Torx Truss M6X14Torx Truss M6X14
-
27705202223 Offset WasherOffset Washer
-
28207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
29233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30705203640 Black RH Side Protector Tube. Black Cage ModelBlack RH Side Protector Tube. Black Cage Model
-
30705204408 Green RH Side Protector Tube. Manta Green Cage ModelGreen RH Side Protector Tube. Manta Green Cage Model
-
30705204410 Red RH Front Side Protector Tube. Red Cage ModelRed RH Front Side Protector Tube. Red Cage Model
-
30705204817 Blue RH Side Protector Tube. Blue Cage ModelBlue RH Side Protector Tube. Blue Cage Model
-
30705203637 Black LH Side Protector Tube. Black Cage ModelBlack LH Side Protector Tube. Black Cage Model
-
30705204407 Green LH Side Protector Tube. Manta Green Cage ModelGreen LH Side Protector Tube. Manta Green Cage Model
-
30705204409 Red LH Front Side Protector Tube. Red Cage ModelRed LH Front Side Protector Tube. Red Cage Model
-
30705204816 Blue LH Side Protector Tube. Blue Cage ModelBlue LH Side Protector Tube. Blue Cage Model
-
31705204767 Rear Bumper. Package XDSXRSRear Bumper. Package XDSXRS
-
32705204766 Upper Arm. Package XDSXRSUpper Arm. Package XDSXRS
-
33705203282 Rear Protector. Package XDSXRSRear Protector. Package XDSXRS
-
34250000383 Torx Screw M8 X 60, Scotch Grip. Package XDSXRSTorx Screw M8 X 60, Scotch Grip. Package XDSXRS
-
35708300563 Washer. Package XDSXRSWasher. Package XDSXRS
-
36233281464 Elastic Flange Nut M8. Package XDSXRSElastic Flange Nut M8. Package XDSXRS
-
37233201416 Hex. Flanged Elastic Nut M10. Package XDSXRSHex. Flanged Elastic Nut M10. Package XDSXRS
-
38207609046 Screw-Hex Flange M10 X 90. Package XDSXRSScrew-Hex Flange M10 X 90. Package XDSXRS
-
39250000234 Torx Screw M6 X 20, Stainless. Package XDSXRSTorx Screw M6 X 20, Stainless. Package XDSXRS
-
40233261494 Hex. Elastic Flanged Nut M6. Package XDSXRSHex. Elastic Flanged Nut M6. Package XDSXRS
-
41250000761 Torx Truss Screw M8 X 50. Package XDSXRSTorx Truss Screw M8 X 50. Package XDSXRS
-
42234082410 Flat Washer 8 mm. Package XDSXRSFlat Washer 8 mm. Package XDSXRS
-
43233281464 Elastic Flange Nut M8. Package XDSXRSElastic Flange Nut M8. Package XDSXRS
-
44233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
45250200154 WasherWasher
