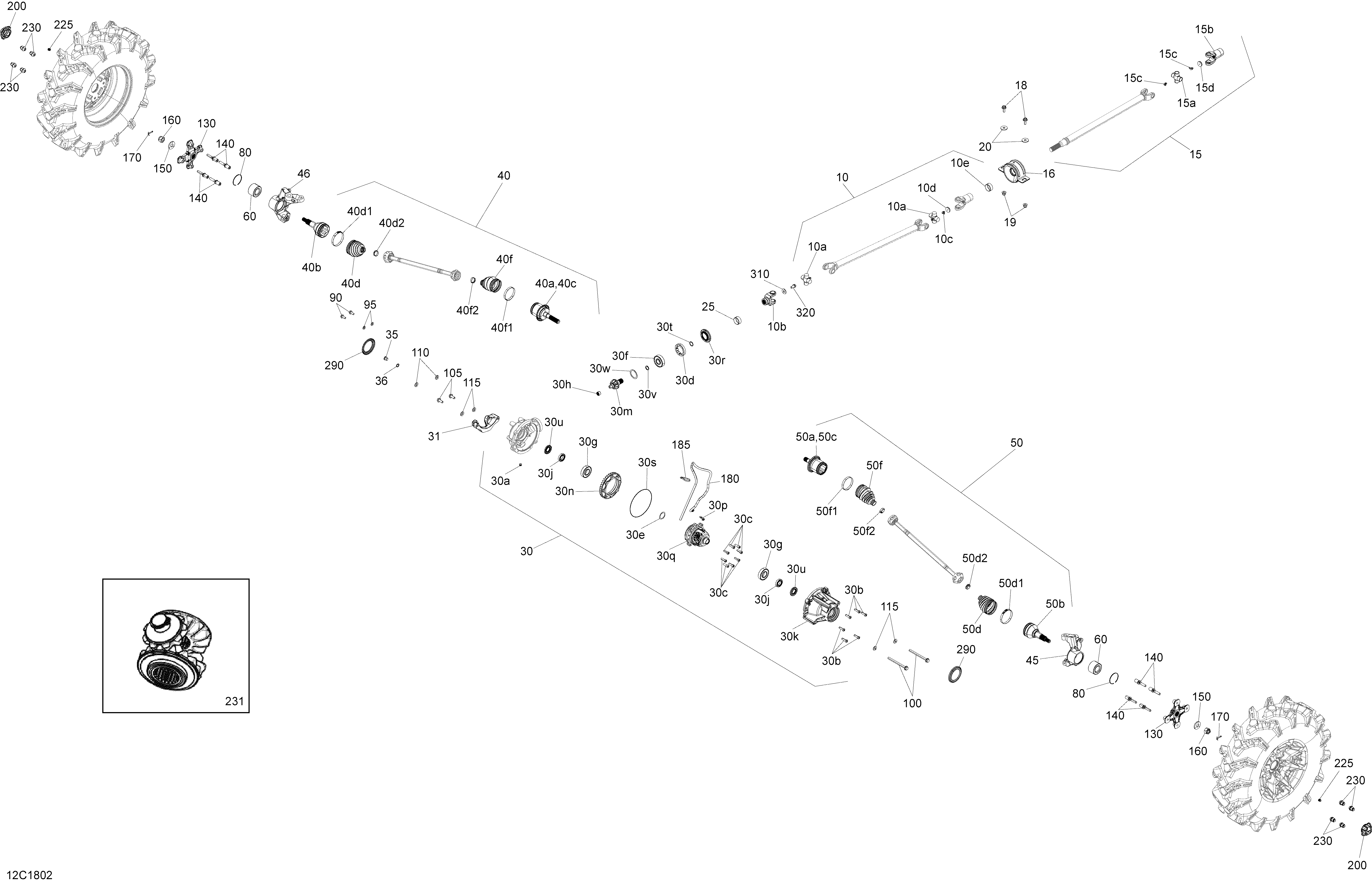

07- Front Drive - Maverick для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
10>10b703500993 Shaft Ass'y Kit. Includes 10 to 10eShaft Ass'y Kit. Includes 10 to 10e
-
10a715900435 U-Joint Cross KitU-Joint Cross Kit
-
10b715900231 Yoke JointYoke Joint
-
10c703500815 Grease FittingGrease Fitting
-
10d715900483 CoverCover
-
10e705400036 Wear RingWear Ring
-
15>15d705402041 Drive Axle Ass'y . MAX Models. Includes 15 to 15dDrive Axle Ass'y . MAX Models. Includes 15 to 15d
-
15a715900435 U-Joint Cross Kit. MAX ModelsU-Joint Cross Kit. MAX Models
-
15b715900231 Yoke Joint. MAX ModelsYoke Joint. MAX Models
-
15c703500815 Grease Fitting. MAX ModelsGrease Fitting. MAX Models
-
15d715900483 Cover. MAX ModelsCover. MAX Models
-
16705401646 Ball Bearing. MAX ModelsBall Bearing. MAX Models
-
18207602544 Hex. Flanged Screw M10 X 25. MAX ModelsHex. Flanged Screw M10 X 25. MAX Models
-
19233201414 Hex. Flanged Elastic Nut M10. MAX ModelsHex. Flanged Elastic Nut M10. MAX Models
-
20503032900 Washer. MAX ModelsWasher. MAX Models
-
30>30w703500907 Front Differential. Package XC. Includes 30 to 30wFront Differential. Package XC. Includes 30 to 30w
-
30>30w703500908 Front Differential. Package XMR. Includes 30 to 30wFront Differential. Package XMR. Includes 30 to 30w
-
30>30w703500908 Front Differential. Package XXC. Includes 30 to 30wFront Differential. Package XXC. Includes 30 to 30w
-
30>30w703500908 Front Differential. Package XCDPS. Includes 30 to 30wFront Differential. Package XCDPS. Includes 30 to 30w
-
30>30w703500908 Front Differential. Package DPS. Includes 30 to 30wFront Differential. Package DPS. Includes 30 to 30w
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30k705401610 Front CoverFront Cover
-
30m705401791 Pinion 10 TeethPinion 10 Teeth
-
30n705401612 Gear 36 TeethGear 36 Teeth
-
30p705401613 Vent ValveVent Valve
-
30q705401614 Differential. Package XCDifferential. Package XC
-
30q705401506 Differential. Package XMRDifferential. Package XMR
-
30q705401506 Differential. Package XXCDifferential. Package XXC
-
30q705401506 Differential. Package XCDPSDifferential. Package XCDPS
-
30q705401506 Differential. Package DPSDifferential. Package DPS
-
30r705401615 Oil SealOil Seal
-
30s705401616 SealSeal
-
30t705401617 O'RingO'Ring
-
30u705401618 GasketGasket
-
30v705401769 ShimShim
-
30w705401770 ShimShim
-
31705401600 SupportSupport
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40>40f2705401874 CV Joint RH. Package DPS. Includes 40 to 40f2CV Joint RH. Package DPS. Includes 40 to 40f2
-
40>40f2705401876 CV Joint RH. Package XCDPS. Includes 40 to 40f2CV Joint RH. Package XCDPS. Includes 40 to 40f2
-
40>40f2705401876 CV Joint RH. Package XC. Includes 40 to 40f2CV Joint RH. Package XC. Includes 40 to 40f2
-
40>40f2705401876 CV Joint RH. Package XXC. Includes 40 to 40f2CV Joint RH. Package XXC. Includes 40 to 40f2
-
40>40f2705401878 CV Joint RH. Package XMR. Includes 40 to 40f2CV Joint RH. Package XMR. Includes 40 to 40f2
-
40a715900395 RH Plunging CV Joint. All Package Except XMRRH Plunging CV Joint. All Package Except XMR
-
40a715900395 RH Plunging CV Joint. Package XMRRH Plunging CV Joint. Package XMR
-
40b715900428 CV Joint. All Package Except XMRCV Joint. All Package Except XMR
-
40b715900428 CV Joint. Package XMRCV Joint. Package XMR
-
40c705401349 Circlip Joint. All Package Except XMRCirclip Joint. All Package Except XMR
-
40c705401349 Circlip Joint. Package XMRCirclip Joint. Package XMR
-
40d705401354 Boot Kit, Wheel Side. All Package Except XMRBoot Kit, Wheel Side. All Package Except XMR
-
40d705401354 Boot Kit, Wheel Side. Package XMRBoot Kit, Wheel Side. Package XMR
-
40d1715900260 Oetiker Clamp, Large. All Package Except XMROetiker Clamp, Large. All Package Except XMR
-
40d1715900260 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
40d2715900261 Oetiker Clamp, Small. All Package Except XMROetiker Clamp, Small. All Package Except XMR
-
40d2715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
40f705401346 Boot Kit, Differential Side. All Package Except XMRBoot Kit, Differential Side. All Package Except XMR
-
40f705401355 Boot Kit, Differential Side. Package XMRBoot Kit, Differential Side. Package XMR
-
40f1715900284 Oetiker Clamp, Large. All Package Except XMROetiker Clamp, Large. All Package Except XMR
-
40f1715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
40f2715900261 Oetiker Clamp, Small. All Package Except XMROetiker Clamp, Small. All Package Except XMR
-
40f2715900262 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
45705401548 LH Front KnuckleLH Front Knuckle
-
46705401549 RH Front KnuckleRH Front Knuckle
-
50>50f2705401873 CV Joint LH. Package DPS. Includes 50 to 50f2CV Joint LH. Package DPS. Includes 50 to 50f2
-
50>50f2705401875 CV Joint LH. Package XXC. Includes 50 to 50f2CV Joint LH. Package XXC. Includes 50 to 50f2
-
50>50f2705401875 CV Joint LH. Package XCDPS. Includes 50 to 50f2CV Joint LH. Package XCDPS. Includes 50 to 50f2
-
50>50f2705401875 CV Joint LH. Package XC. Includes 50 to 50f2CV Joint LH. Package XC. Includes 50 to 50f2
-
50>50f2705401877 CV Joint LH. Package XMR. Includes 50 to 50f2CV Joint LH. Package XMR. Includes 50 to 50f2
-
50a715900430 LH Plunging Joint. All Package Except XMRLH Plunging Joint. All Package Except XMR
-
50a715900396 LH Plunging CV Joint. Package XMRLH Plunging CV Joint. Package XMR
-
50b715900427 CV Joint. All Package Except XMRCV Joint. All Package Except XMR
-
50b715900428 CV Joint. Package XMRCV Joint. Package XMR
-
50c705401349 Circlip Joint. All PackageCirclip Joint. All Package
-
50d705401345 Boot Kit, Wheel Side. All Package Except XMRBoot Kit, Wheel Side. All Package Except XMR
-
50d705401354 Boot Kit, Wheel Side. Package XMRBoot Kit, Wheel Side. Package XMR
-
50d1715900282 Oetiker Clamp, Large. All Package Except XMROetiker Clamp, Large. All Package Except XMR
-
50d1715900260 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
50d2715900283 Oetiker Clamp, Small. All Package Except XMROetiker Clamp, Small. All Package Except XMR
-
50d2715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
50f705401346 Boot Kit, Differential Side. All Package Except XMRBoot Kit, Differential Side. All Package Except XMR
-
50f705401355 Boot Kit, Differential Side. Package XMRBoot Kit, Differential Side. Package XMR
-
50f1715900284 Oetiker Clamp, Large. All Package Except XMROetiker Clamp, Large. All Package Except XMR
-
50f1715900261 Oetiker Clamp, Small. Package XMROetiker Clamp, Small. Package XMR
-
50f2715900261 Oetiker Clamp, Small. All Package Except XMROetiker Clamp, Small. All Package Except XMR
-
50f2715900262 Oetiker Clamp, Large. Package XMROetiker Clamp, Large. Package XMR
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
90207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
95234281474 Conical Spring Washer M8Conical Spring Washer M8
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
105207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
110250200014 Flat Washer M10Flat Washer M10
-
115234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
130705501900 Wheel HubWheel Hub
-
140250300060 Wheel StudWheel Stud
-
150250200171 Conical Spring Washer M18Conical Spring Washer M18
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
185414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
200705400928 Wheel Cap. All Package Except XMRWheel Cap. All Package Except XMR
-
200705401541 Wheel Cap. Package XMRWheel Cap. Package XMR
-
225293000110 Valve CapValve Cap
-
230250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
231703501006 Side Gear KitSide Gear Kit
-
290705400780 Wear Sleeve. All Package Except DPSWear Sleeve. All Package Except DPS
-
310250200014 Flat Washer M10Flat Washer M10
-
320250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
